416 / 1645

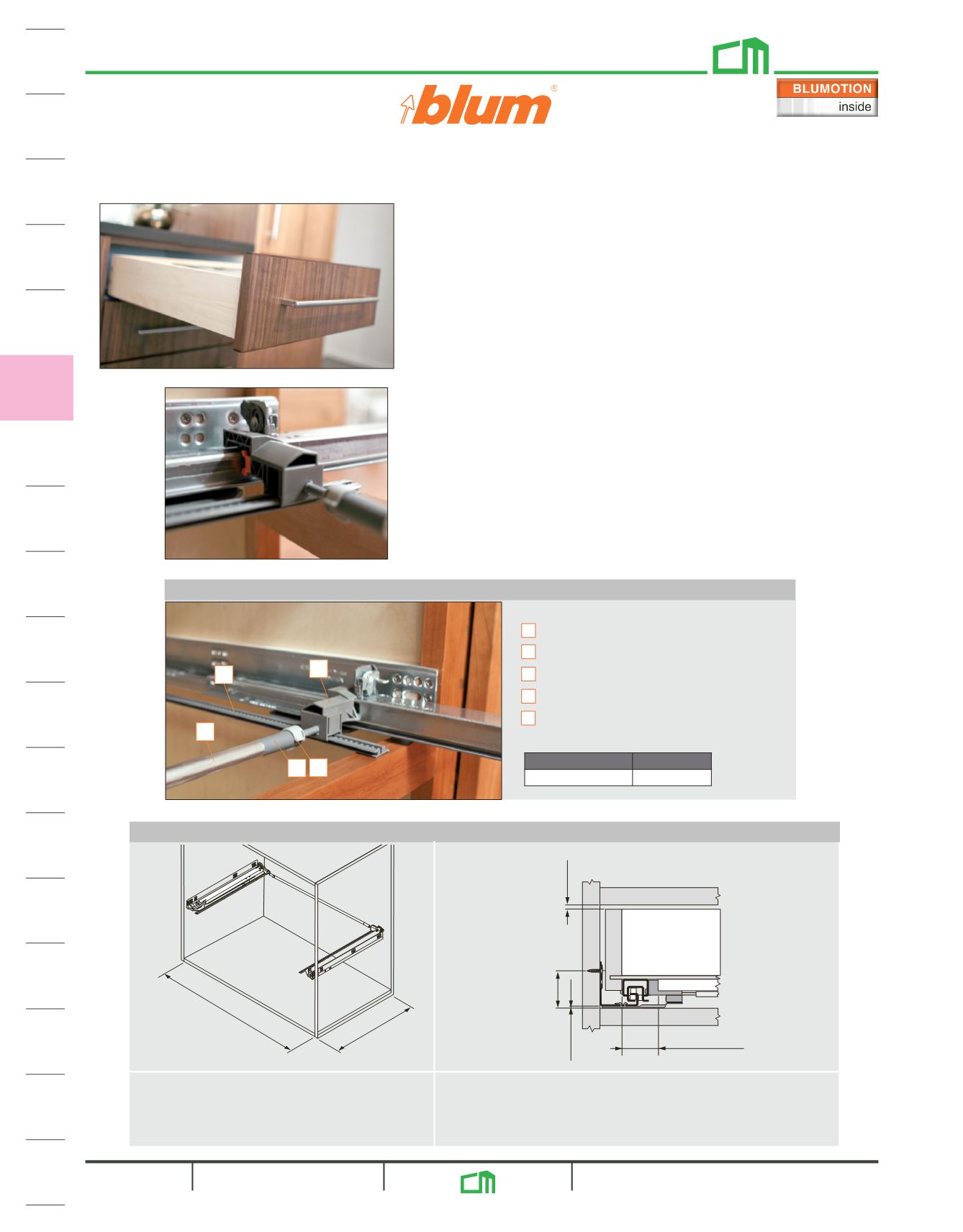

TANDEM plus BLUMOTION 563
Lateral Stabilizer for Wide Drawers
Description
• Increases lateral stability
• Synchronizes left and right runners to prevent drawer racking
• Ideal for wide applications using TANDEM 563 series
• Does not increase load capacity
6
(1/4")
min.
3
(1/8")
min.
40
(1-9/16")
min.
35
(1-3/8") min.
inside cabinet depth
opening width
4 5
1
2
3
1
Pinion housing (qty 2)
2
Gear rack with locating tabs (qty 2)
3
Linkage rod, length 1054 (41-1/2")
4
Pinion adapter (qty 2)
5
Locking clip (qty 2)
Installation instructions
Set No.
List Set
BZST.686TU01$70.82
Lateral stabilizer set
Set includes:
NOTE:
TANDEM runners will sit 3 (1/8") higher when using the lateral
stabilizer in bottom mount applications and may have to be raised
for some bottom mount drawer applications using SERVO-DRIVE
Maximum opening width 1352
(53-7/32")
Minimum inside cabinet depth =
setback + runner length + 18 (23/32")
Space requirements
7
(9/32")
Specifications
• Panel and blocked-out face frame applications
229 (9") to 533 (21") length drawers
• Face frame applications with rear attachment
305 (12") to 533 (21") length drawers
• Recommended for opening widths 610 (24") and wider
