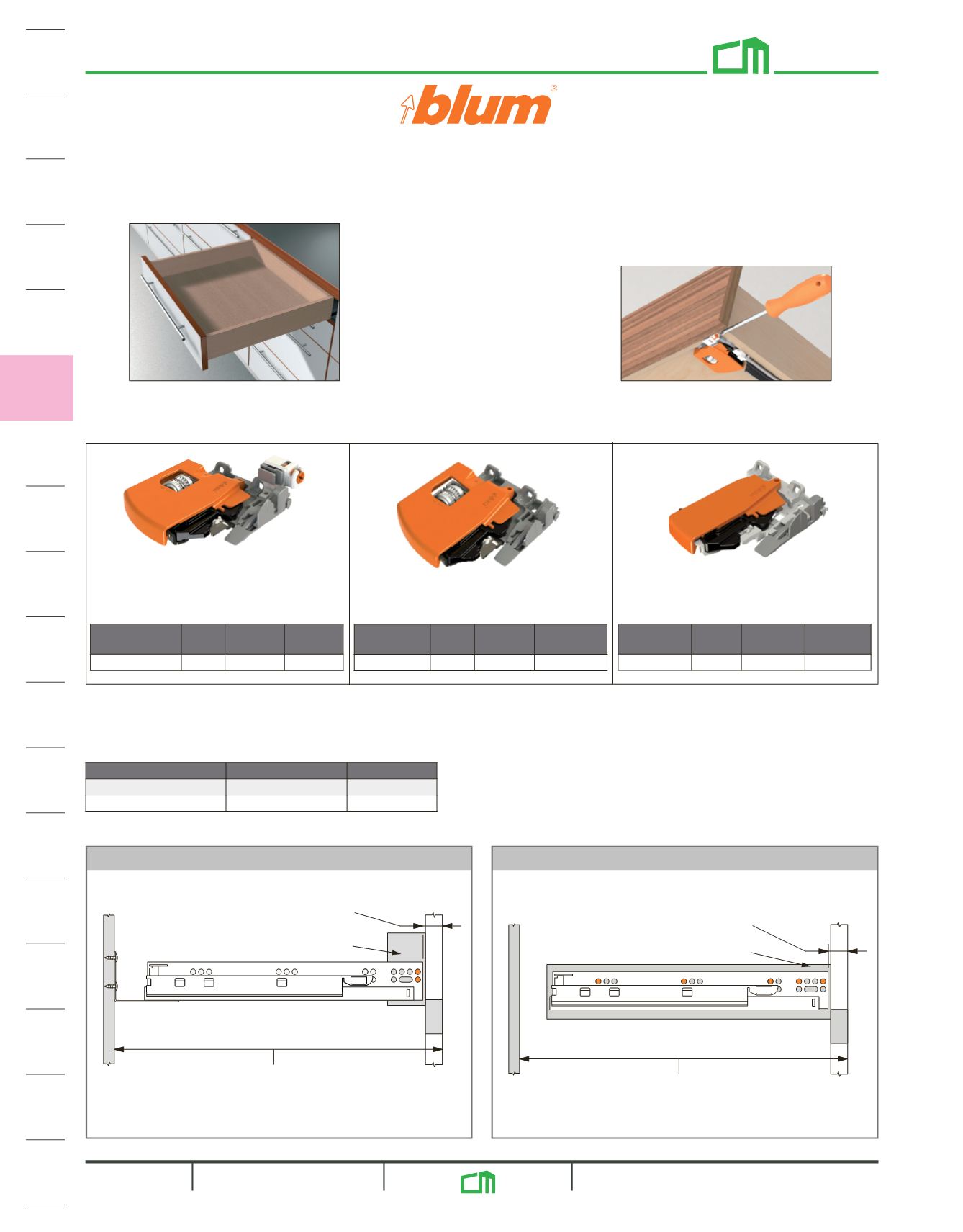

Charles McMurray Co. 2023 Catalog

408 / 1645

Specifications
Description
• Uses the same 563 series runner
• Requires increased setback of the runner
• Frame applications require blocking-out
behind the face frame
Locking Devices
Complete block-out
runner setback
see table on next page
Trial recommended
blocking behind frame
inside cabinet depth
minimum = runner length + setback + 6 (1/4")
Side view
NOTE: Required for 563. (SHORT) series runners
Partial block-out
runner setback
see table on next page
Trial recommended
blocking behind frame
inside cabinet depth range
minimum = runner length + setback + 6 (1/4")
maximum with bracket = runner length + setback + 48 (1-7/8")
Side view
NOTE: Only for 563 H and F series runners
Height adjustment +3mm (1/8")
Side adjustment ±1.5mm (1/16")
Item No. Box List Pair
List Pair
Full Box
100 pr $7.96 $6.76
Height adjustment +3mm (1/8")
Item No. Box List Pair
List Pair
Full Box
100 pr $4.04 $3.84
Height adjustment: 3mm (1/8")
Side-to-side adjustment: ±1.5mm (1/16")
Depth adjustment: +2.5mm (3/32") out;
preset at 0
Item No. Box List Pair
List Pair
Full Box
100 pr $18.00 $15.32
Screws for slides& lockingdevices. Large flathead#6 x 5/8".
Item No. Box List Box
1c $6.16
10c $33.28
TANDEM plus BLUMOTION 563
Inset Drawer Application
