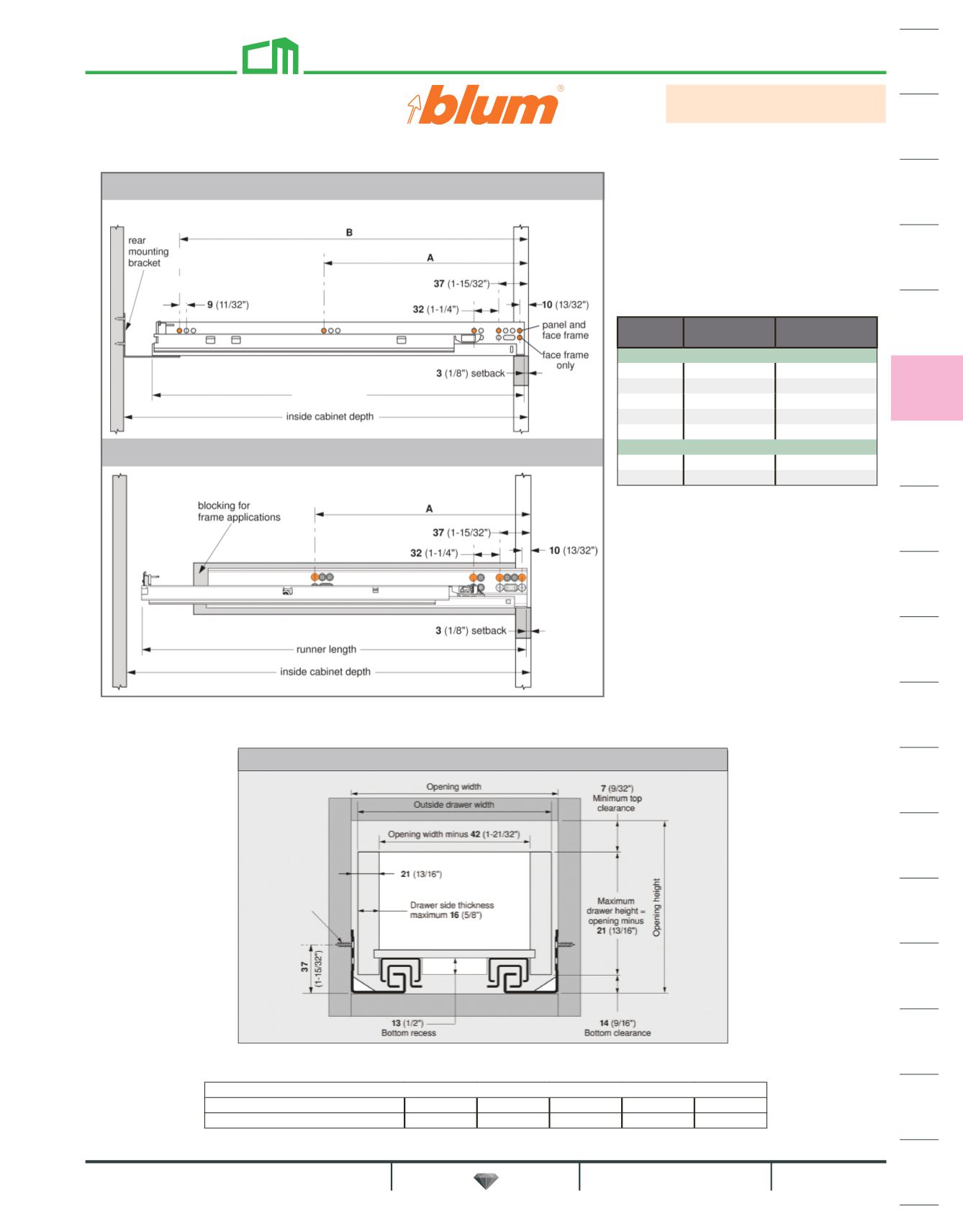

Profile Mounting Specifications for B563H
TANDEM plus BLUMOTION 563H & 563. (SHORT) Drawer and Cabinet Specifications
profile length
NOTE:
The orange dots indicate fixing screw locations required to meet specified load ratings.
Drawer Box Specifications
NOTE:
Material thickness may vary. Inside drawer width must equal opening width
minus 42 (1-21/32") for TANDEM to align and run properly.
Front view
Side View
Profile Mounting Specifications for 563. (SHORT)
Side View
system or #6FH
wood screw
Screw locations for Panel Cabinets
Drawer
Length
A
B
563H Series
229 (9") 133 (5-1/4") 229 (9")
305 (12") 165 (6-1/2") 261 (10-9/32")
381 (15") 165 (6-1/2") 357 (14-1/16")
457 (18") 261 (10-9/32") 453 (17-27/32")
533 (21") 261 (10-9/32") 517 (20-11/32")
563. (SHORT) Series
457 (18") 261 (10-9/32")
533 (21") 261 (10-9/32")
Example: For 21" inside cabinet width and a 5/8" thick drawer: 21" minus 13/32" = 20-19/32" drawer width
Formula for calculating outside drawer width
For drawer side thickness 16 (5/8") 15 (19/32") 14 (9/16") 13 (1/2") 12 (15/32")
Deduct from inside cabinet width 10 (13/32") 12 (15/32") 14 (9/16") 16 (5/8") 18 (23/32")
For complete specifications order Blum
Tandem catalog: B-TANDEM563/569
