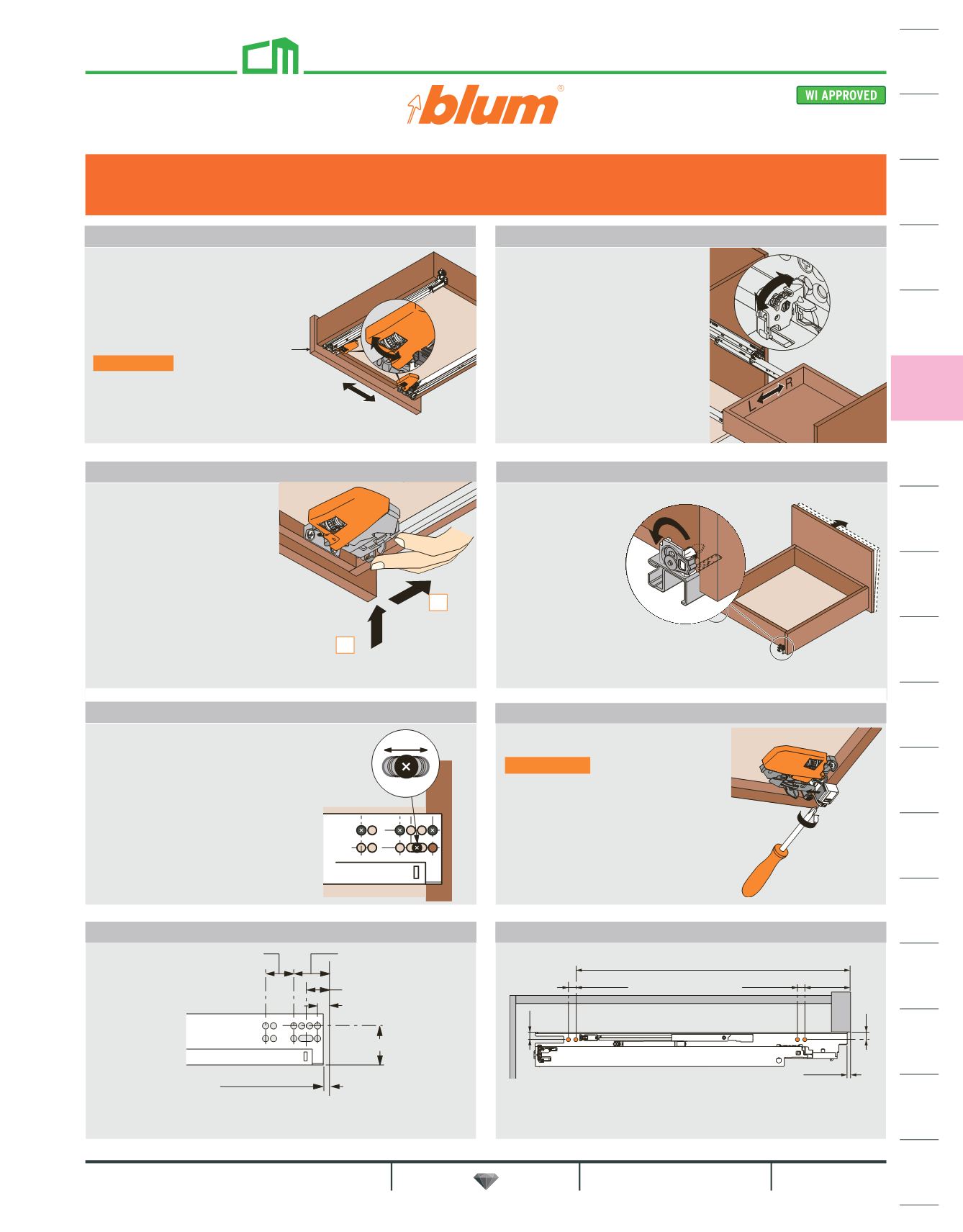

Profile setback Bottom mounting option
TANDEM plus BLUMOTION 563 Series
General Specifications
Tilt adjustment
Depth adjustment on runner
Height adjustment
Rear side adjustment Front side adjustment
2. After front side adjustment is
made with the locking devices,
rotate the rear side adjustment
left or right to re-align the back
of the drawer box with the front.
Drawer back moves in the same
direction as rotation.
1. Rotate side adjustment
left or right equally on both
locking devices. Drawer front
moves in the same direction
as rotation.
with side adjustment
Maximum 1.5 (1/16") to left or right (tool-free) Maximum 1.5 (1/16") to left or
right (tool-free)
Rotate the tilt adjustment
lever on the rear of each
runner to tilt the top
of the drawer front
forward.
1.Press up on adjustment tab
2.Push towards back of
drawer
Maximum 5 (3/16") rise of drawer back (tool-free)
Maximum 3 (1/8") rise of
drawer front (tool-free)
TANDEM 563 runners feature elongated
holes that allow ± 4.5 (3/16") depth
adjustment.
Turning the adjustment screw allows
for up to 2.5 (3/32") out adjustment.
Locking device
with side, height and
depth adjustment
32 (1-1/4") 37 (1-15/32")
10 (13/32")
37 (1-15/32")
setback 3 (1/8")
23.5 (15/16")
NOTE: Side adjustment not available on T51.x8xx locking devices
NOTE: Height adjustment available on all TANDEM locking devices
Available on 15", 18" and 21" 563H and 563F and all 563. runners.
3 (1/8")
X
67 (2-5/8") 9 (11/32")
Y Z
9 (11/32")
R
L
R
L
drawer
front
L
R
1
2
Side view
Depth adjustable locking device
NOTE: Hole locations to the face of the cabinet stay the same.
For inset applications see pages 414-415.
