Drawer Back Preparation

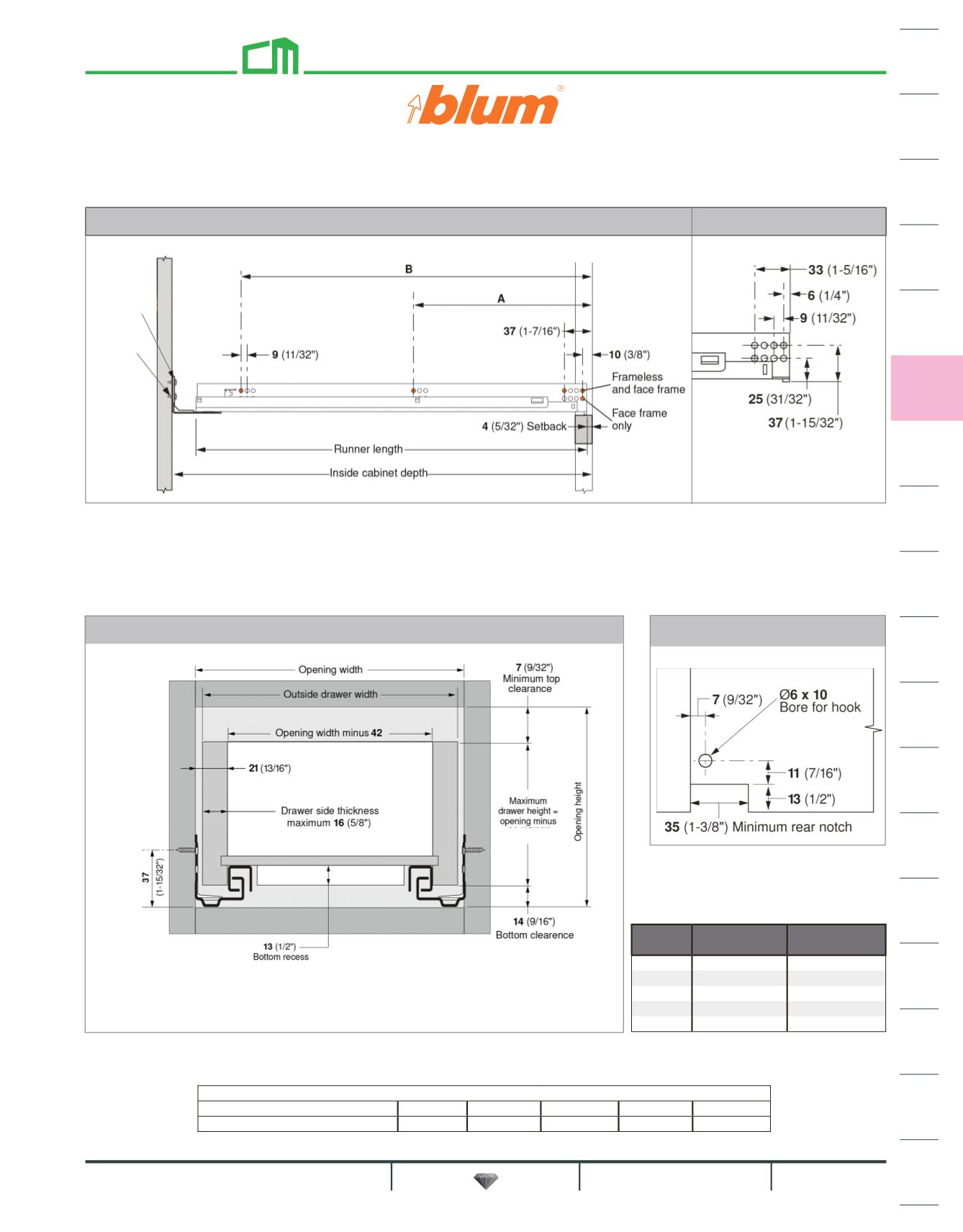

Profile Mounting Specifications
Drawer & Box Specifications
Profile Close-Up
Screw locations for Frameless Cabinets
Drawer
Length
A
B
229 (9") 133 (5-1/4")
229 (9")
305 (12") 165 (6-1/2")
261 (10-9/32")
381 (15") 165 (6-1/2")
357 (14-1/16")
457 (18") 261 (10-9/32") 453 (17-27/32")
533 (21") 261 (10-9/32") 517 (20-11/32")
Example: For 21" inside cabinet width and a 5/8" thick drawer: 21" minus 13/32" = 20-19/32" drawer width
Formula for calculating outside drawer width
For drawer side thickness 12 (15/32") 13 (1/2") 14 (9/16") 15 (19/32") 16 (5/8")
Deduct from inside cabinet width 18 (23/32") 16 (5/8") 14 (9/16") 12 (15/32") 10 (13/32")
rear mounting
bracket B2953750
B612TH
screw
Rear view
NOTE:
The orange dots indicate fixing screw locations required to meet specified load ratings.
Front view
Side View
NOTE:
Drawer side material thickness may vary. Accurate measurement of drawer side
material thickness should be used when calculating outside drawer width using the table
below. Inside drawer width
must
equal opening width minus 42 (1-21/32") for TANDEM to
align and function optimally.
TANDEM edge BLUMOTION 554H Drawer Slides
