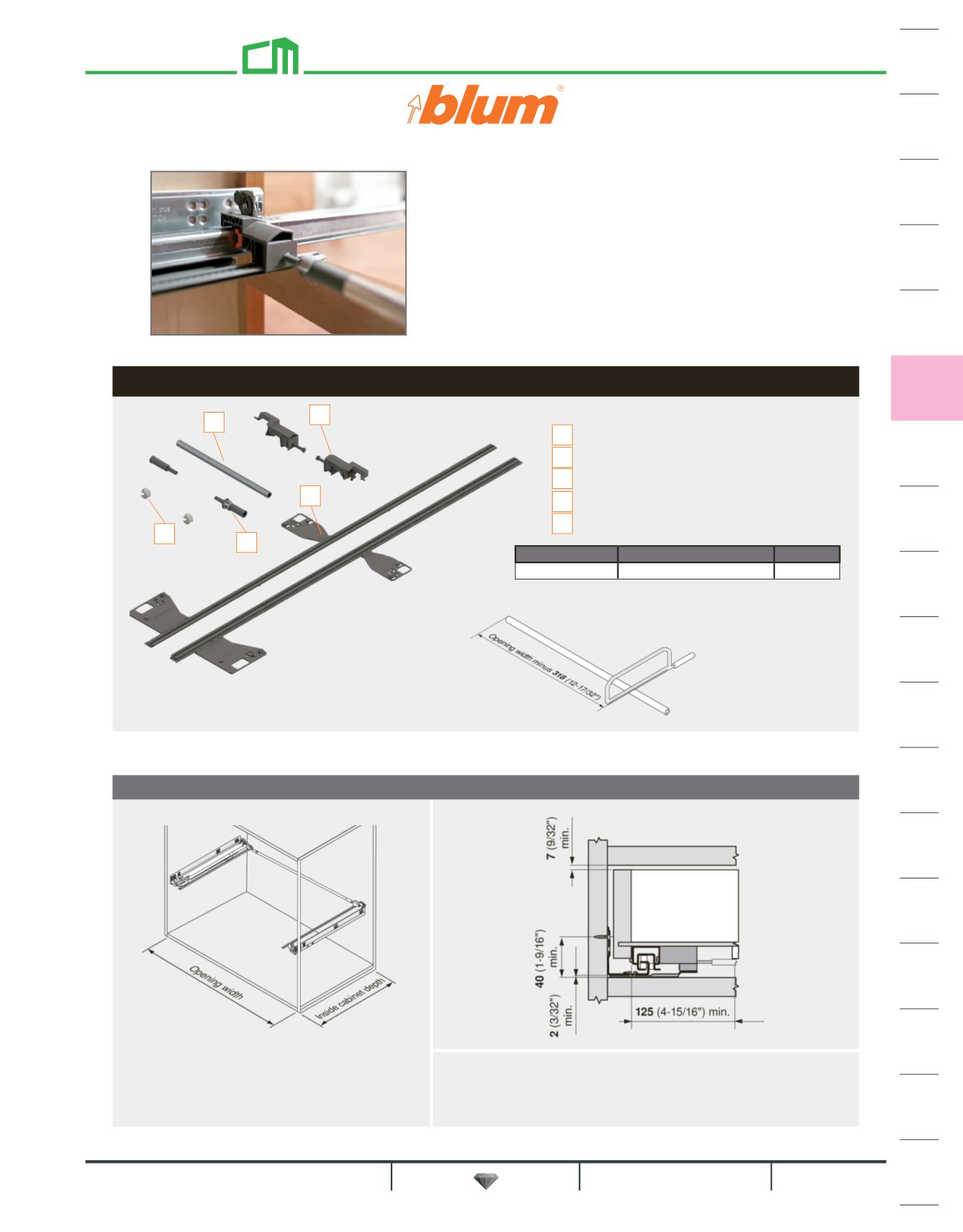

Lateral Stabilizer for MOVENTO 763/769
Set includes:
1 Pinion housing (qty 2)
2 Gear rack with locating tabs (qty 2)
3 Linkage rod, 1501 (41-3/8") cut-to-size
4 Pinion adapter (qty 2)
5 Locking clip (qty 2)
Lateral Stabilizer Set
Linkage rod specifications:
Length = inside cabinet width minus 318 (12-17/32")
1
2
3
4 5
• Increases lateral stability
• Synchronizes left and right runners to prevent drawer racking
• Ideal for wide applications using MOVENTO
• Does not increase load capacity
Specifications
• Frameless and blocked-out face frame applications
305 (12") to 610 (24") length drawers
• Recommended for opening widths 610 (24") and wider
Item No. Runner Length List Set
305 (12") to 610 (24") $75.16
NOTE: MOVENTO runners will sit 2 (3/32") higher when using the lateral
stabilizer in bottommount applications and may have to be raised for some
bottom mount drawer applications using SERVO-DRIVE.
• Maximum opening width 1369 (53-29/32")
• Minimum inside cabinet depth =
setback + runner length + 18 (23/32")
Space Requirements
