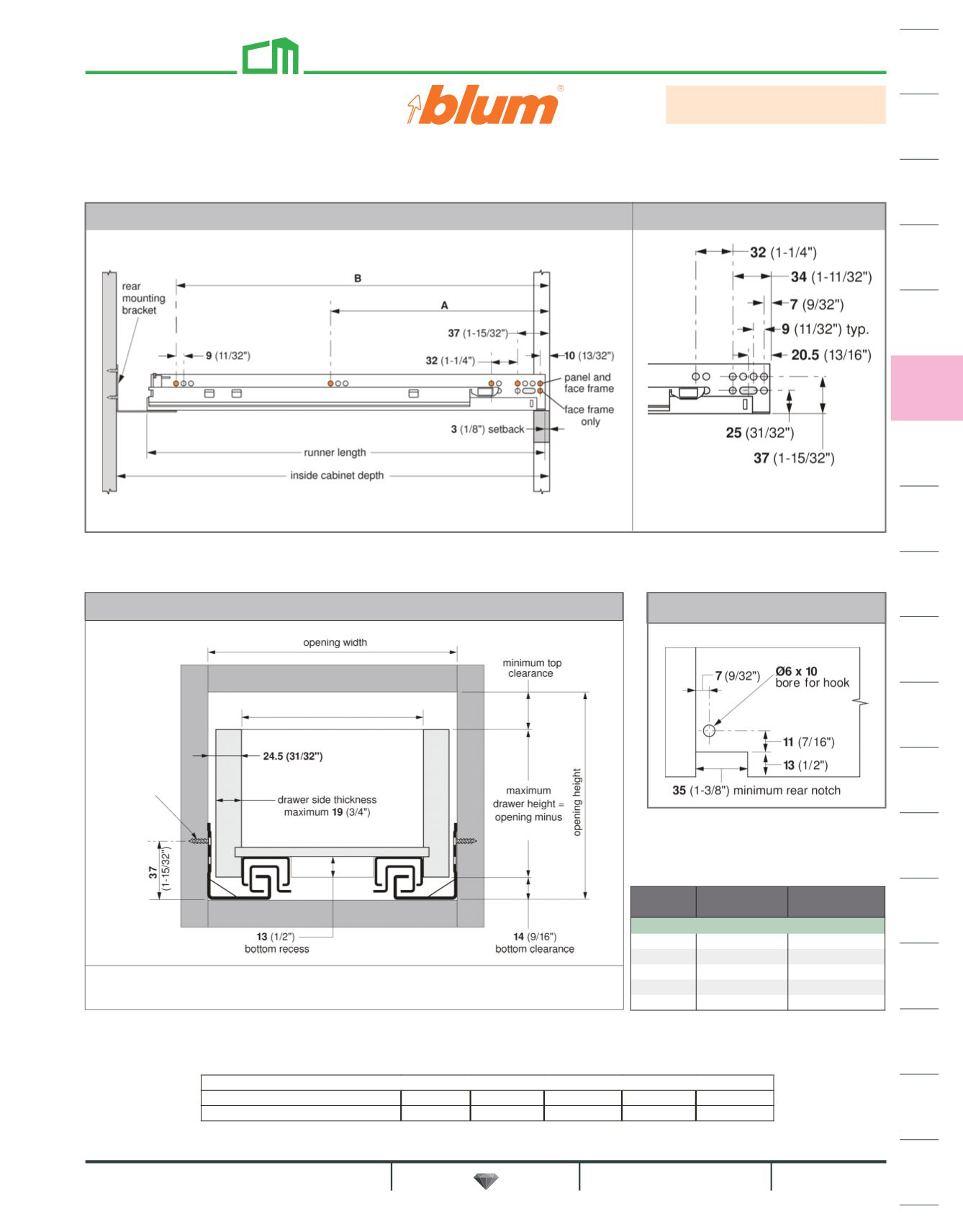

Drawer Back Preparation
Rear view
Profile Mounting Specifications
TANDEM plus BLUMOTION 563F Drawer and Cabinet Specifications
NOTE:
The orange dots indicate fixing screw locations required to meet specified load ratings.
Drawer & Box Specifications
NOTE:
Material thickness may vary. Inside drawer width must equal opening width
minus 49 (1-15/16") for TANDEM to align and run properly.
Front view
Side View
Profile Close-Up
NOTE:
Elongated holes are for ±4.5
(3/16") depth adjustment only. Additional
screws must be used to secure the runner
to the cabinet.
system or #6FH
wood screw
Screw locations for Panel Cabinets
Drawer
Length
A
B
563F Series
229 (9") 133 (5-1/4") 229 (9")
305 (12") 165 (6-1/2") 261 (10-9/32")
381 (15") 165 (6-1/2") 357 (14-1/16")
457 (18") 261 (10-9/32") 453 (17-27/32")
533 (21") 261 (10-9/32") 517 (20-11/32")
20
(25/32")
opening width minus 49 (1-15/16")
Example: For 21" inside cabinet width and a 3/4" thick drawer: 21" minus 7/16" = 20-9/16" drawer width
Formula for calculating outside drawer width
For drawer side thickness 19 (3/4") 18 (23/32") 17 (21/32") 16 (5/8") 15 (19/32")
Deduct from inside cabinet width 11 (7/16") 13 (1/2") 15 (19/32") 17 (21/32") 19 (3/4")
1
13 16
7
(9/32")
For complete specifications order Blum
Tandem catalog: B-TANDEM563/569
