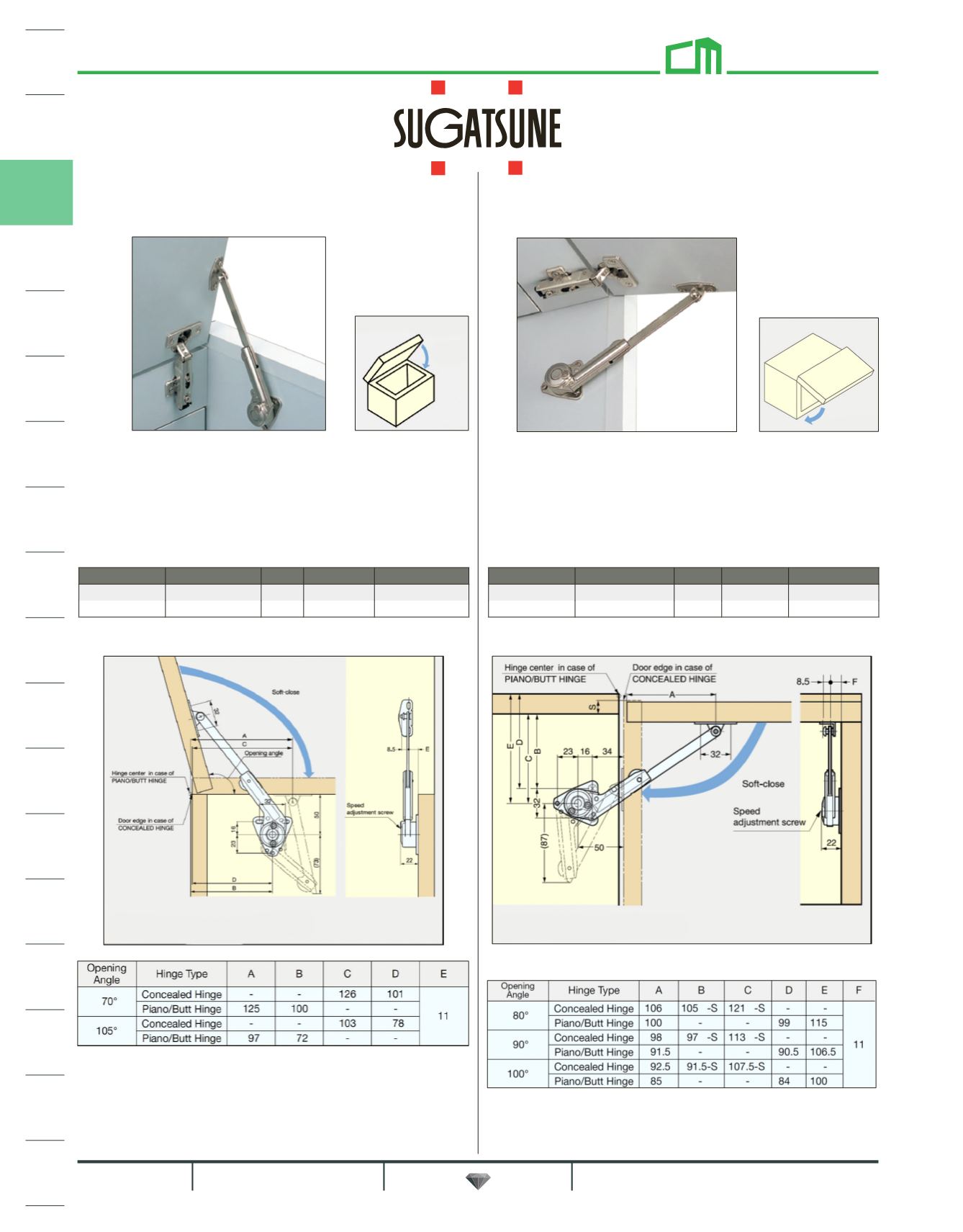

Charles McMurray Co. 2021 Catalog

322 / 1590

• For top-opening lids with piano, butt or concealed hinges
• Opening angle 70° or 105°
• Holds door in fully opened position
• Speed adjustment screw located on front for easy adjustment
• Torque Calculation :
Torque = Door Height × 1/2 × Door Weight
Per Piece: 19-60 lbs./inch
Per Pair: 38-120 lbs./inch
Lapcon Adjustable Soft-Down Lid Stay
For Top-Opening Lids
Item No. Description Box List Ea. List Ea. 20
Left Hand 20 $44.50 $36.32
Right Hand 20 $44.50 $36.32
hinge not
included
Lapcon Adjustable Soft-Down Lid Stay
For Upward-Opening Lids
• For upward-opening doors with piano, butt or concealed hinges
• Opening angle 80°, 90° or 100°
• Holds door in fully opened position
• Speed adjustment screw located on front for easy adjustment
• Torque Calculation :
Torque = Door Height × 1/2 × Door Weight
Per Piece: 19-60 lbs./inch
Per Pair: 38-120 lbs./inch
Item No. Description Box List Ea. List Ea. 20
Left Hand 20 $44.50 $36.32
Right Hand 20 $44.50 $36.32
80° to 100°
hinge not included
This drawing shows (right-hand side mounting).
(left-hand) is symmetrical.
This drawing shows (right-hand side mounting).
(left-hand) is symmetrical.
Note: "S" dimension is the overlay coverage for concealed hinge(s).
70° or 105°
soft-close
soft-
close
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
AVENTOS & LIFTS
800.533.0533 2021 1946 322 Prices subject to change without notice.
