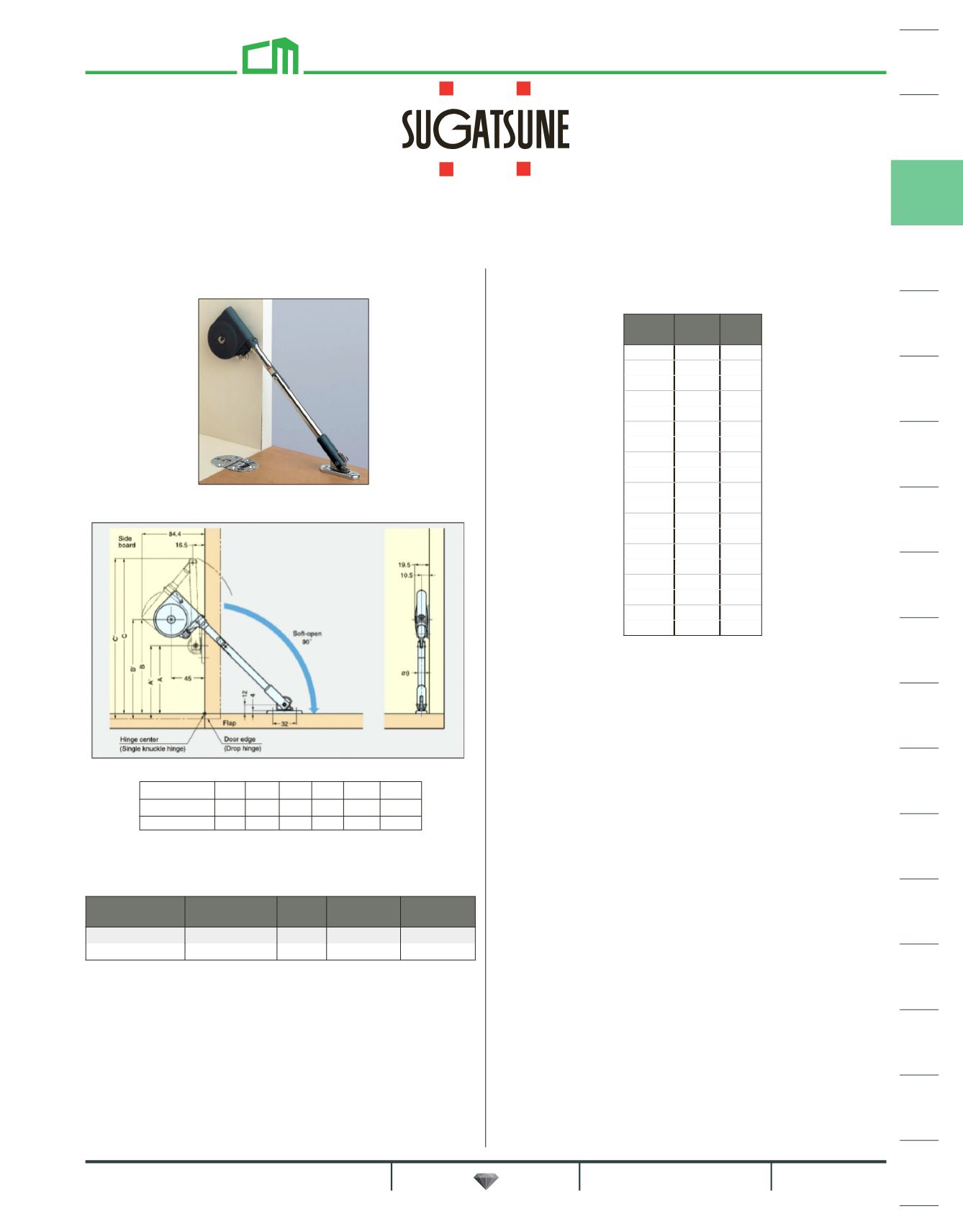

Soft Down Stays (SDS)
Designed for sophisticated furniture, this unique soft down stay of nickel-plated
steel and plastic construction gives the feel of luxury in its operation.
90° Downward
For use with single-knuckle hinges and drop hinges. Includes
catch mechanism. For downward-opening flaps like those found
on bureaus. Recommended door thickness: 20mm (25/32").
Item No. Plastic Color Box List Ea.
List Ea.
20
Black 20 ea $43.80 $35.76
White 20 ea $43.80 $35.76
Hinge Type A A' B B' C C'
Single Knuckle 100 - 135 - 218 -
Drop Hinge - 107 - 142 - 225
Door
Height Min. Max
8 15.0 21.5
9 13.3 19.1
10 12.0 17.2
11 10.9 15.6
12 10.0 14.3
13 9.2 13.2
14 8.6 12.3
15 8.0 11.5
16 7.5 10.8
17 7.1 10.1
18 6.7 9.6
19 6.3 9.1
20 6.0 8.6
21 5.7 8.2
22 5.5 7.8
23 5.2 7.5
24 5.0 7.2
25 4.8 6.9
26 4.6 6.6
Door Weight Range Table
(per pair, in lbs.)
