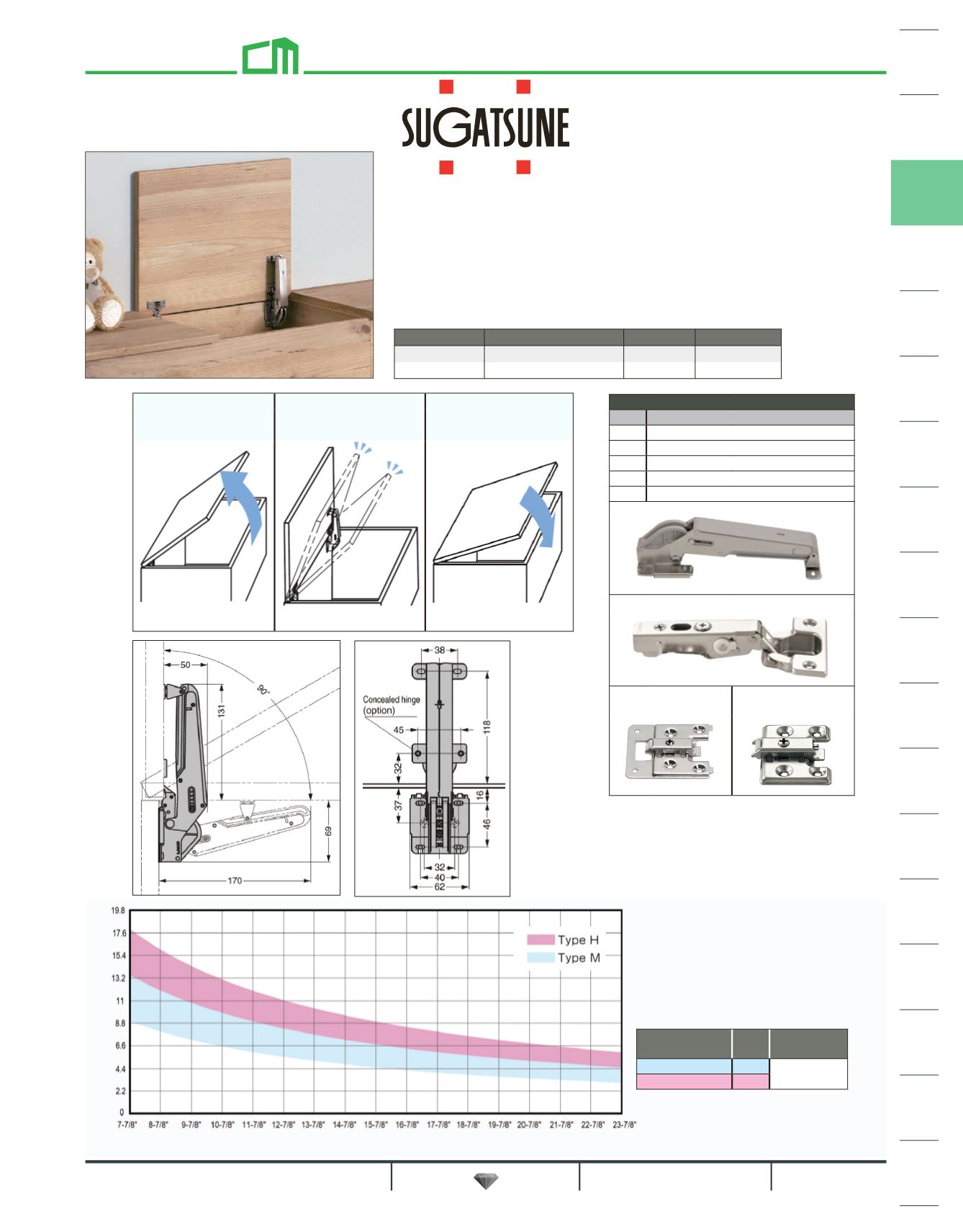

Charles McMurray Co. 2021 Catalog

321 / 1590

• Lift-assist function allows for light opening of doors
• Free-stop function enables doors to hold in position (30°-Max.)
• Soft-close function makes doors close gently (0°-30°)
• Integrated design combines a concealed hinge and lid stay
• Closing speed of doors is adjustable
Item No. Torque Range List Ea. List Ea. 10
53.1 - 70.8 lbs./inch $96.10 $79.78
35.4 - 53.1 lbs./inch $96.10 $79.78
Aileron System Lift-Assist Lid Stays
With Soft-Close, Top Opening
Set Includes (Components for a single door)
Qty Description
1 Aileron
1 Mounting plate for Aileron
2 Olympia concealed hinge
2 Mounting plate for Olympia hinge
16 Screws
Aileron
Olympia concealed hinge
Mounting plate
for Aileron
Mounting plate for
Olympia hinge
Door Weight including handles (lbs.)
Lift-Assist Free-Stop Soft-Close
Allows for light opening
of doors
Enables door to hold in
position (30°-Max.)
Built-in damper makes
doors close slowly
Light opening Holds in position Gentle closing
Refer to graph as a guide for model
selection. Door weight must include all
attached accessories. For doors outside the
scope of the graph, use the calculation below.
Torque (lbs. per inch) =
Door height (") x 0.5 x door weight (lbs.)
Torque Range
(lbs./inch) Type Number ofAILERON
35.4 - 53.1 M 1
53.1 - 70.8 H
Door Height
