• For top-opening flap door used with piano, butt or
concealed hinges
• Designed to hold door in fully opened position
• Used in pairs, sold per each
• Torque Calculation:
Torque = Door Height × 1/2 × Door Weight
H-Type: 217-260 lbs./inch per pair
HDS-20-H Series
Heavy-Duty Soft-Down Lid Stays
Overlay Use Inset Use
Includes screws. Sold per each.
Item No. Handing Box List Ea. List Ea. 40
Black Finish
Left Hand 40 $52.08 $43.72
Right Hand 40 $52.08 $43.72
White Finish
Left Hand 40 $52.08 $43.72
Right Hand 40 $52.08 $43.72

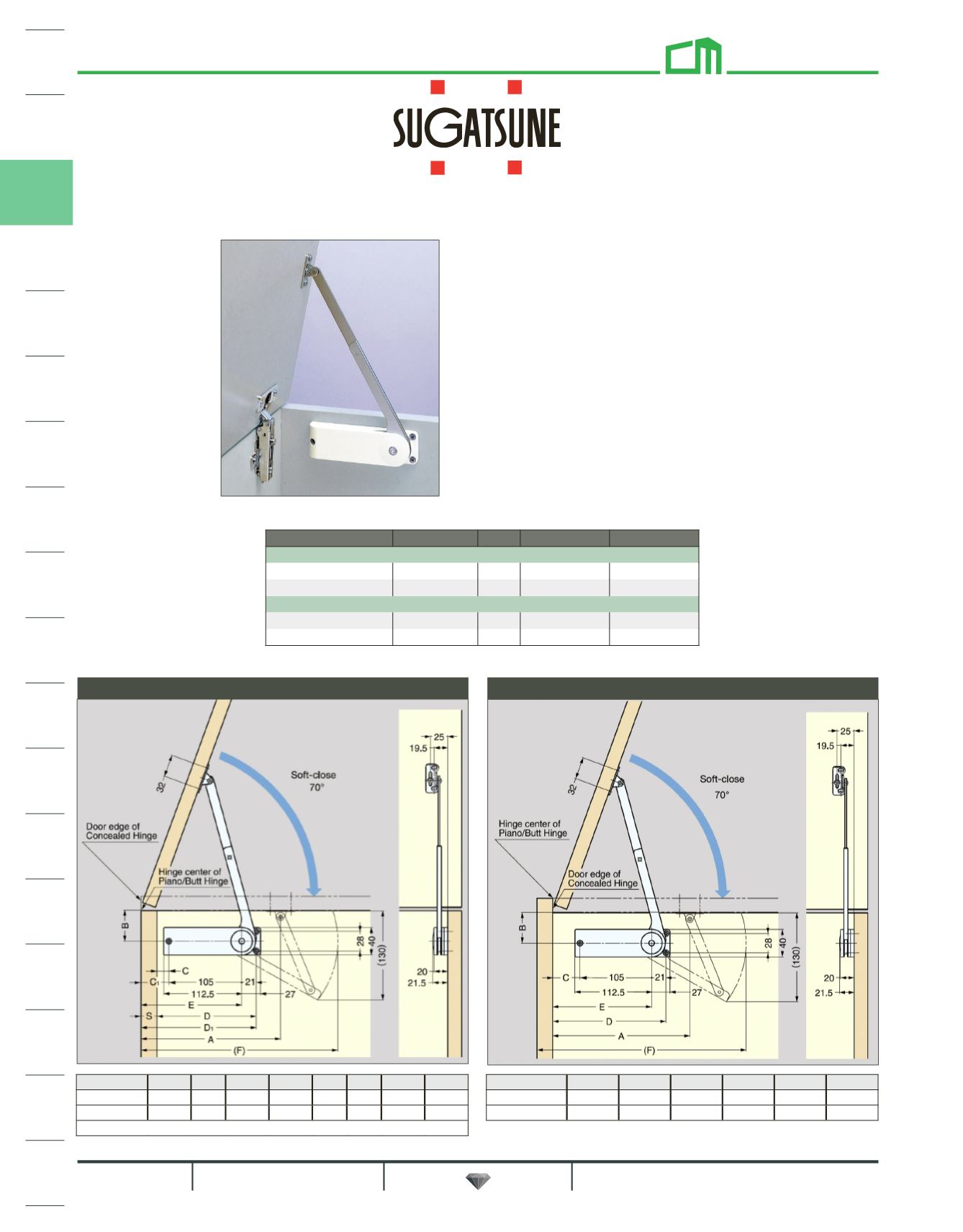

Hinge Type A B C D C1 D1 E F
Concealed 198.5 45 42-S 168-S - - 145.0 283.5
Piano/Butt 198.5 45 - - 41 167 142.5 281.0
S=Overlay coverage in case of concealed hinge (mm).
Hinge Type A B C D E F
Concealed 203 45 46 172 151 286
Piano/Butt 190 45 33 159 138 273
