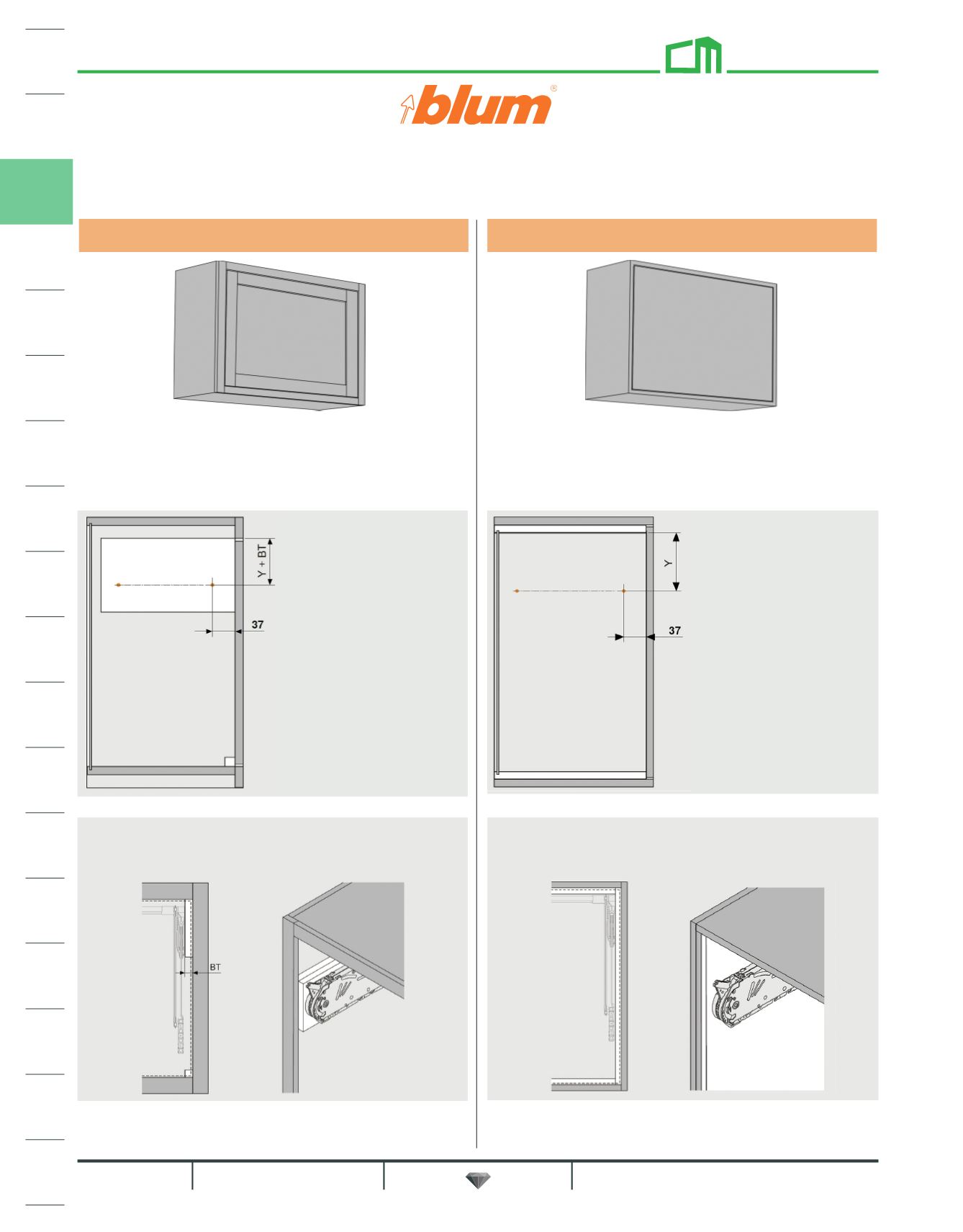

AVENTOS Inset Application
Below are options that can be used for both face frame and panel cabinets.
Panel Inset Application
Face Frame Inset Application
The illustrations below show the idea of blocking-out the interior
of a face frame cabinet to obtain the needed space required for
AVENTOS. By blocking-out the interior of the cabinet to protrude
into the cabinet opening, you have moved the AVENTOS lift
mechanism far enough into the opening for the arm assembly
to clear the frame of the cabinet.
BT = block-out thickness
In this illustration the 37 setback
for the Ø5 x 5 locating pin holes is
measured from the back of the door
(or back edge of face frame). The Y
dimension is the locating pin position
of the selected lift mechanism.
NOTE: Mounting plate position varies
based on block-out thickness used at
top of cabinet.
This illustration shows how the block-out provides the needed clearance
for the lift mechanism and also provides a stopping point for the door.
The illustrations below show the idea of building a cabinet within
a cabinet to obtain the needed space required for AVENTOS. By
either building a smaller cabinet within or adding panels to the
outside of a cabinet, you have made it possible to simulate the
look of an inset cabinet.
This illustration shows how the interior cabinet is simply an overlay
cabinet that is set back the thickness of the door front and bumper.
This also provides a stopping point for the door.
NOTE:
The top and bottom panels of the inner cabinet are
optional but their intended thickness are needed for calculating
the Y dimensions for the lift mechanism.
In this illustration the 37 setback
for the Ø5 x 5 locating pin holes is
measured from the back of the door
(or front edge of the interior cabinet).
The Y dimension is determined by the
selected AVENTOS lift system.
NOTE: Mounting plate position varies
based on block-out thickness used at
top of cabinet.
