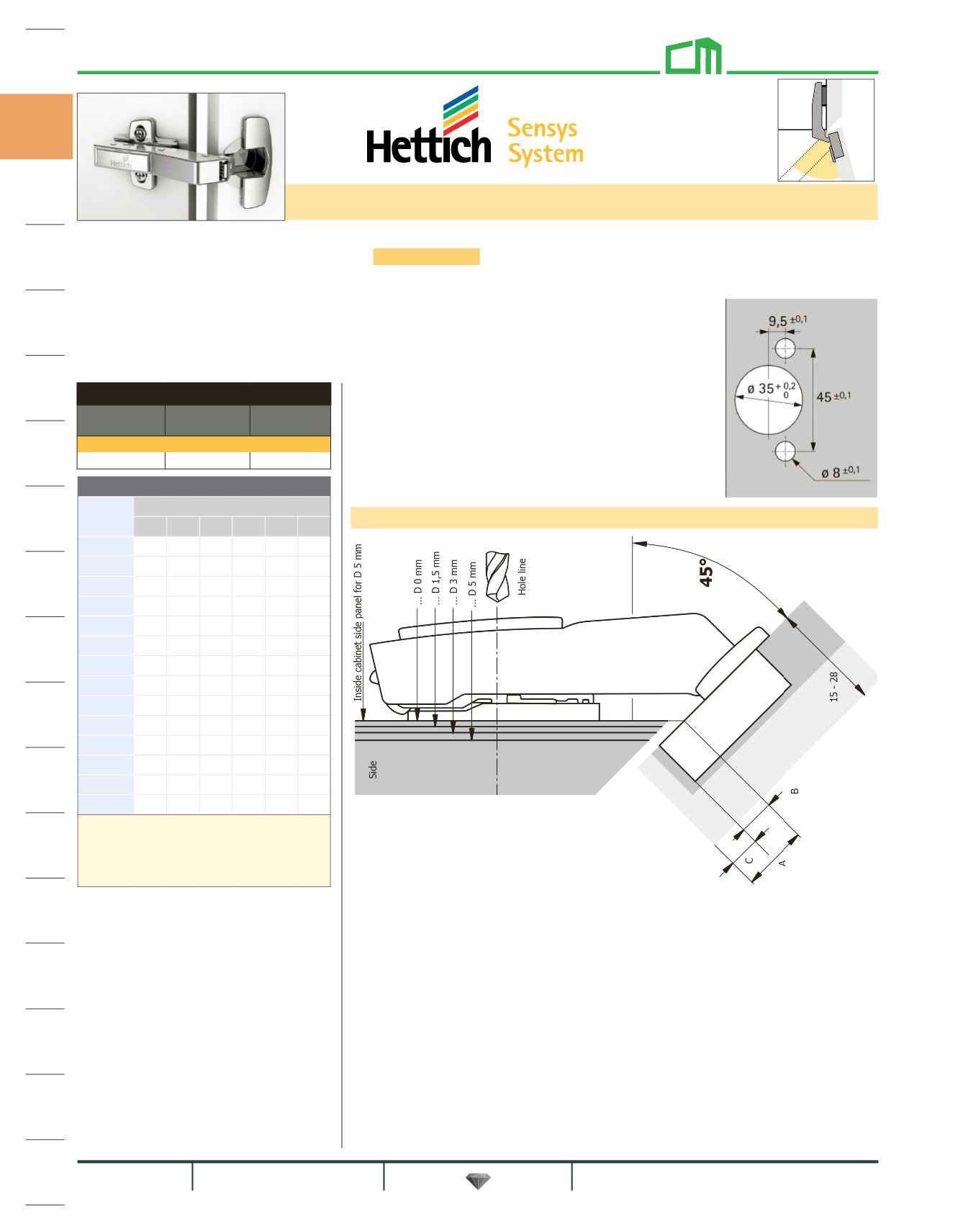

Charles McMurray Co. 2021 Catalog

248f / 1590

11/21
45° Face Angle, 95° Opening Angle Hinge For Corner Cabinet
Overlay Hinge
Item No. Description
List Ea.
50
Silent System (Soft-Close)
Fix Fast $15.80
Minimum Reveal Table
Door
Thickness
Cup Distance C
3 4 4.5 5 6 7
15 0.2 0.2 0.2 0.2 0.2 0.2
16 0.3 0.3 0.3 0.3 0.3 0.3
17 0.4 0.4 0.4 0.4 0.4 0.4
18 0.6 0.6 0.6 0.6 0.6 0.5
19 0.8 0.8 0.8 0.8 0.7 0.7
20 1.1 1.0 1.0 1.0 1.0 0.9
21 1.4 1.3 1.3 1.3 1.2 1.2
22 2.2 1.8 1.7 1.6 1.6 1.5
23 3.0 2.6 2.4 2.2 2.0 1.9
24 3.9 3.4 3.2 3.0 2.6 2.4
25 4.8 4.2 4.0 3.8 3.4 3.0
26 5.7 5.1 4.8 4.6 4.2 3.8
27 6.6 6.0 5.7 5.5 5.0 4.5
28 7.5 6.9 6.6 6.3 5.8 5.3
The table entries refer to doors with an edge
radius of 1 mm. On doors with other radii, the
minimum reveal changes as follows:
Radius 0 mm: Values shown in table + 0.4 mm
Radius 3 mm: Values shown in table - 0.6 mm
Inset (B 9 mm) - Scale 1:1
Distance C = 3 - 8 mm - door offset
(the recommended door offset equals 1 mm)
• For door thickness 15 - 28mm
• Available in Silent System
• Cup diameter 35mm
• Cup depth 12.8mm
• Integrated adjustment of door offset + 2mm / - 2mm
• Integrated reveal adjustment + 3mm / - 2mm
• Height adjustment at mounting plate
• Nickel-plated steel
