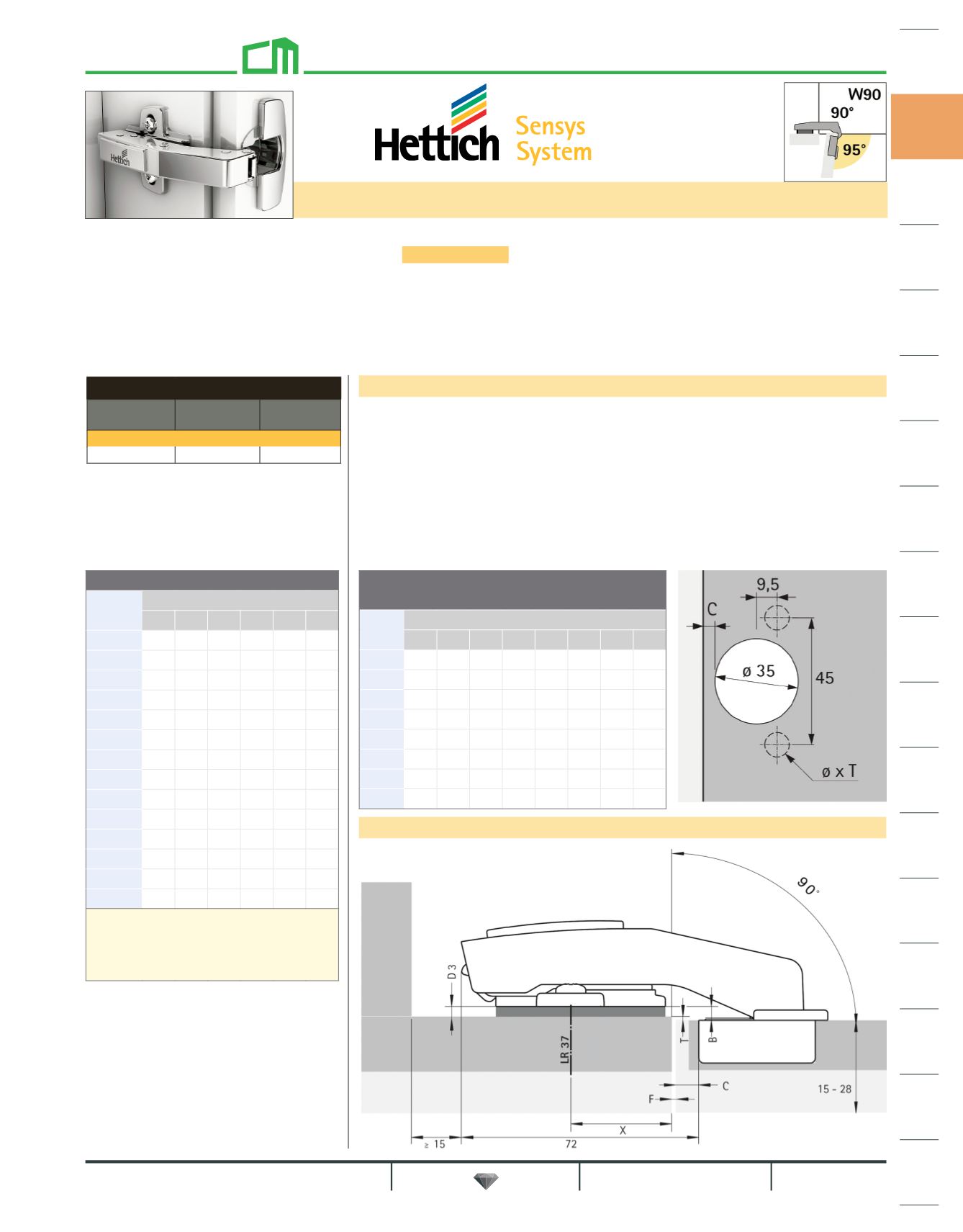

248c / 1590
90° Face Angle, 95° Opening Angle Hinge For Corner Cabinet
Inset Hinge
Item No. Description
List Ea.
50
Silent System (Soft-Close)
HT9088045 Press-in
$16.36
(If boring at 5mm, 3mm baseplate must be used
to get full inset.)
Minimum Reveal Table
Door
Thickness
Cup Distance C
3 4 4.5 5 6 7
15
0.2 0.2 0.2 0.2 0.2 0.2
16
0.3 0.3 0.3 0.3 0.3 0.3
17
0.4 0.4 0.4 0.4 0.4 0.4
18
0.6 0.6 0.6 0.6 0.6 0.5
19
0.8 0.8 0.8 0.8 0.7 0.7
20
1.1 1.0 1.0 1.0 1.0 0.9
21
1.4 1.3 1.3 1.3 1.2 1.2
22
2.2 1.8 1.7 1.6 1.6 1.5
23
3.0 2.6 2.4 2.2 2.0 1.9
24
3.9 3.4 3.2 3.0 2.6 2.4
25
4.8 4.2 4.0 3.8 3.4 3.0
26
5.7 5.1 4.8 4.6 4.2 3.8
27
6.6 6.0 5.7 5.5 5.0 4.5
28
7.5 6.9 6.6 6.3 5.8 5.3
The table entries refer to doors with an edge
radius of 1 mm. On doors with other radii, the
minimum reveal changes as follows:
Radius 0 mm: Values shown in table + 0.4 mm
Radius 3 mm: Values shown in table - 0.6 mm
Inset (B 4 mm) - Scale 1:1
Distance D = 4 mm - door offset
(the recommended door offset equals 1 mm)
Notes
Calculation of required mounting plate distance D and hole line distance X to be observed:
Depending on the required door offset, cup distance C (3-7 mm) and reveal F, the dimensions can be
seen in the table or drawing below.
The values stated for the hole line distance X apply when using a cross mounting plate for hole line 37.
Hole line distance X must be adjusted when using other mounting plates.
- LR 28: X - 9mm
- LR 20 x 32: X - 17 mm / X + 15mm
A door offset of 1mm is recommended. Door offset can subsequently be corrected with the adjusting
screw.
Determining hole line distance X mm when using
mounting plate for hole line 37
Reveal
Cup Distance C
3.0 3.5 4.0 4.5 5.0 5.5 6.0 7.0
0.5 35.0 34.5 34.0 33.5 33.0 32.5 32.0 31.0
1.5 34.0 33.5 33.0 32.5 32.0 31.5 31.0 30.0
2.5 33.0 32.5 32.0 31.5 31.0 30.5 30.0 29.0
3.5 32.0 31.5 31.0 30.5 30.0 29.5 29.0 28.0
4.5 31.0 30.5 30.0 29.5 29.0 28.5 28.0 27.0
5.5 30.0 29.5 29.0 28.5 28.0 27.5 27.0 26.0
6.5 29.0 28.5 28.0 27.5 27.0 26.5 26.0 25.0
7.5 28.0 27.5 27.0 26.5 26.0 25.5 25.0 24.0
11/21
• For door thickness 15 - 28mm
• Available in
Silent System
• Cup diameter 35mm
• Cup depth 12.8mm
• Integrated adjustment of door offset + 1mm / - 2mm
• Integrated reveal adjustment + 3mm / - 2mm
• Height adjustment at mounting plate
• Nickel-plated steel
