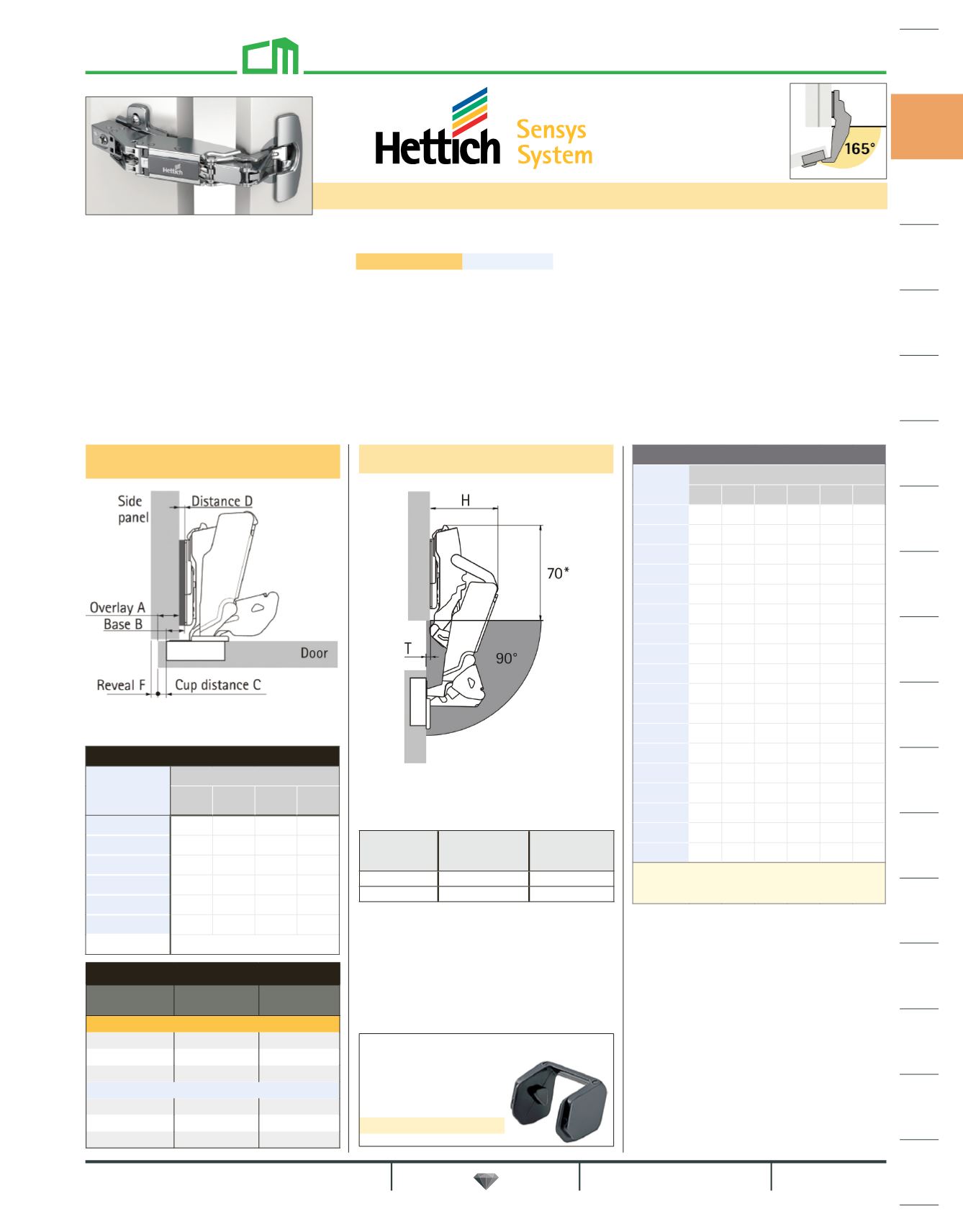

Charles McMurray Co. 2021 Catalog

248e / 1590

165° Opening Zero Protrusion Hinges
Overlay Hinges
Item No. Description
List Ea.
50
Silent System (Soft-Close)
HT9099560 Screw-on $17.72
HT9099561 Press-in $18.24
Fix Fast $20.30
Self-Close
HT9099620 Screw-on $17.84
HT9099621 Press-in $18.36
Fix Fast $20.98
Minimum Reveal Table
Door
Thickness
Cup Distance C
3 4 4.5 5 6 7
15 0.0 0.0 0.0 0.0 0.0 0.0
16 0.0 0.0 0.0 0.0 0.0 0.0
17 0.0 0.0 0.0 0.0 0.0 0.0
18 0.0 0.0 0.0 0.0 0.0 0.0
19 0.0 0.0 0.0 0.0 0.0 0.0
20 0.0 0.0 0.0 0.0 0.0 0.0
21 0.0 0.0 0.0 0.0 0.0 0.0
22 0.0 0.0 0.0 0.0 0.0 0.0
23 0.0 0.0 0.0 0.0 0.0 0.0
24 0.0 0.0 0.0 0.0 0.0 0.0
25 0.0 0.0 0.0 0.0 0.0 0.0
26 0.1 0.1 0.1 0.1 0.1 0.1
27 0.1 0.1 0.1 0.1 0.1 0.1
28 0.2 0.2 0.2 0.2 0.2 0.3
29* 0.4 0.4 0.4 0.4 0.5 0.6
30** 0.7 0.7 0.8 0.8 1.0 1.1
31** 1.1 1.2 1.3 1.4 1.6
32** 1.7 1.9 2.0 2.2
* when using the opening angle limiter at 120°
** when using the opening angle limiter at 105°
Overlay
Distance D = C + B - A
= cup distance C + 12.5 mm - overlay A
Protrusion/Installed Depth
No door protrusion T up to distance D = 3,
unobstructed interior for pull-outs.
*Hinge closed: 80 mm
Door
Mounting
Option
H mm
(max. at 30°)
T mm
(90°, D0)
Full Overlay 66 -3
Half Overlay 75.5 6.5
11/21
Full Overlay 0 mm
Mounting
Plate
Distance
Cup Distance C
3 4 5 6
0 mm 16 17 18 19
1.5 mm 14.5 15.5 16.5 17.5
3 mm 13 14 15 16
4.5 mm 11 12 13 14
5 mm 11 12 13 14
8 mm 8 9 10 11
Overlay
• For door thickness 15 - 32 mm
• Available in Silent System Self-Close
• Cup diameter 35mm
• Cup depth 11.6 mm
• Integrated overlay adjustment + 2 mm / - 2 mm
• Integrated depth adjustment + 3 mm / - 2 mm
• Height adjustment at mounting plate
• Opening angle can be reduced by means of optional accessories
• Nickel-plated steel
Opening angle restrictor
for Sensys 165° hinges
(restricts angle from
165° to 105° or 120°.)
See pg. 248i for pricing
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING & DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
CABINET HINGES
800.533.0533 2021 1946 248e Prices subject to change without notice.
