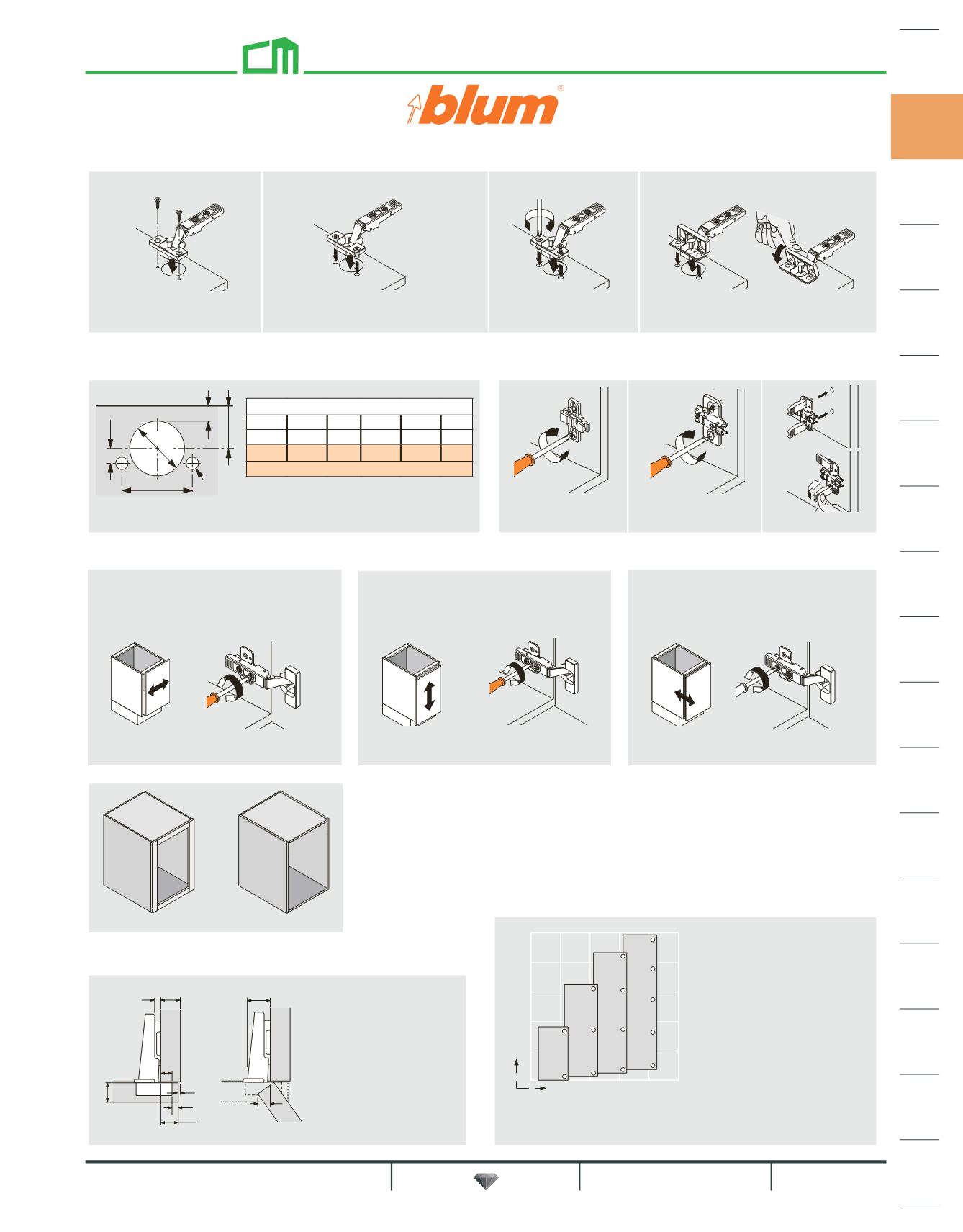

189 / 1590
X
2 3 4 5
20"
40"
60"
80"
100"
Y
15
lb.
15-30
lb.
30-45
lb.
45-60
lb.
H
B
T
W
R
OL
X
P
S
Ø8
45
13
min.
9.5
Ø35
B
Door
C
EXPANDO
INSERTA
Pre-attached
expanding dowels
Tool-free attachment
(cup expands into Ø35 mm hole)
Three-Dimensional Adjustment
Side adjustment
Rotate front screw to increase or
decrease door overlay (±2 mm).
Height adjustment
Rotate cam screw on mounting plate to adjust
door position (±2 mm).
On non-cam mounting plates, loosen screw,
adjust door and re-tighten screws.
Depth adjustment
Rotate rear Spiral Tech cam screw to
adjust door position (+3 mm, -2 mm).
Hinges Per Door
This chart is based on 19 mm
(3/4") melamine doors and can
serve as a guide for determining
the number of hinges per door.
Note that door weight can also
determine the number of hinges
required.
X
= Door height
Y
= Number of hinges
Hinge-To-Door Attachment
Screw-on
Use #6 wood screws
Press-in
Pre-attached dowels
installed with Blum MINIPRESS
Mounting Plate-To-Cabinet
EXPANDO
INSERTA
Screw-on
Hinge Dimension Abbreviations
R
= Reveal
S
= Hinge arm protrusion
T
= Door thickness
W
= Side panel width
X
= Fixed distance
Hinge Cup Centerpoint
Cup centerpoint is the MINIPRESS or MINIDRILL fence depth position.
Important:
The distance between the top and
bottom hinges must be greater
than the width of the door.
* only for use with select Blum hinges
For CLIP, loosen rear screw, adjust
and re-tighten.
CLIP top Hinges
Face frame cabinet Frameless cabinet
C
Cup Centerpoint
20.5 21.5 22.5 23.5 24.5 25.5
13/16" 27/32" 7/8" 15/16" 31/32" 1"
3 4 5 6 7* 8*
B
Bore Distance
B
= Boring distance
H
= Mounting plate height
OL
= Door overlay
P
= Door protrusion
(at max. opening)
