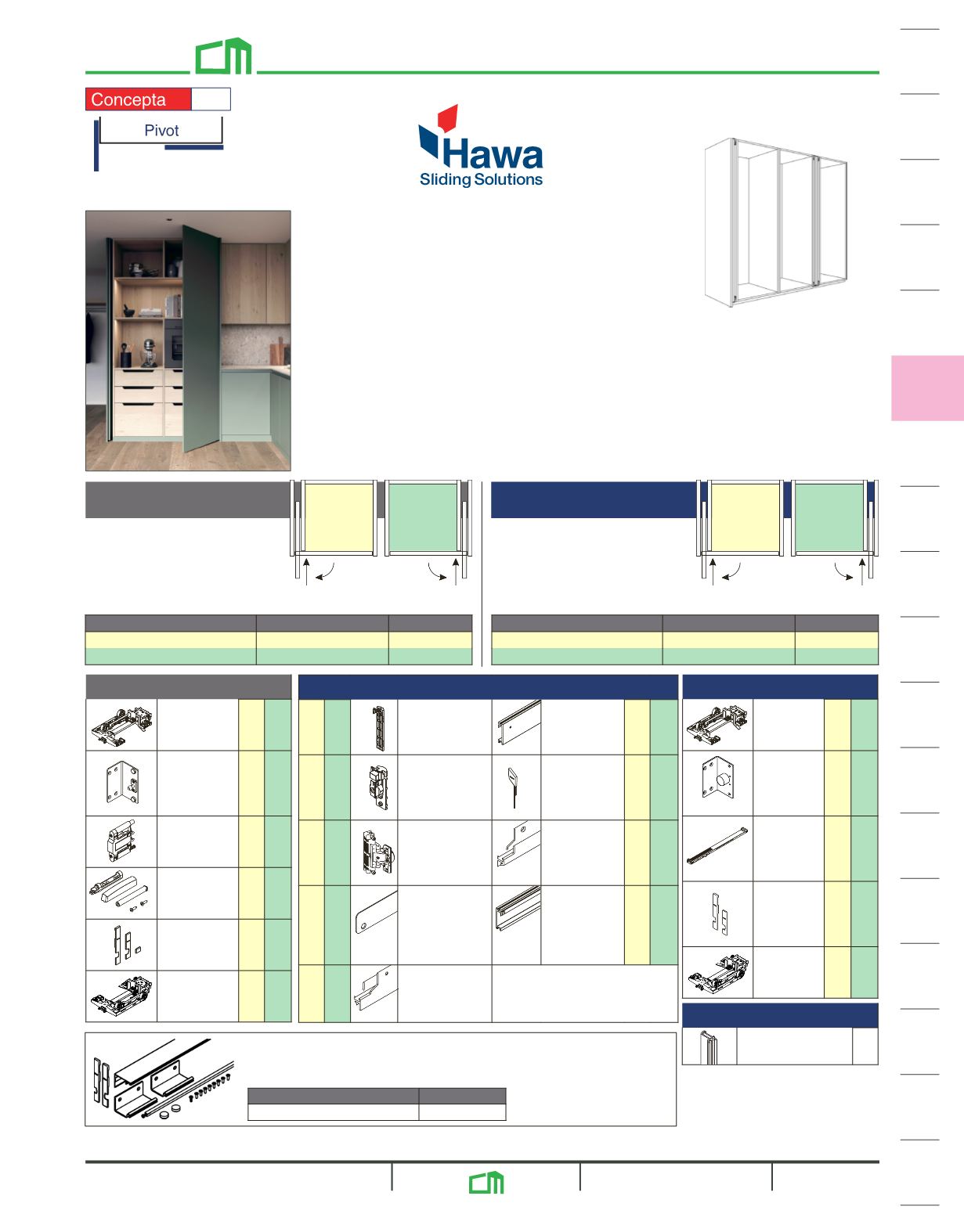

Hawa Concepta III 25

Sliding Cabinet Door System for

Push-to-Open or Pull-to-Open

Wood Doors up to 55 Lbs.

III

25

• Door height: 1200 mm - 2200 mm (47-1/4" to 86-5/8")

• Door weight: 13 to 55 lbs.

• Door width: 440 mm - 750 mm (17-5/16" to 29-1/2")

• Door thickness: 18-26 mm (3/4" to 1")

• Doors pivot 90° and slide fully into cabinet

• Uniform, flush front design with even gap pattern

• Handed hardware for (1) pivoting/lateral

push-to-open

(handleless) or

pull-to-open

(with handle)

slide-in door

• Optional exterior cabinet connector (order separately for partial overlay application)

Hardware Set

3 3

Hinge slot nut,

plastic

33" LH top

running track,

aluminum

1

1 1

Height adj.

hinge mounting

plate, nickel-

plated

Adjusting

tool set

1 1

3 3

Concealed

hinge w/soft-

close, nickel-

plated

33" RH

bottom

guide track,

aluminum

1

2 2

28-3/4" profile

for magnetic

guide (w/

double-sided

tape)

33" RH top

running track,

aluminum

1

1

33" LH bottom

guide track,

aluminum

Mounting hardware included

Push Slide-in Set

LH push

slide-in unit

1

End-stop

bracket for

Push ejector,

zinc-plated

1 1

Push ejector,

plastic

1 1

Push-to-open

w/adapter

plate, plastic

1 1

Push cover

cap set for

stops, plastic

1 1

RH push

slide-in unit

1

Pull Slide-in Set

LH pull

slide-in

unit

1

End-stop

bracket

pull, zinc-

plated

1 1

Soft-close

mechanism

w/ end-

stop

1 1

Pull cover

cap set

for stops,

plastic

1 1

RH pull

slide-in

unit

1

See pg. 510y for specs

Kit (handed) includes:

Hardware set, slide-in set and

upright profile. Order exterior

cabinet connector separately.

Kit (handed) includes:

Hardware set, slide-in set and

upright profile. Order exterior

cabinet connector separately.

Push-to-Open

Pull-to-Open

LH RH

LH RH

Exterior connector (optional):

Forpartialoverlayapplicationonfreestandingcabinets.55mm(2-3/16")

x 560 mm (22-1/16"). Sold per set, order one set per door.

Item No.

List Ea.

HW-CONCEPTA3-31005 $288.16

Upright Profile

Upright profile,

aluminum, 77-3/4" 1

Sold per kit, order one kit per door.

Set No.

Description

List Set

HW-CONCEPTA3-25PS-L

Hardware Set Left

$2,971.46

HW-CONCEPTA3-25PS-R

Hardware Set Right $2,971.46

Sold per kit, order one kit per door.

Set No.

Description

List Set

HW-CONCEPTA3-25PL-L

Hardware Set Left

$2,445.06

HW-CONCEPTA3-25PL-R

Hardware Set Right $2,445.06
