Charles McMurray Co. 2021 Catalog

517 / 1590

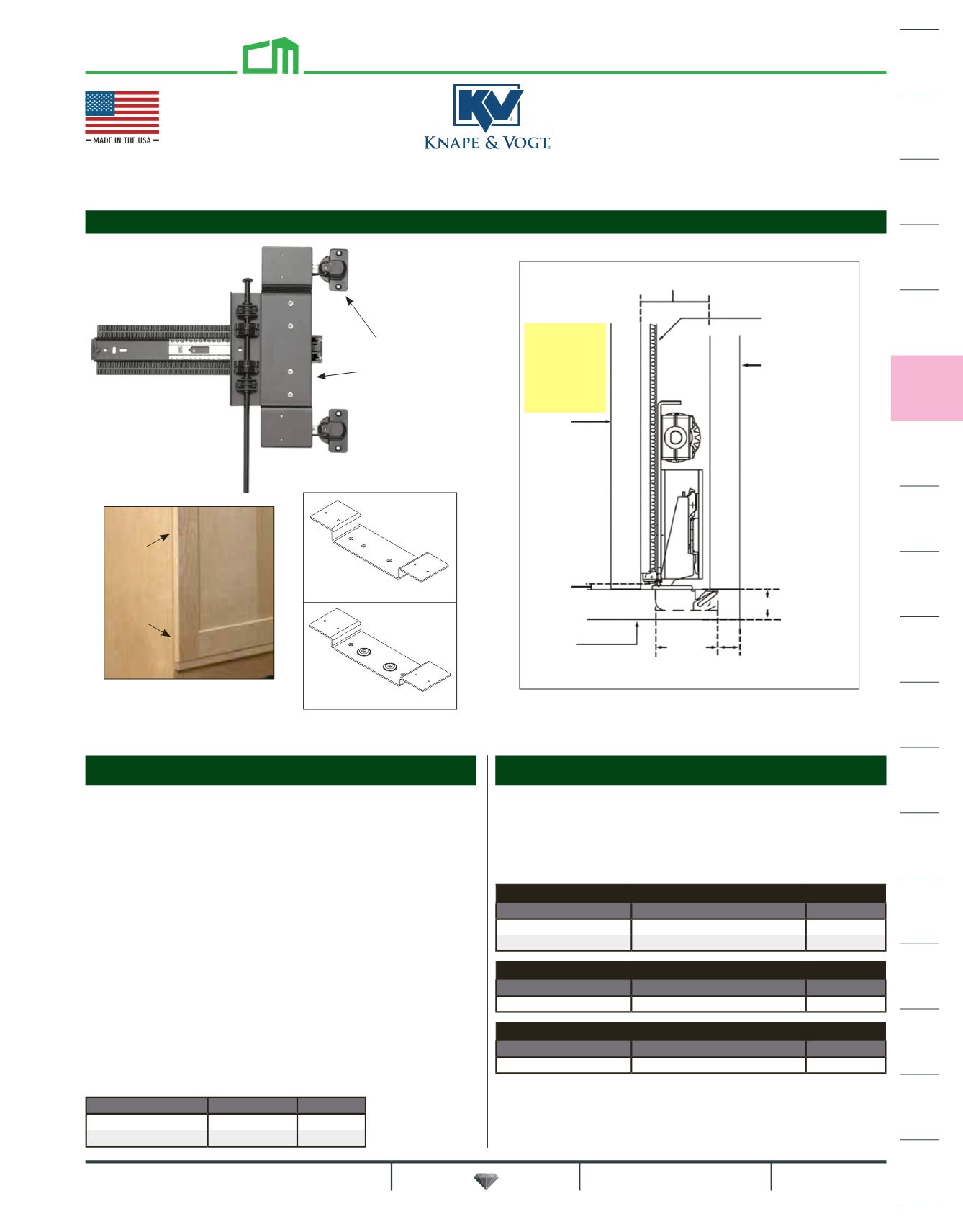

KV8091 4X4 Pocket Door Slides For Vertical Mount Doors
Hinge Kits
full
overlay
of 3/4"
thick
door
For Full Overlay Applications
kit includes
4 hinges
4 baseplates
and 2 brackets
Bracket for Mepla Hinge Kit
Bracket for Salice Hinge Kit
Kit includes 4 overlay hinges, 4 baseplates, 4 hinge covercaps,
2 brackets, 4 felt pads and bracket mounting hardware.
Item No. Description List Kit
Mepla Kit $152.98
Salice Kit $147.12
For doors up to 3/4” thick. Doors greater than 3/4” thick may
be used but the amount of overlay is decreased. The special-
ized mounting bracket is easily attached to the 4x4 Pocket Door
system and does not compromise the operating characteristics.
The amount of overlay and partition width can be determined
using the following formulas:
Amount of Overlay = 1.5” minus Door Thickness
Partition Width = 1” plus Door Thickness
Two mounting brackets have been developed for the 4x4 Pocket
Door system: one bracket for use with Mepla overlay hinges,
and the other for use with Salice overlay hinges.
Designed to meet or exceed ANSI performance standards as
established by BIFMA, BHMA, and KCMA.
(slide not included)
partition width =
1" (25.4mm) + door thickness
outside edge
of cabinet
3/4" (19mm) for
full overlay
1/2" (13mm)
edge bore
distance
1-37/64"
(40mm)
hinge cup
bore diameter
door
3/16"
(4.8mm)
setback
For Inset Application, 3/4" Thick Doors
Item No. Description List Kit
35 mm self-closing, black $41.52
35 mm free-swing, nickel $42.36
For 1/4" Overlay Application, 3/4" Thick Doors
Item No. Description List Kit
40 mm self-closing-black $52.22
For Inset Application, Thick Doors (up to 1-1/4")
Item No. Description List Kit
40 mm self-closing-black $53.74
Hinge Kit Options
Hinge kits include:
2 hinges, 2 baseplates & screws
(order 2 kits per pair of slides)
slides are
partition
For full overlay
application-
hardware
mounts to a
partition, NOT
the cabinet
Hinge Kits For Full Overlay Applications
