Charles McMurray Co. 2021 Catalog

516 / 1590

order hinges &
baseplates
separately
order pinion
shaft
separately

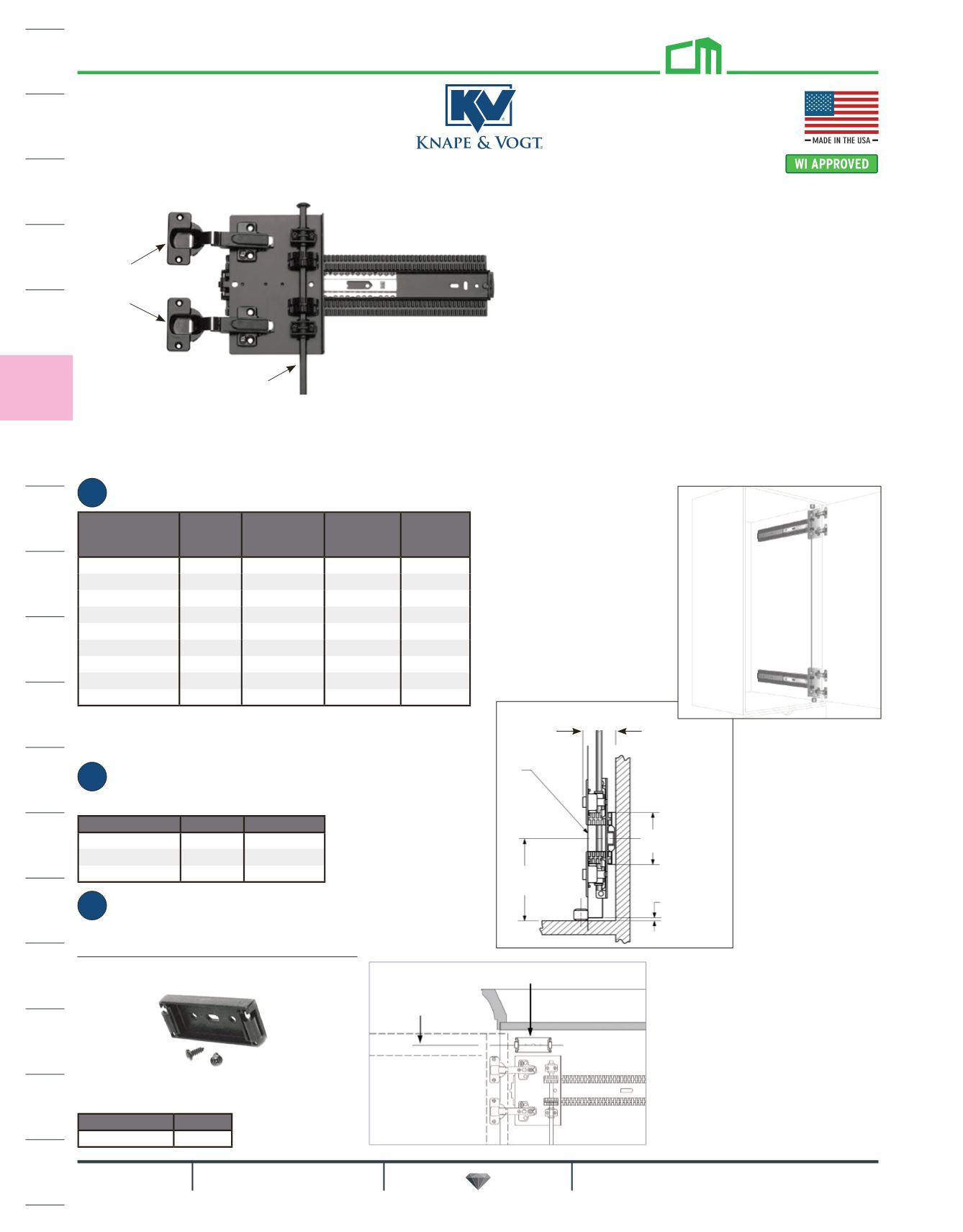

KV8091 4X4 Pocket Door Slides For Vertical Mount Doors
BLACK - 75 lb. Load Rating
Hinges Not Included
(1 pair of slides needed per door)
Pinion Shaft (can be cut-to-size)
Item No. Length List Each
36" $14.04
48" $21.58
72" $36.38
Raised Panel Cassette Roller
Additional protection for raised panel doors.
Order 2 per pair of slides.
Item No. List Ea.
$13.14
• Dual rack & pinion system virtually eliminates door sag
• 75 lb. class rated for heavy-duty applications
• Maximum door dimensions: 72"h x 26"w (use 2 sets for taller doors)
• Minimum door height: 24"
• Indexing pin allows door slide to nest within door rack for easy alignment
and installation
• Precision steel ball-bearings for smooth and quiet operation
• Order hinges, baseplates & pinion shaft separately
• Polybagged with screws
1 Order Slides (1 pair per door)
2 Order Pinion Shaft (1 per door)
3 Order Hinge Kits (optional) see next page
(order 2 kits per pair of slides)
Profile
approx. centerline
of door frame member
cassette roller
max. slide width
including hinge 1-25/32"
door
2.72"
(69.1mm)
1/8" (3.2mm)
recommended
gap
4.78"
(121.4mm)
NOTE: Not recommended for receding or
flipper door (over the top) applications.
Item No. Length
Approx.
Door
Conceal*
Approx.
Cabinet
Depth** List Pair
14" 10" 14-3/8" $238.08
16" 12" 16-3/8" $239.80
18" 14" 18-3/8" $241.40
20" 16" 20-3/8" $243.88
22" 18" 22-3/8" $241.38
24" 20" 24-3/8" $248.96
26" 22" 26-3/8" $251.28
28" 24" 28-3/8" $253.84
30" 26" 30-3/8" $256.28
* Door fully retracted into case
** Add thickness of door to determine minimum
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
SLIDES
800.533.0533 2021 1946 516 Prices subject to change without notice.
