• White (WH) epoxy-coated steel profiles

• Single-extension

• Smooth running synthetic rollers on tempered steel axles

• Captive RH profiles/tolerance LH profiles

• 1/2" side clearance

• Double warning lift-out stop

• Exceeds BHMA Grade 1 requirements

• BLUMOTION soft-close add-on available

Rear Mounting Brackets

Item No. Description Box List

B602300*

Right Hand 500ea $1.14 ea

B602301*

Left Hand 500ea $1.14 ea

* Full box only.

Attach with #6 x 1/2" trusshead screws

(B612TH100)

.

NOTE: Cannot be used with 230E (700 mm-800 mm) or 430 Full

Extension slides (non-stock).

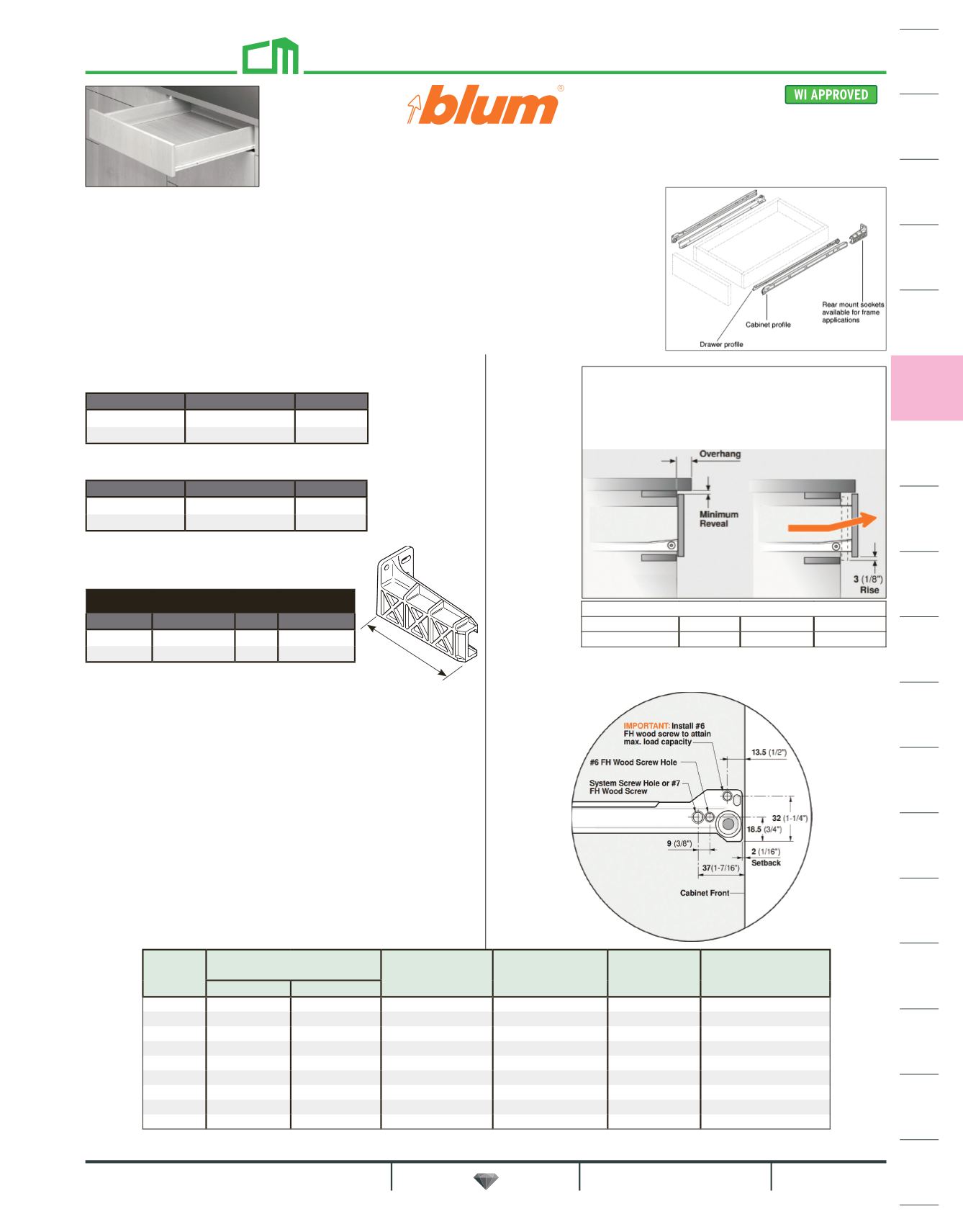

230M Series Drawer Slides

3/4 Extension, Bottom/Side Mount, Self-Closing

75 lbs. Dynamic, 100 lbs. Static

Bulk 25

pair per box without screws. Sold per pair in full boxes only.

Order #6 flathead phillips screws separately.

Item No.

Length

List Pr.

B230WH350

350 mm (14") $12.06

B230WH600

600 mm (24") $24.64

Polybagged

25 pair per box with screws. Price is per pair.

Item No.

Length

List Pr.

B230WH350P

350 mm (14") $18.44

B230WH650P

650 mm (26") $42.38

*

Taped, not polybagged.

Minimum Reveal Table

Overhang

16 (5/8") 32 (1-1/4") 48 (1-7/8")

Minimum Reveal 1 (1/32") 2 (3/32")

3 (1/8")

92 mm

(3-5/8")

Slide

Length

Face Frame Cabinet

Interior Depth*

Minimum

Panel Cabinet

Interior Depth*

Suggested

Drawer Length

Extension

Loss **

Cabinet & Drawer

Profile Length

Maximum Minimum

250 (10") 314 (12-5/16") 277 (10-7/8") 253 (9-15/16")

250 (9-13/16")

59 (2-5/16") 250 (9-13/16")

300 (12") 364 (14-5/16") 327 (12-7/8") 303 (11-15/16")

300 (11-13/16")

85 (3-3/8")

300 (11-13/16")

350 (14") 414 (16-1/4") 377 (14-13/16") 353 (13-7/8")

350 (13-3/4")

85 (3-3/8")

350 (13-3/4")

400 (16") 464 (18-1/4") 427 (16-13/16") 403 (15-7/8")

400 (15-3/4")

85 (3-3/8")

400 (15-3/4")

450 (18") 514 (20-1/4") 477 (18-13/16") 453 (17-7/8")

450 (17-3/4")

95 (3-3/4")

450 (17-3/4")

500 (20") 564 (22-3/16") 527 (20-3/4") 503 (19-13/16")

500 (19-11/16")

102 (4")

500 (19-11/16")

550 (22") 614 (24-3/16") 577 (22-3/4") 553 (21-13/16")

550 (21-11/16")

110 (4-5/16") 550 (21-11/16")

600 (24") 664 (26-1/8") 627 (24-11/16") 603 (23-3/4")

600 (23-5/8")

120 (4-11/16") 600 (23-5/8")

650 (26") 714 (28-1/8") 677 (26-11/16") 653 (25-3/4")

650 (25-5/8")

127 (4-15/16") 650 (25/58")

*For overlay drawer fronts. Space requirements for inset drawers will vary according to front thickness. A trial is recommended.

** At suggested drawer length.

BLUMATIC Action

IMPORTANT: The BLUMATIC design lowers the drawer

into the closed position. Consult the minimum reveal

table to make sure the drawer front clears the coun-

tertop overhang when the drawer opens.
