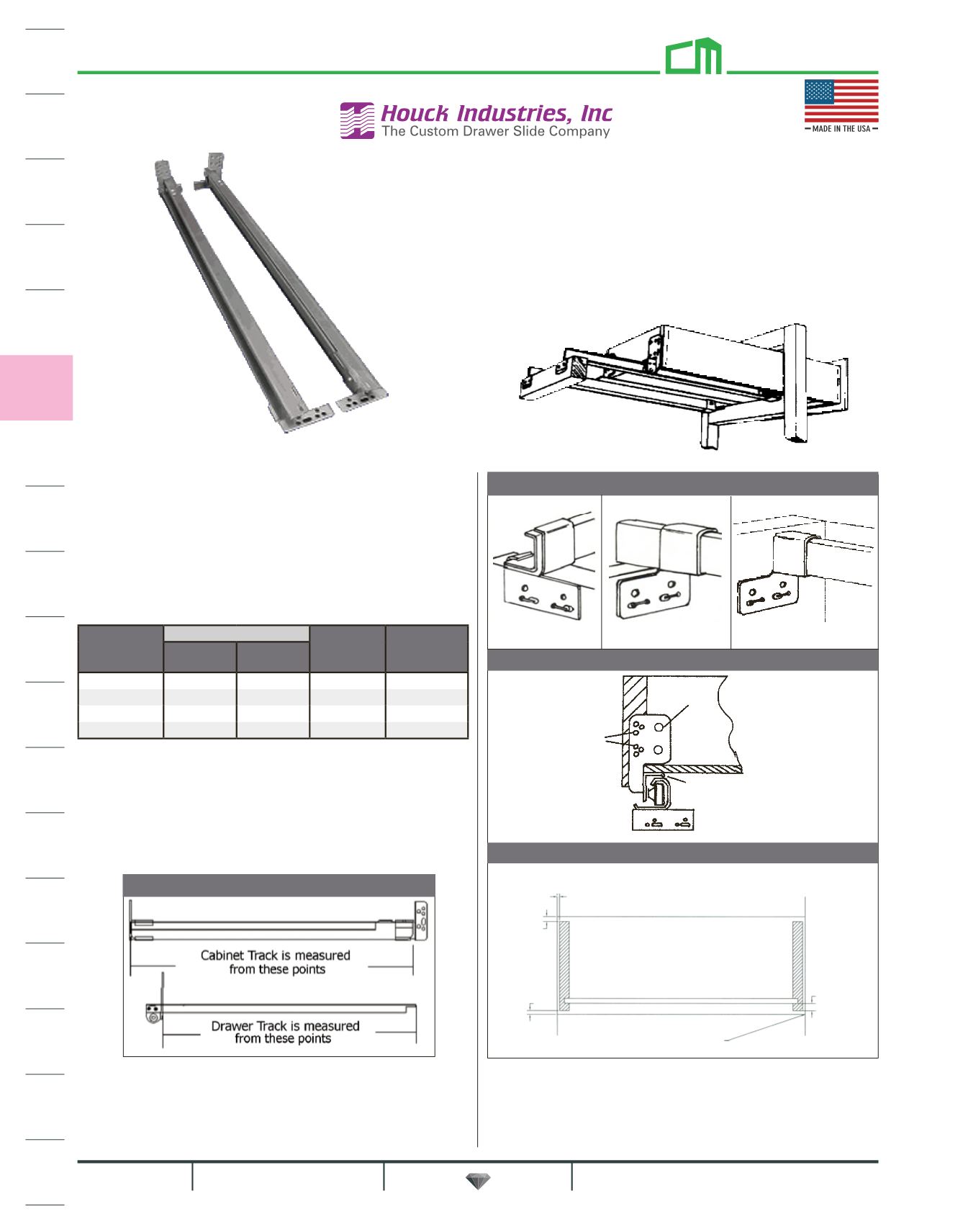

GO-E-Z Drawer Slide 500 Series
50 lb. Rating at 22" Static, 75 lb. Dynamic
3/4 Extension Bottom Mount
• Maximum drawer width and balanced load support with
4-point suspension
• Right-hand captive channel track reduces side play
• Polypropylene wheel provides silent drawer action
• Standard metal rear bracket applies three different
ways (as pictured)
• Cabinet member can be cut-to-size
• Stocked in satin finish
20 pair per box. Price is per pair.
Item No.
Track Length
List Pair
List Pair
20
Drawer
Track
Cabinet
Track
17" 18" $20.98 $17.62
20" 21-1/2" $20.58 $17.44
22" 22-1/2" $23.16 $19.62
24" 24-1/2" $26.74 $22.44
Metal Rear Mounting Bracket Options
Rear of Rail Front of Rail Directly to Strongback
Track Cross Section
Drawer Clearance Specs
Captive Drawer Member
Optional
Screw Mount
Staple
Face frame
Opening
3/8" min.
7/16" max.
1/4"
3/16"
1/8" min.
Combined total clearance between
drawer side height and cabinet
opening is 7/16" min.
How to Measure the Slide
