08/22

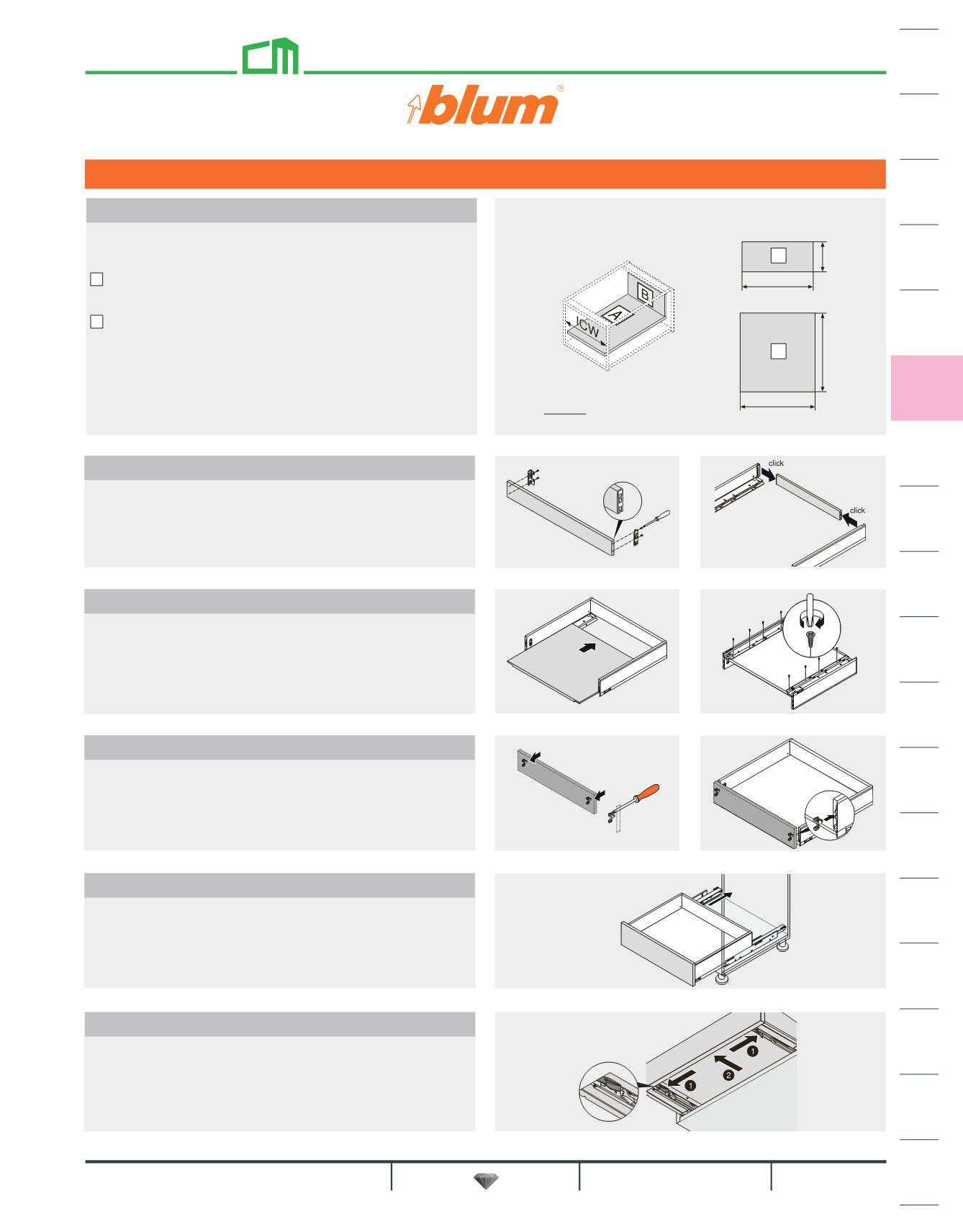

LEGRABOX - Drawer Assembly and Removal

Step 1: Measure inside cabinet width (ICW)

NOTE:

Use 16 (5/8") material

for bottom and back.

NOTE:

Minimum inside cabinet

widthwithout TIP-ONBLUMOTION

= 148 mm (5-13/16")

Step 5: Drawer box installation

Step 4: Attach drawer front

Step 3: Drawer bottom installation

Step 2: Attach drawer back

Rear fixing brackets are attached with #6 x 1/2" truss head screws

(B612TH100)

. The drawer back, with rear fixing brackets attached,

snaps into the rear of both drawer profiles.

The drawer bottom slides into the drawer profiles.

Push the drawer bottom flush with the front of the drawer.

Pre-bore and attach with wood screws

(B612TH100)

.

Follow the installation drawing for locating hole positions for front

fixing brackets and pre-bore the necessary EXPANDO Ø10x12 holes

(screw-on versions also available). Insert front fixing bracket into

pre-bored holes and screw as shown to secure.

Snap drawer front onto drawer.

Place drawer box onto cabinet profiles and insert drawer box into

cabinet.

Drawer box removal

Pull drawer forward to reveal locking devices. Squeeze triggers on

locking device and lift drawer box off of runners.

A

B

AL -

10

ICW -

35

63

ICW -

38

Use inside cabinet width (ICW) to calculate the drawer bottom and

back dimensions. Formulas are found on the specification page of

each application.

A Drawer bottom:

Width = ICW minus 35 mm (1-3/8")

Length = Actual cabinet profile length minus 10 mm (13/32")

B Drawer back:

Width = ICW minus 38 mm (1-1/2")

Height N = 39 mm (1-17/32")

Height M = 63 mm (2-1/2")

Height K = 101 mm (4")

Height C = 148 mm (5-13/16")

Height F = 212 mm (8-5/16")

For best assembly results, use a BOXFIX-E-L.

Additional installation instructions available on

blum.com/legraboxinstallation

Example of M Height
