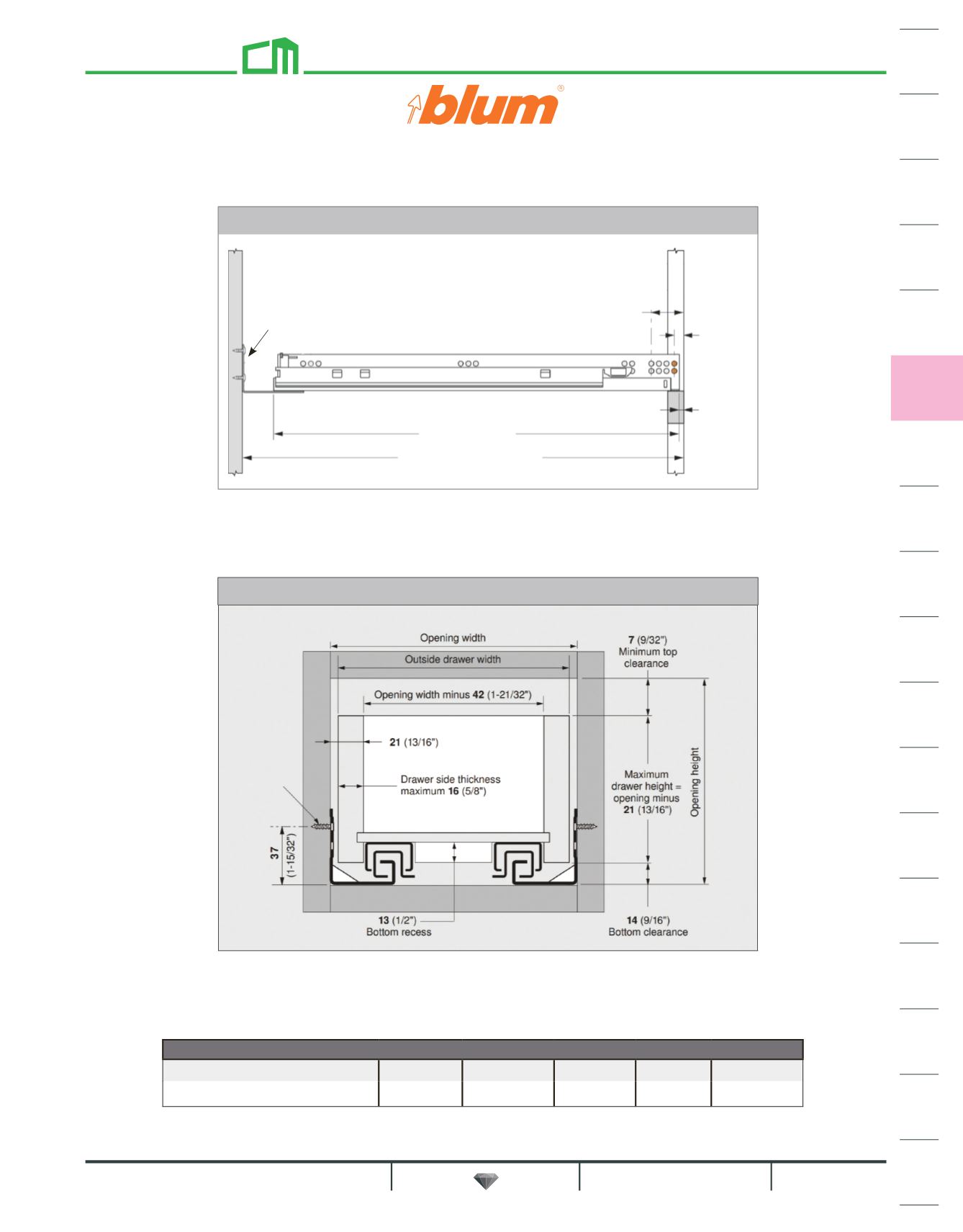

TANDEM 562H Drawer and Cabinet Specifications
Profile Mounting Specifications for 562H
10 (3/8")
4 (5/32") setback
profile length
inside cabinet depth
rear
mounting
bracket
37 (1-7/16")
Drawer & Box Specifications
NOTE:
Material thickness may vary. Inside drawer width must equal opening width
minus 42 (1-21/32") for TANDEM to align and run properly.
Front view
system or
#7 profile
mounting
screw
Example: For 21" inside cabinet width and a 5/8" thick drawer: 21" minus 3/8" = 20-5/8" drawer width
Formula for calculating outside drawer width
For drawer side thickness
16 (5/8") 15 (19/32") 14 (9/16") 13 (1/2") 12 (15/32")
Deduct from inside cabinet width 10 (13/32") 12 (15/32") 14 (9/16") 16 (5/8") 18 (23/32")
