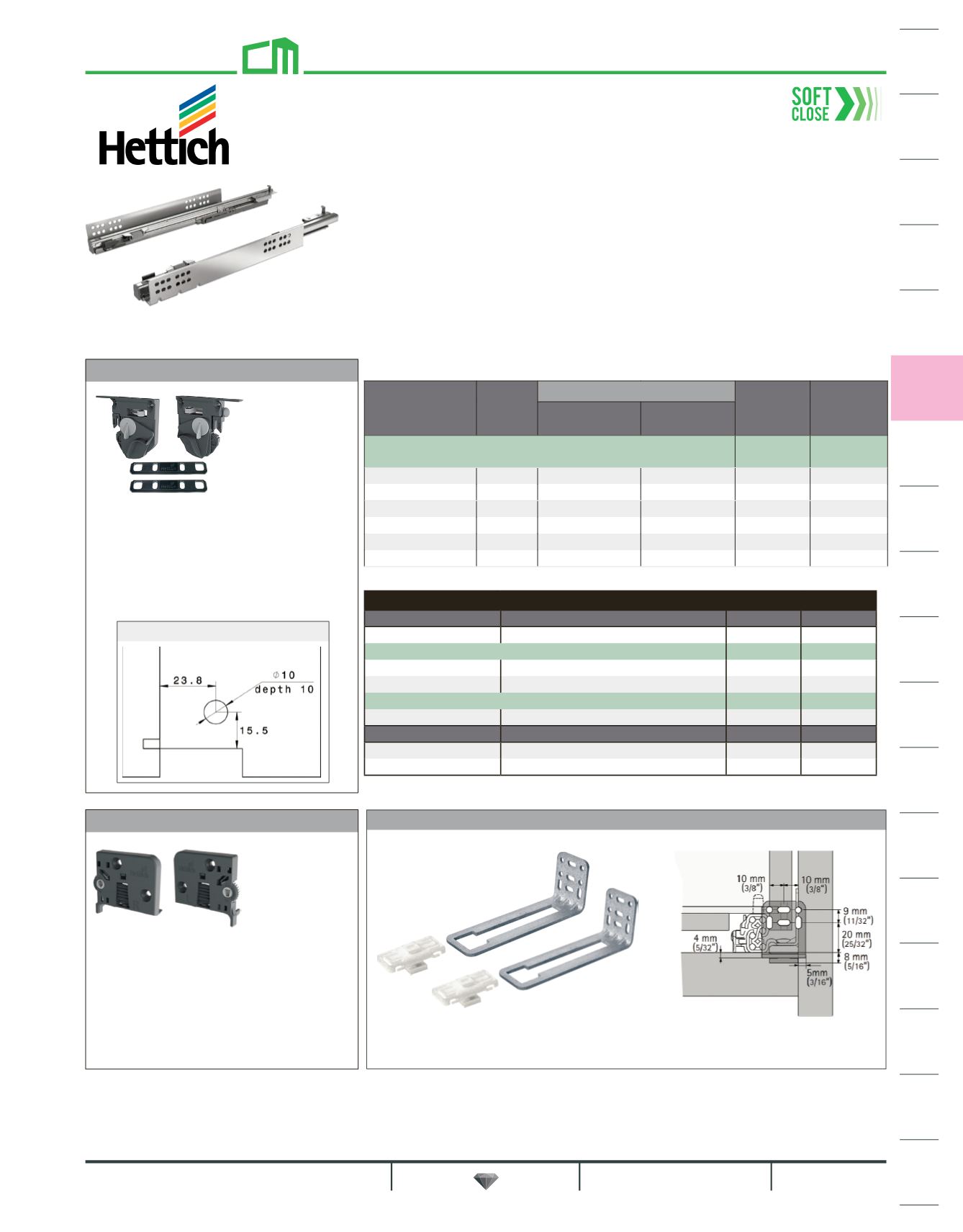

Quadro 4D V6 IW 21 Silent-Closing Slide
Full Extension, 90 lb. Capacity
• Meets or exceeds ANSI/BHMA 156.9 Grade 1 requirements
• Silent System: an integrated damping device closes the drawer softly and quietly
• Slide-on installation with 4D catches and tilt adjustment
• Tool-less adjustability
Height: up to + 2 mm
Side: up to ± 1.5 mm
Depth: up to ± 2 mm
and Tilt adjustment
• Galvanized steel
• For 1/2" or 5/8" material
Metal Rear Mounting Brackets
Includes 2 metal brackets
and 2 plastic connectors
• For up to 50 mm (1-15/16") depth adjustment and ± 1.5 mm (1/16") side adjustment
• Additional adjustment via oblong holes
• Recommended installation with minimum four #6 panhead screws, sold separately
Order rear brackets, locking devices, tilt adjusters and screws separately.
Item
No.
Drawer
Length
Face Frame w/Rear Bkt
List Pair
List Pair
40
Minimum
Int. Depth
Maximum
Int. Depth
Bulk Pack - 10 pair per box List Pair
List Pair
10
9" 250 (9-7/8") 300 (11-3/4") $88.12 $78.84
12" 326 (12-7/8") 376 (14-3/4") $65.28 $58.40
15" 402 (15-7/8") 452 (17-3/4") $63.68 $57.20
18" 479 (18-7/8") 529 (20-3/4") $64.48 $56.96
21" 555 (21-7/8") 605 (23-3/4") $65.20 $57.60
24" 631 (24-7/8")* $83.76 $83.76
* No rear attachment, must be blocked out.
Accessories
Item No. Description List Pair List Pr. 10
Rear Mounting Bracket $9.86 $8.96
Locking Devices List List 50
IW21-4D-LOCK12 L/R locking device set & 2 spacers $7.84 kt $6.70 kt
IW21-4D-LOCK58 L/R locking device set $7.20 pr $6.40 pr
Rear Tilt Adjuster List Pr List 50 Pr
IW21-4D-REARTILT L/R tilt adjuster set $6.32 $5.64
Item No. Description Box Qty List Box
#7 x 3/4" Flathead Phillips 1c $9.86
#7 x 3/4" Flathead Phillips 5c $31.94
Tilt Adjuster Set
• Large range of rear hook intake for
safe installation
• Tool-less tilt adjustment
• Minimum drawer width 165 mm (6 1/2")
• Installation recommended with two
# 6 x 1/2" flat head screws per adjuster,
order MCFPT126.
• Gray plastic
IW21-4D-REARTILT
Kit includes 2 tilt
adjusters. (Two
devices needed per
drawer.)
Locking Device Sets
• Secure, tool-less connection of slides
to wooden drawer
• Height adjustment up to +2 mm
• Side adjustment up to ± 1.5 mm
• Gray plastic
IW21-4D-LOCK12
Kit includes 2
locking devices
and 2 IW21-
LOCK-SPACERs
for 1/2" drawer
panel thickness
Drawer Back Preparation
IW21-4D-LOCK58 Set includes 2 locking
devices for 5/8" drawer panel thickness
revised 2/22
