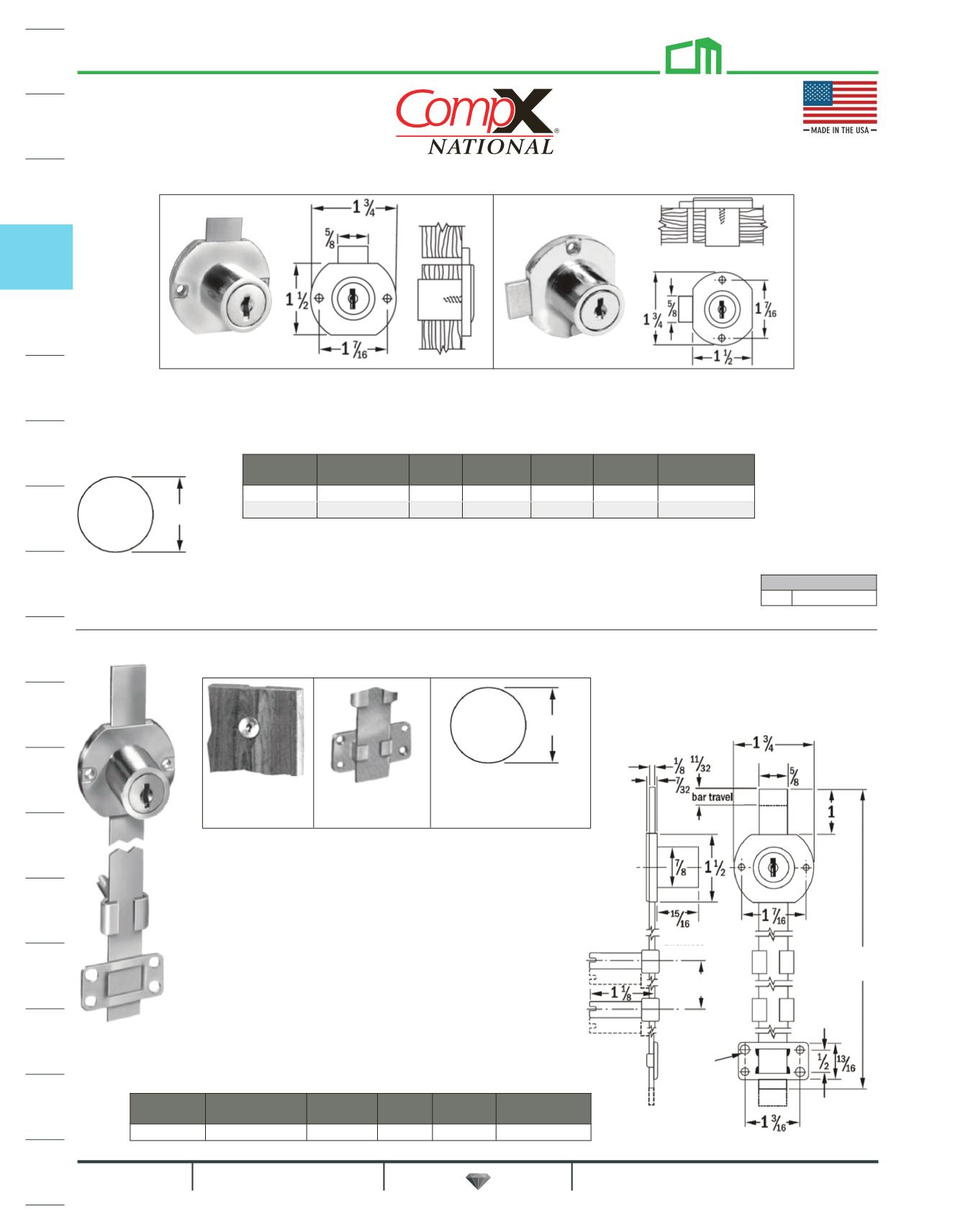

APPLICATION - Mounts to side of cabinet or desk. For locking
drawers in desk pedestals and other multiple drawer applica-
tions. Requires 7/8" diameter hole for cylinder and dado for bar,
measuring 7/8" x 1/8" deep on inside of panel.
OPERATION - Key removable in both locked and unlocked posi-
tions. Turning the key locks all drawers simultaneously (drawers
must be in closed position). Bar moves studs into notch in drawer
or slide, thus preventing drawer movement.
KEYING -Will key together with all other disc tumbler locks using
D8785 key blank. "D" locks are masterkeyed.
PACKAGING - Supplied with two keys, three locking studs,
three stud slides, saddle and mounting screws. 5 locks per box.
Disc Tumbler Gang Lock (For 3 drawers)
D8090
Disc Tumbler Door & Drawer Locks
APPLICATIONS - For drawers and doors. Surface mounted. Requires 7/8" diameter hole for cylinder.
OPERATION - Key removable in both locked and unlocked positions.
KEYING - Will key together with all other disc tumbler locks using D8785 key blank.
PACKAGING - Supplied with two keys and mounting screws. 25 locks per box.
Saddle reverses for
mortise application.
Mounting Hole
Additional 7/8" x 1/8" deep
dado for bar required on
inside of panel.
Cylinder is lo-
cated near top
of pedestal.
C8704 C8703
24" bar
length
material
thickness
stud position
variable
mounted
diagonally
with 2
screws
Item No. Installation
Bolt
Type
Cylinder
Length
Bolt
Travel List Ea. Stock Key #s
Drawer Dead 15/16" 11/32" $25.14 413, 415
Door Dead 15/16" 11/32" $25.14 413, 415
Item No. Bar Operation
Cylinder
Length
Bar
Travel List Ea. Stock Key #s
Dead Locking 15/16" 11/32" $59.70 415
Mounting Hole
7/8" dia.
7/8" dia.
Finishes
14A Bright Nickel
