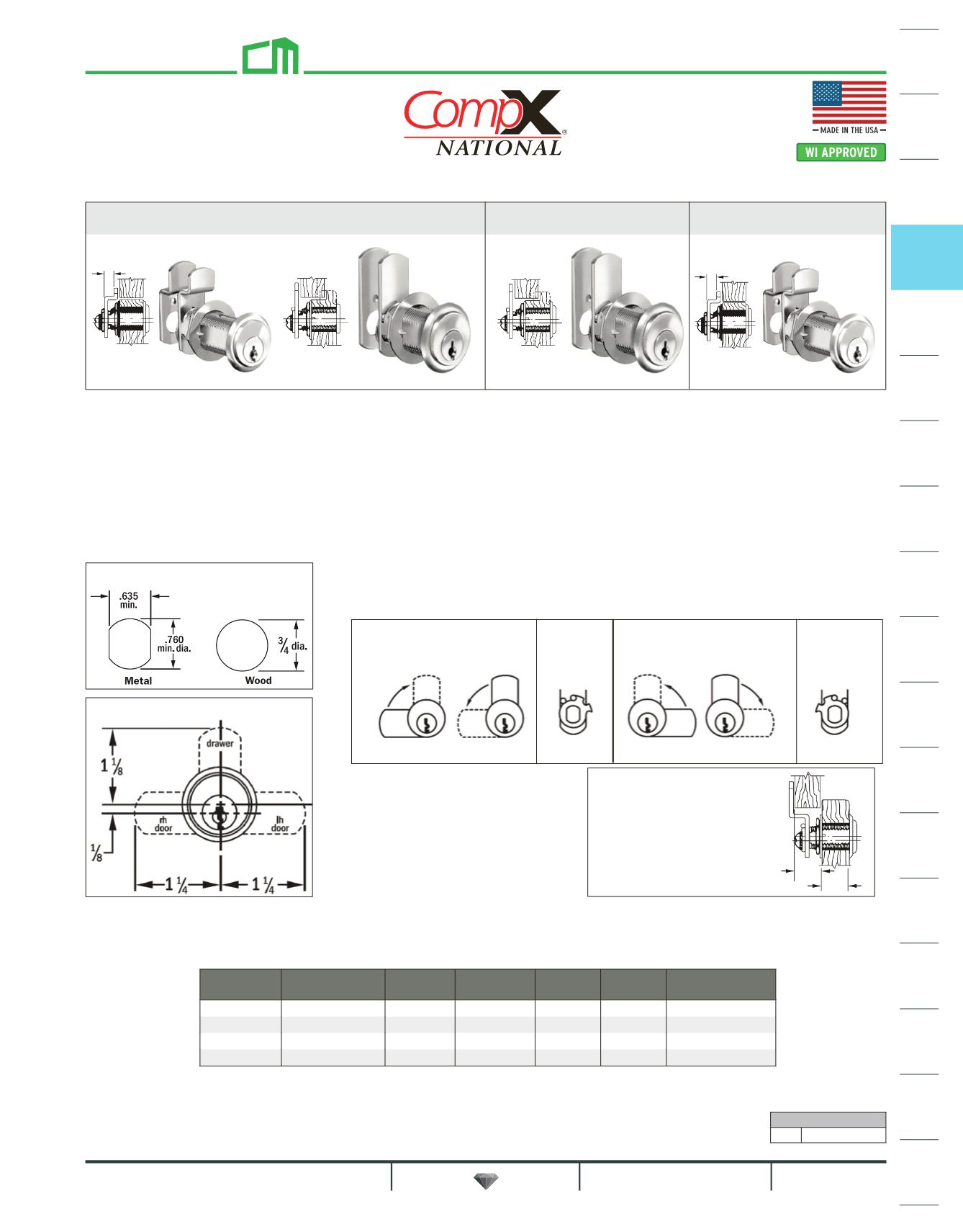

C8102 - Multi-Functional Cam Lock
Includes 4 cams (2 straight and 2 double-formed)
C8103, C8109
Lipped/Overlay
C8108
Flush
Pin Tumbler Cylinder Cam Locks - Brass Construction
Through the use of a shifter, the 360° key turn turns the cam 90° in either direction.
Actual application determines which cam position is the locked position. Each lock is
furnished with an alternate cam for opposite cam turn.
APPLICATION - For drawers, LH or RH doors. C8103 and C8109 are for lipped or overlay construction. For overlay
application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail
below. The other locks are for flush application.
OPERATION - 90° cam turn, key removable in both locked and unlocked positions.
KEYING - Will key together with all other pin tumbler locks using D4291 key blank (special order).
PACKAGING - Supplied with two keys, trim washer, spur washer for wood, C2014 cam lock mounting plate for
wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately (special order).
OVERLAY
Specific cams to be used with
C8102 lock are available for
overlay construction using a 3/4"
thick front and 3/4" thick frame.
See cams on next page.
Flush
Applications:
Solid lines show locked
position of cam
Position of
shifter on
back of lock
Applications:
Solid lines show locked
position of cam
Position of
shifter on
back of lock
RH door drawer LH door drawer
9/32
3/4
3/4
10 per box, sold per each.
Item No.
Type of
Mounting
Cylinder
Length
Max. Mat.
Thickness List Ea.
List Ea.
10 Stock Key #s
All 1-1/16" 3/4" $65.02 $53.98 103, 915
Lipped/Overlay 1-3/16" 7/8" $65.02 $53.98 915
Flush 1-3/4" 1-3/8" $65.02 $53.98 915
Lipped/Ovrly 1-3/4" 1-1/2" $65.02 $53.98 915
Lipped/
Overlay
9/32
Mounting Holes
Cam Dimensions
Finishes
26D Dull Chrome
