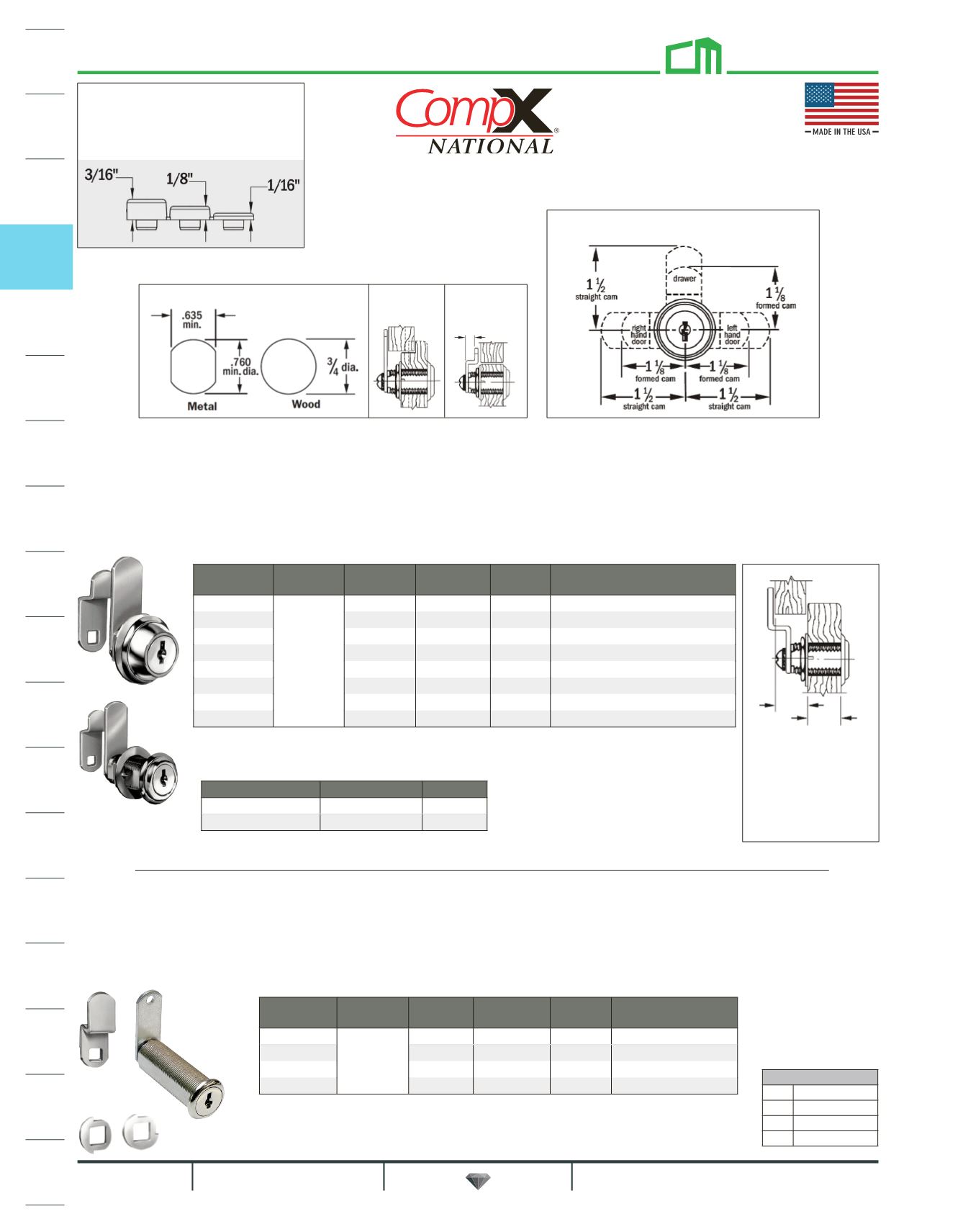

Disc Tumbler Cylinder Cam Locks
Finishes
3 Bright Brass
4G Antique Brass
14A Bright Nickel
BLK Black
APPLICATIONS- For drawers, LH or RH doors with lipped/overlay construction (straight cam) or flush construction (formed cam).
For overlay applications, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail.
OPERATION - 90° cam turn. Key removable in both locked and unlocked positions.
KEYING - Will key together with all other disc tumbler locks using D8785 key blank (special order). "C" locks are not masterkeyed.
For masterkeyed locks order masterkey separately.
PACKAGING - Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for metal)
is needed, order C2015-2C separately (special order). 25 locks per box.
APPLICATION - For drawers, LH or RH doors with lipped/overlay (straight cam), or flush construction (formed cam.) For overlay
application, the combined thickness of front & frame cannot exceed cylinder length. See overlay detail.
OPERATION - 90° or 180° cam turn. Key removable in both locked and unlocked positions.
KEYING - Will key together with all other disc tumbler locks using D8785 key blank (special order).
PACKAGING - Supplied with two keys, trim washer, spur washer for wood, mounting nut, two stop washers and two cams.
If flat washer (for metal) is needed, order C2015-2C (special order). 25 locks per box.
Overlay
The C8053 lock using
the C7014 cam accom-
modates overlay con-
struction using a 3/4"
thick front and 3/4" thick
frame.
180° 90°
C8060
C8061
C8051
C8052
C8053
C8054
C8055
Locks furnishedwith
cams unassembled.
Item No.
Type of
Mounting
Cylinder
Length
Max. Mat.
Thickness List Ea. Stock Key #s
Lipped/
Overlay
or Flush
1-3/4" 1-7/16" $19.10 346,413,415,420
1-3/4" 1-7/16" $28.08 346
C8060-BLK 1-3/4" 1-7/16" $29.34 C413A,C415A
C8061-14A 2" 1-13/16" $27.26 346
Cam Dimensions
3/4"
3/4"
Item No.
Type of
Mounting
Cylinder
Length
Max. Mat.
Thickness List Ea. Stock Key #s
Lipped/
Overlay
or
Flush
5/8" 15/64" $14.30 415
15/16" 5/8" $13.78 415
1-3/16" 7/8" $13.78 346,390,413,415,420,642,KD
1-3/16" 7/8" $18.86 346
1-3/16" 7/8" $18.86 346,413,415
C8053-BLK 1-3/16" 7/8" $22.14 C413A,C415A
1-7/16" 1-1/8" $14.30 346,413,415
1-7/16" 1-1/8" $17.92 415
All locks feature FlexaCam™
Three spacers enclosedwithmost CompX
National threadeddisc tumbler cam locks.
The three thicknesses provide up to 12
different dimensional variations.
Masterkeyed, keyed different
Item No. Description List Ea.
Cam Lock $16.34
Master Key $9.52
Lipped/
Overlay
Flush Mounting Holes for All Cam Locks
11/32
04/22
