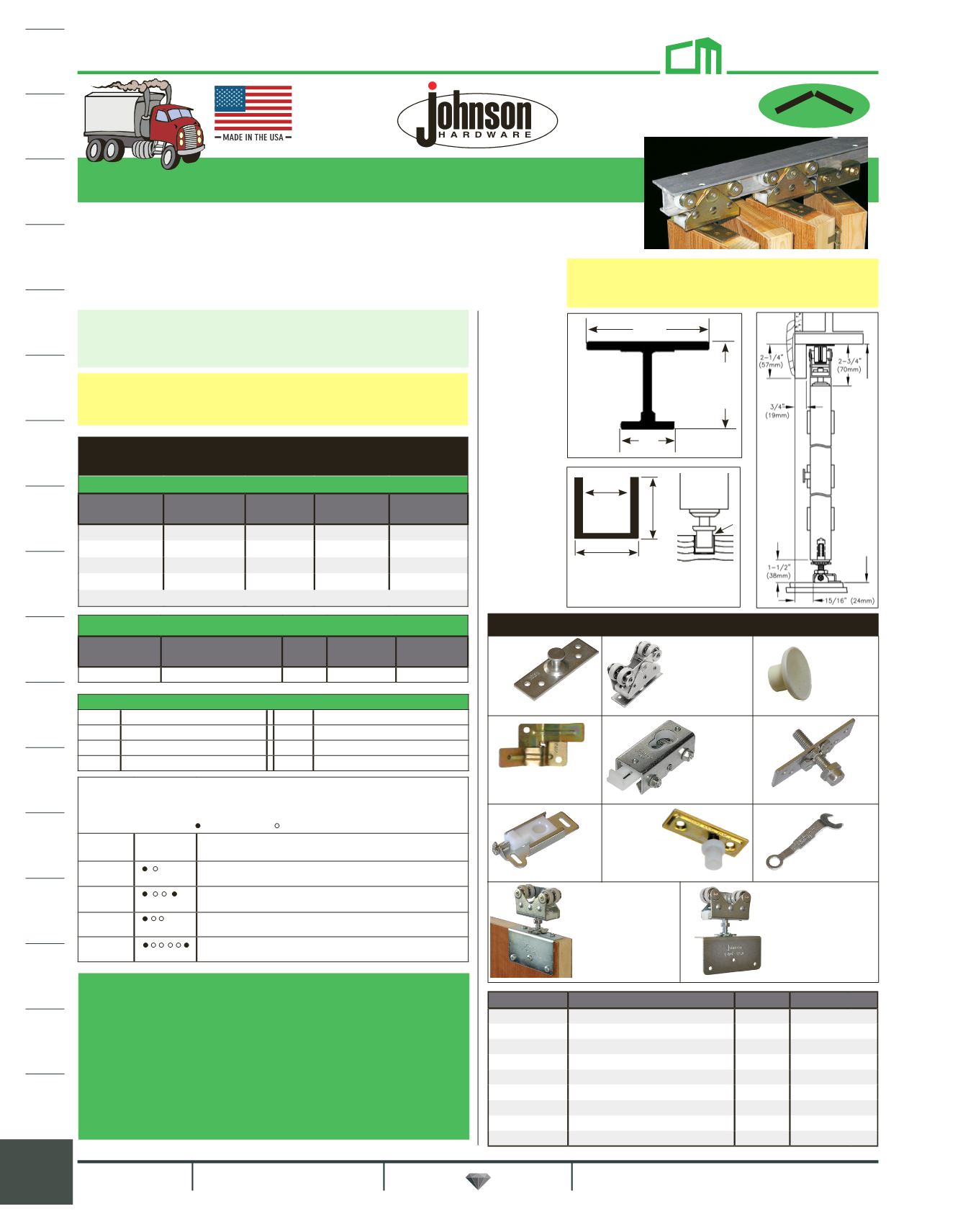

Charles McMurray Co. 2021 Catalog

1392 / 1590

JH200 Series Folding Door Hardware
For Two or Four Doors, 1-1/8" to 1-3/4" Thick
LTL ONLY
item on
this page
Order track, hinges and hardware set separately.
One hardware set will pivot two doors from a jamb. Order an
additional hanger for each additional pair of doors.
2-door Hardware Set Includes
2 ea top pivot 1 ea top pivot lock
1 ea hanger 1 ea bottom pivot
1 ea knob w/screw 1 ea floor bracket
1/2 pr aligner w/screw 1 ea wrench
• Heavy-duty precision extruded aluminum I-beam track
• 4-wheel hangers; large 1" diameter nylon wheels with ball-
bearing design, built-in height adjustment
• Heavy-duty top and bottom pivots
• Track can be cut-down to accommodate narrower panel/openings
• Commercial grade; also suitable for residential applications
Bottom Pivot
Floor Bracket
Top Pivot Lock
Hanger/Guide
1" dia. wheels Top Pivot
White
Knob
w/screw
Components & Accessories
Channel Guide
3/4x2-1/4" plate Wrench
finished height = door height + 4-1/4"
Aligner
Bulk Pack
Track, Hardware Set & Hinges sold separately
Track
Item No. Length Box List Ea.
List Ea.
Full Box
72" 5 $76.10 $64.68
96" 5 $100.10 $85.10
144" 5 $150.22 $127.68
192" 5 $198.78 $168.96
* Must ship LTL
2-Door Hardware Set (order hinges separately)
Item No. Description Box List Ea.
List Ea.
Full Box
Hardware Set 5 $92.74 $78.82
Two Doors on one side - Up To 125 lbs. Each
Two Doors on each side - Up To 125 lbs. Each
Four Doors on one side - Up to 75 lbs. Each
Maximum panel weight: 125 lbs. per panel
Maximum panel width: 48" per panel
Maximum panel height: 108"
NOTES:
For 4 doors, 2 from each side, order 2 hardware sets.
For 4 doors from one side order 1 hardware set and 1 hanger.
Minimum hinge size: 3" x 3" mortised hinge, 50 lbs. each.
For mortised hinges, see pages 1272-1275.
For folding door accessories/components see pages 1395-1399.
Installation videos are available at
Installation instructions are available at
under the Resources tab.
This track can also be used for:
Bypass Doors....... page 1364
Pocket Doors....... page 1378
Item No. Description Box List
72" Guide Channel 6 ea $13.94 ea
96" Guide Channel 12 ea $17.58 ea
144" Guide Channel 12 ea $25.88 ea
Top/Bottom Guide f/Channel 100 ea $3.00 ea
Wrench 100 ea $1.10 ea
Aligner 10 pr $2.22 pr
Hanger 25 ea $38.40 ea
Hanger, Side-Mount 1-3/8" 50 ea $45.60 ea
Hnager, Side-Mount 1-3/4" 50 ea $45.60 ea
V
V V
W
W W
Ordering Information
For more stable installation, an even number of doors in each direction
is recommended. For arrangements not show, add one carrier for every
2 additional doors. Jamb Pivot Carrier
No. of
Doors Layout What or Order
2 Track, 1 hdwe set
4 Track, 2 hdwe sets
4 Track, 1 hdwe set, 1 carriers
8 Track, 2 hdwe sets, 2 carriers
3-1/2x1-1/4"
plate
1050 Optional Channel Profile
(order guide also)
5/8"
16mm
5/8"16mm
1705
1050
1/2"
1-7/8"
1-19/64"
7/8"
hanger
Side mount
f/1-3/8" doors.
1" dia. wheels.
hanger
Side mount
f/1-3/4" doors.
1" dia. wheels.
