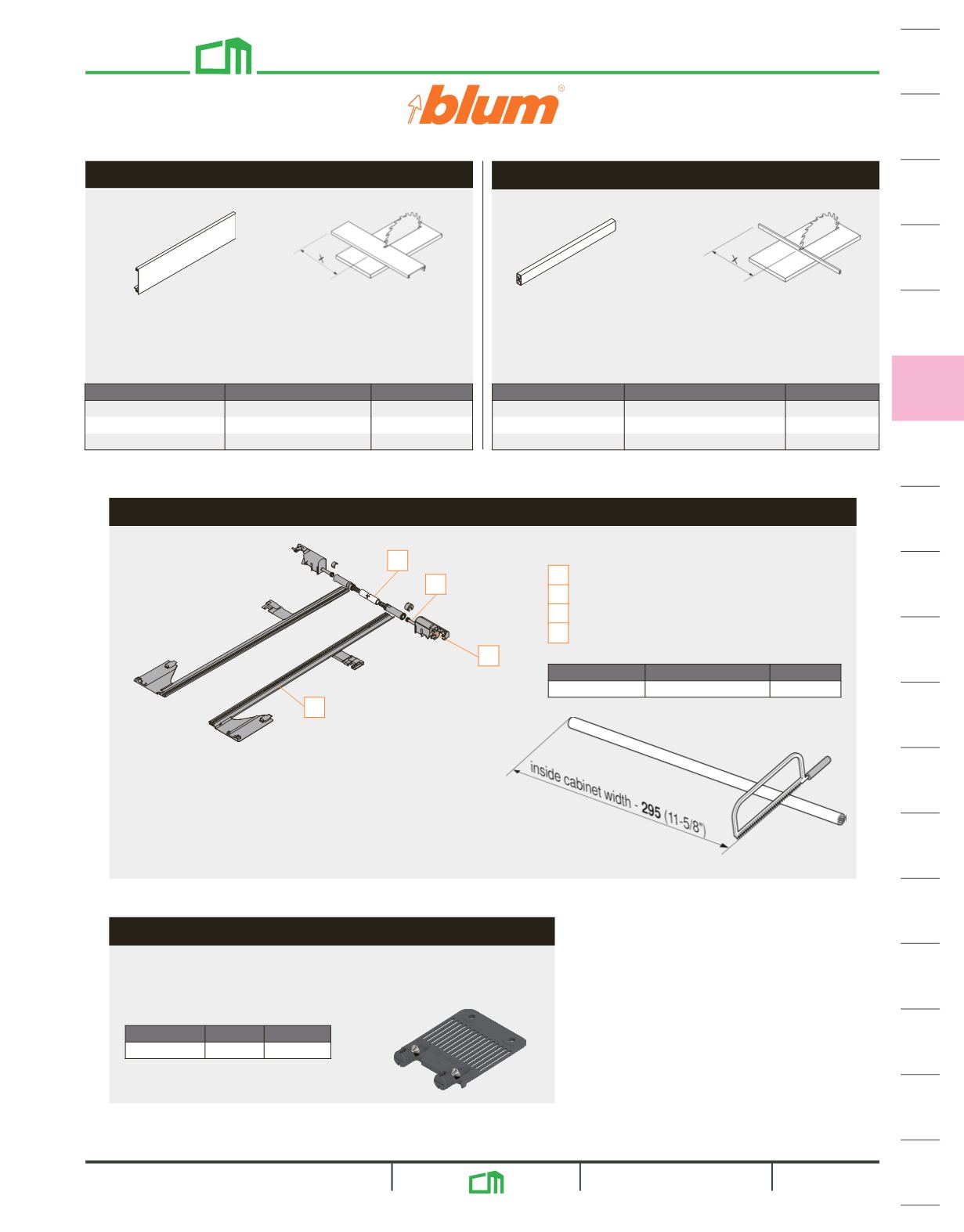

Lateral Stabilizer Bracket

Front Piece for Interior Roll-Outs

3

1

2

4

Set includes:

1

Linkage rod, 1400 (55-1/8") cut-to-size

2

Pinion gears (qty 2)

3

Rear brackets, left and right

4

Gear racks, left and right

Set No.

Runner Length List Set

BZS7M650LU 450-600 (18"-24") $79.70

Lateral Stabilizer Set

Length: 1043 mm (41-1/16")

Cut-to-size using a metal cutting blade.

X=inside cabinet width minus 126 (5")

Height: 96mm (sits flush with top of M height drawers)

Item No.

Finish

List Ea.

BZV7.1043C01-ELN2 Brushed Nickel

$131.94

BZV7.1043C01-OGM

Gray

$55.42

BZV7.1043C01-SWM

White

$56.52

Cross Gallery Rail for Interior Roll-Outs

Item No.

Finish

List Ea.

BZR7.1080U-ELN2

Brushed Nickel

$89.20

BZR7.1080U-OGM

Gray

$25.50

BZR7.1080U-SWM

White

$23.50

Length: 1080 mm (42-1/2")

Cut-to-size using a metal cutting blade.

X=inside cabinet width minus 90 (3-1/2")

LEGRABOX Components

• Used for stabilizing wide drawers and/or tall drawer fronts

• Reinforces the connection between the drawer bottom & the front

• One required per drawer, center on drawer bottom

Item No. Finish List Ea.

BZ96.10E1 Gray $6.50

Linkage rod specifications:

Length = inside cabinet width minus 295 (11-5/8")

Maximum inside cabinet width 1400 (55-1/8")

Recommended for cabinet widths from 900-1400 mm (35-7/16" - 55-1/8")

Minimum space requirement (depth) = actual cabinet profile length +15 (19/32")
