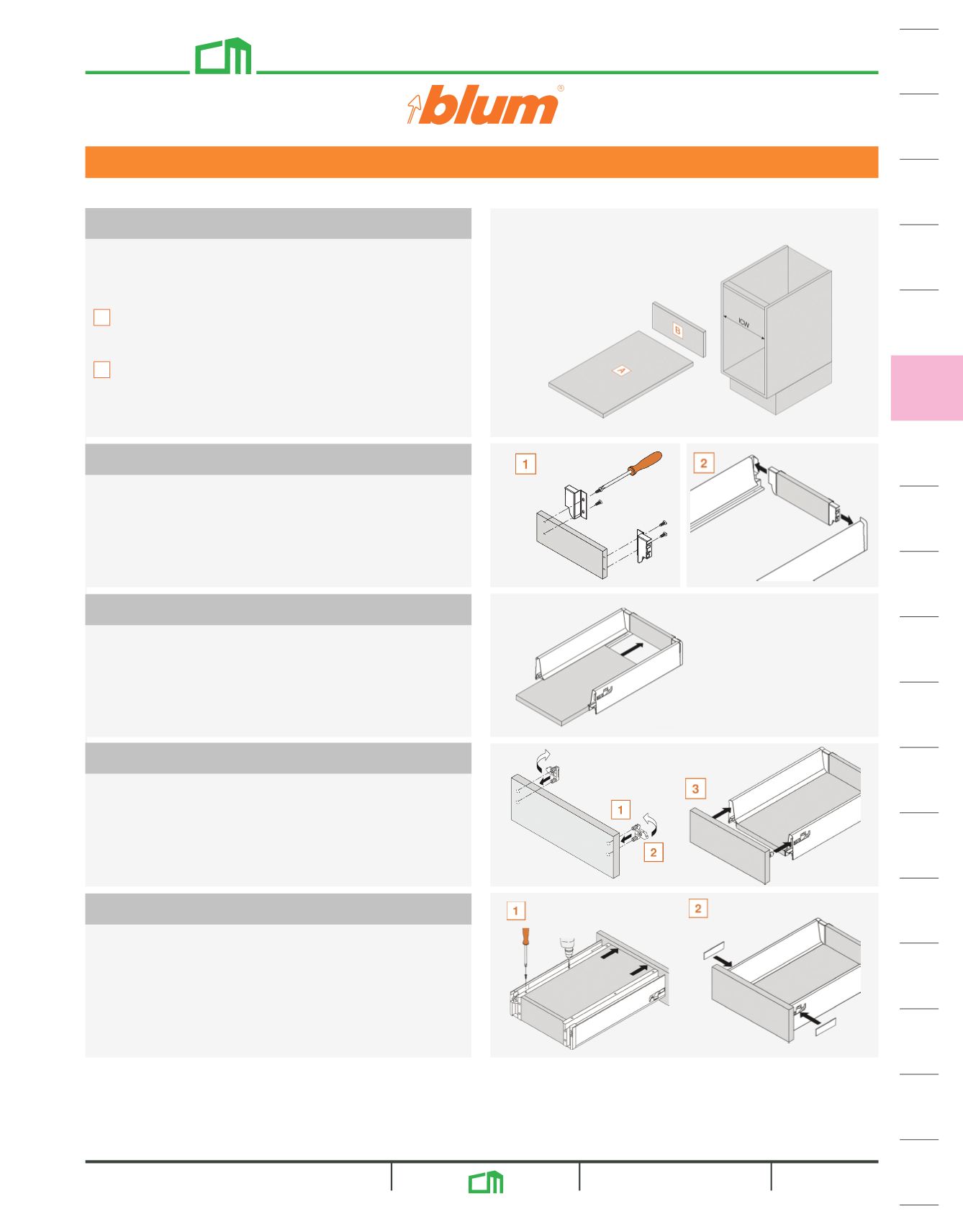

Using TANDEMBOX with Integrated BLUMOTION
Push the drawer bottom flush with the front of the drawer.
Pre-bore and attach with #6 x 1/2" wood screws .
Attach cover caps to drawer side.
Follow the installation drawing for locating hole positions for front
fixing brackets (and optional gallery rods if used) and pre-bore
the necessary INSERTA Ø10 mm x 12 mm holes (screw-on ver-
sion also available.) Attach front fixing brackets and snap drawer
front onto drawer.
The drawer bottom slides into the drawer profiles.
Rear fixing brackets are attached with #6 x 1/2" truss head
screws . The drawer back, with rear fixing brackets
attached, snaps into the rear of both drawer profiles.
Use inside cabinet width (ICW) to calculate the drawer bottom and
back dimensions. Formulas are found on the specification page of
each application.
B Drawer Back
Width = interior cabinet opening width -87 mm (3-7/16")
Height = 84 mm (3-5/16")
NOTE: Use 16mm (5/8") material for bottom and back.
NOTE: Minimum inside cabinet width = 125 (4-15/16")
Step 5: Attach drawer bottom with screws
Step 4: Attach drawer front
Step 3: Slide drawer bottom into drawer sides
Step 2: Attach drawer back
Step 1: Measure inside cabinet width (ICW)
M height example:
A Drawer Bottom
Width = interior cabinet opening width -75 mm (2-15/16")
Length = actual cabinet profile length -24 mm (15/16")
