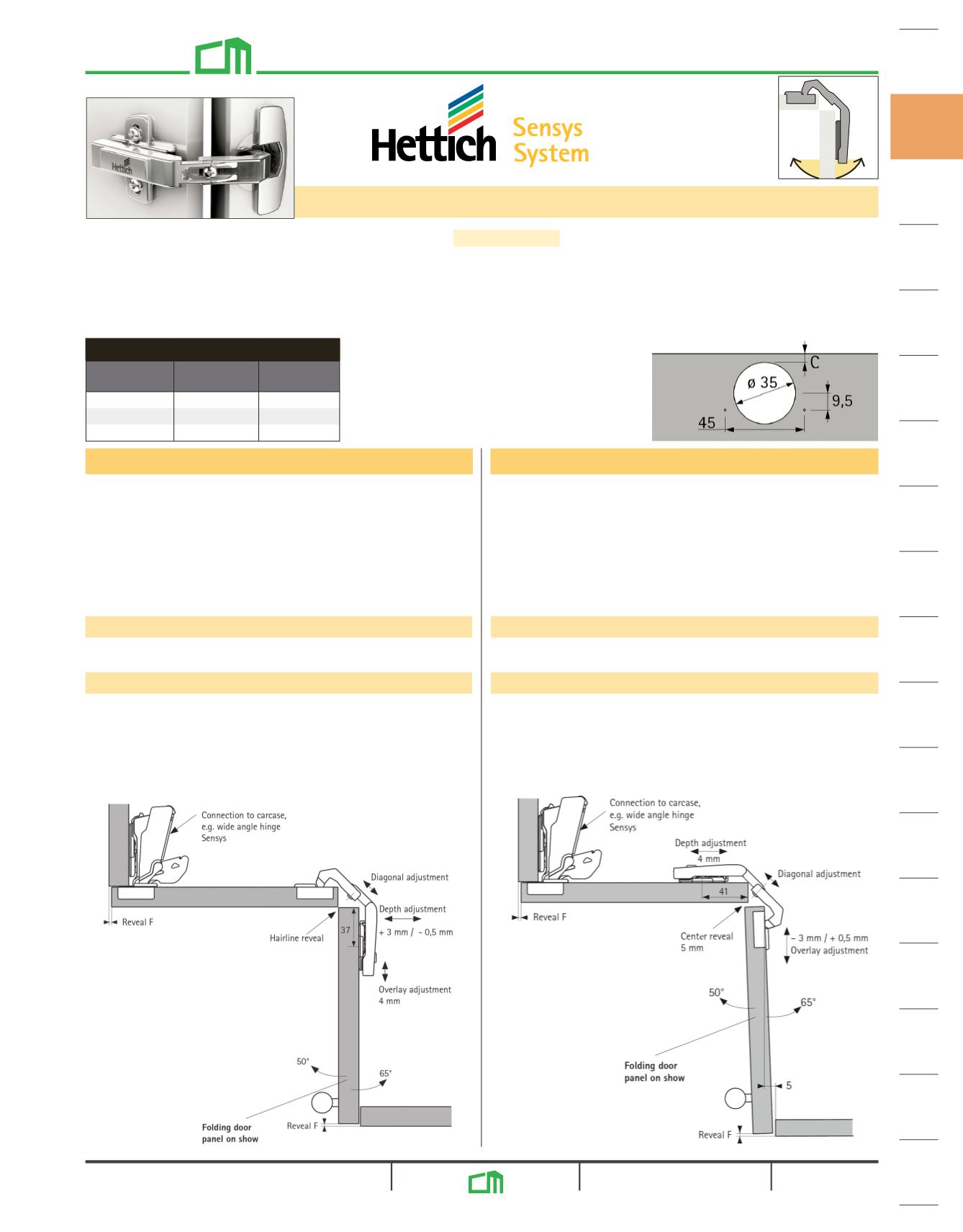

50° / 65° Opening Angle Hinges For Corner Cabinet Folding Doors
Overlay Hinges
Item No. Description
List Ea.
50
HT9090115Screw-on $12.80
HT9090116Press-in $13.82
HT9090119Fix Fast
$15.44
VERSION A - cup drill holes in one door
• All cup drillings in one door
• Hairline reveal can be provided between door units
• No cutaway in cup holes necessary
• Same door width for both elements
• Diagonal adjustment capability for easy adjustment to door thickness
• Same cup distance on both sides of side mounted door
• Hole line distance of 37mm in the folding door panel
• For door thickness 16 - 21mm
• Cup distance C 3 - 6mm
VERSION B - cup drill holes in both doors
• Both door units are the same
• No cutaway in cup holes necessary
• Diagonal adjustment capability for easy adjustment to door thickness
• Hole line distance of 41 mm in the folding door panel
• For door thickness 16 - 21 mm
• Cup distance C 3 - 6 mm
Calculation of door width
Calculation of door width
Calculation of mounting plate distance
Calculation of mounting plate distance
Door width = cabinet width - reveal F - door thickness
Door width = cabinet width - reveal F - door thickness - 5 mm
For cup distance C = 4.5 mm: Distance D = 0 mm
For cup distance C = 3.0 mm: Distance D = 1.5 mm
Differing cup distances can be evened out by depth and diagonal
adjustment capability.
For cup distance C = 4.5 mm: Distance D = 0 mm
For cup distance C = 3.0 mm: Distance D = 1.5 mm
Differing cup distances can be evened out by depth and diagonal
adjustment capability.
65°
50°
• Available in
Free Swinging
• Cup diameter 35mm
• Cup depth 12.8mm
• Diagonal adjustment + 9.5 mm / -9.5 mm
• Integrated overlay & depth adjustment - see diagrams
• Height adjustment at mounting plate
• Zinc die-cast and nickel-plated steel
