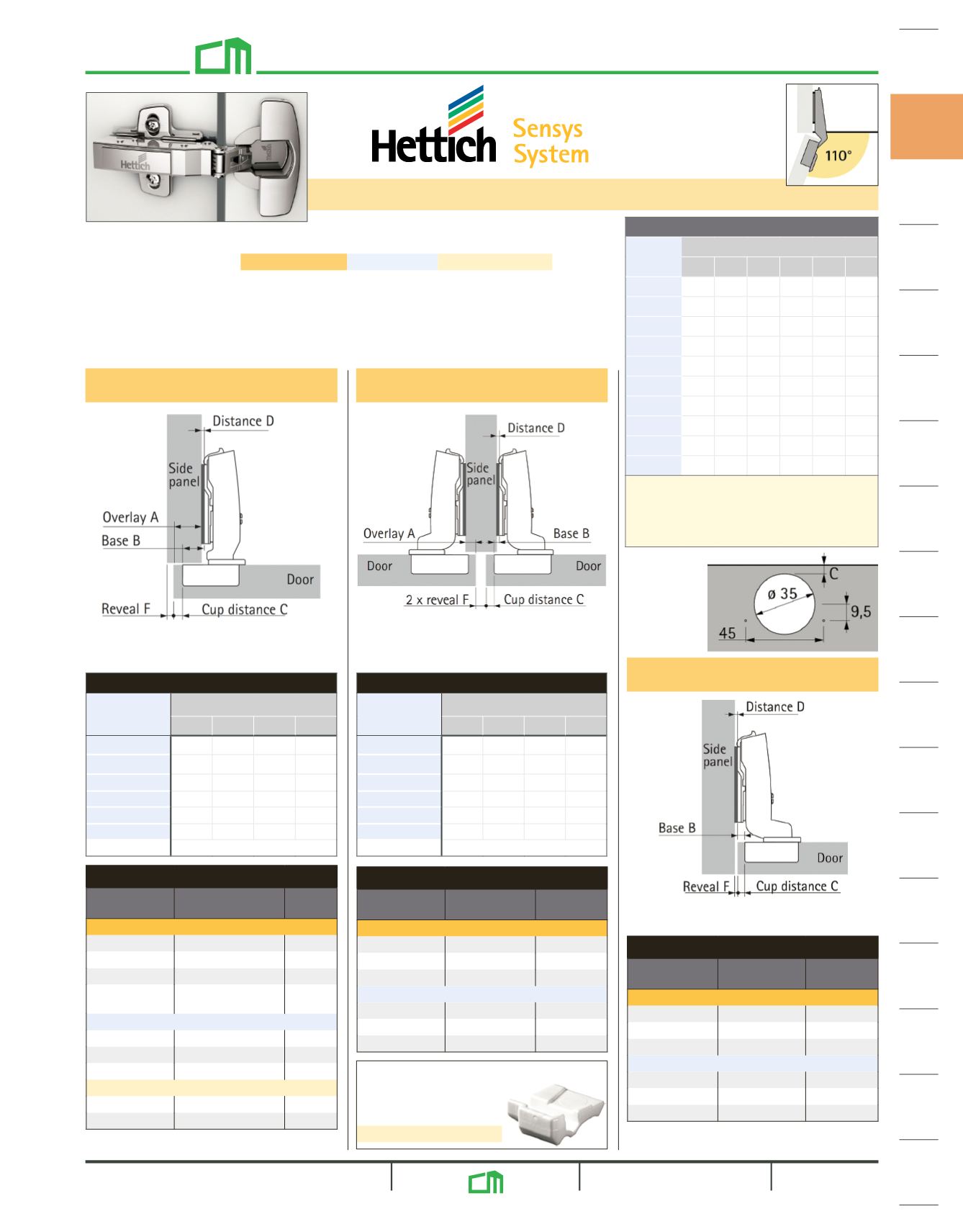

Charles McMurray Co. 2023 Catalog

237 / 1645

110° Hinges
Overlay Hinges
Item No. Description
List
Ea. 50
Silent System (Soft-Close)
Screw-on $6.02
HT9071226 Press-in $6.34
HT9073626 Fix Fast $7.28
89 ExpandingDowel $10.68
Self-Close
HT9073647 Screw-on $4.26
HT9073650 Press-in $4.60
HT9073653 Fix Fast $5.12
Free-Swinging
Press-in $9.14
677 Fix Fast $6.98
Half Overlay Hinges
Item No. Description
List Ea.
50
Silent System (Soft-Close)
HT9073618 Screw-on $6.50
HT9073621 Press-in $6.74
627 Fix Fast $8.32
Self-Close
HT9073648 Screw-on $4.60
HT9073651 Press-in $4.86
654 Fix Fast $5.76
Inset Hinges
Item No. Description
List Ea.
50
Silent System (Soft-Close)
HT9073619 Screw-on $6.90
HT9073622 Press-in $7.24
HT9073628 Fix Fast $8.20
Self-Close
HT9073649 Screw-on $4.86
HT9073652 Press-in $5.12
HT9073655 Fix Fast $5.98
(If boring at 5mm, 3mm baseplate must be used
to get full inset.)
Minimum Reveal Table
Door
Thickness
Cup Distance C
3 4 4.5 5 6 7
15 0.2 0.2 0.2 0.2 0.2 0.2
16 0.3 0.3 0.3 0.3 0.3 0.3
17 0.4 0.4 0.4 0.4 0.4 0.4
18 0.6 0.6 0.6 0.6 0.6 0.5
19 0.8 0.8 0.8 0.8 0.7 0.7
20 1.1 1.0 1.0 1.0 1.0 0.9
21 1.4 1.3 1.3 1.3 1.2 1.2
22 2.2 1.8 1.7 1.6 1.6 1.5
23 3.0 2.6 2.4 2.2 2.0 1.9
24 3.9 3.4 3.2 3.0 2.6 2.4
The table entries refer to doors with an edge
radius of 1 mm. On doors with other radii, the
minimum reveal changes as follows:
Radius 0 mm: Values shown in table + 0.4 mm
Radius 3 mm: Values shown in table - 0.6 mm
Overlay Half Overlay
Inset
Distance D = C + B - A
=cupdistanceC+12.5mm-overlayA
Distance D = C + B - A
=cupdistanceC+3mm-overlayA
Distance D = C + B + F
= cup distance C - 4 mm + reveal F
Full Overlay 0 mm
Mounting
Plate
Distance
Cup Distance C
3 4 5 6
0 mm 16 17 18 19
1.5 mm 14.5 15.5 16.5 17.5
3 mm 13 14 15 16
4.5 mm 11 12 13 14
5 mm 11 12 13 14
8 mm 8 9 10 11
Overlay
Half Overlay 9.5 mm
Mounting
Plate
Distance
Cup Distance C
3 4 5 6
0 mm 6.5 7.5 8.5 9.5
1.5 mm 5 6 7 8
3 mm 3.5 4.5 5.5 6.5
4.5 mm 1.5 2.5 3.5 4.5
5 mm 1.5 2.5 3.5 4.5
8 mm -1.5 -0.5 0.5 1.5
Overlay
• For door thickness 15 - 24 mm
• Available in Silent System Self-Close Free-Swinging
• Cup depth 12.8 mm
• Integrated overlay adjustment + 2mm / - 2 mm
• Integrated depth adjustment + 3 mm / - 2 mm
• Height adjustment at mounting plate
• Nickel-plated steel
Opening angle restrictor
for Sensys 110° hinges
(restricts angle
from 110° to 85°)
See pg. 244 for pricing
