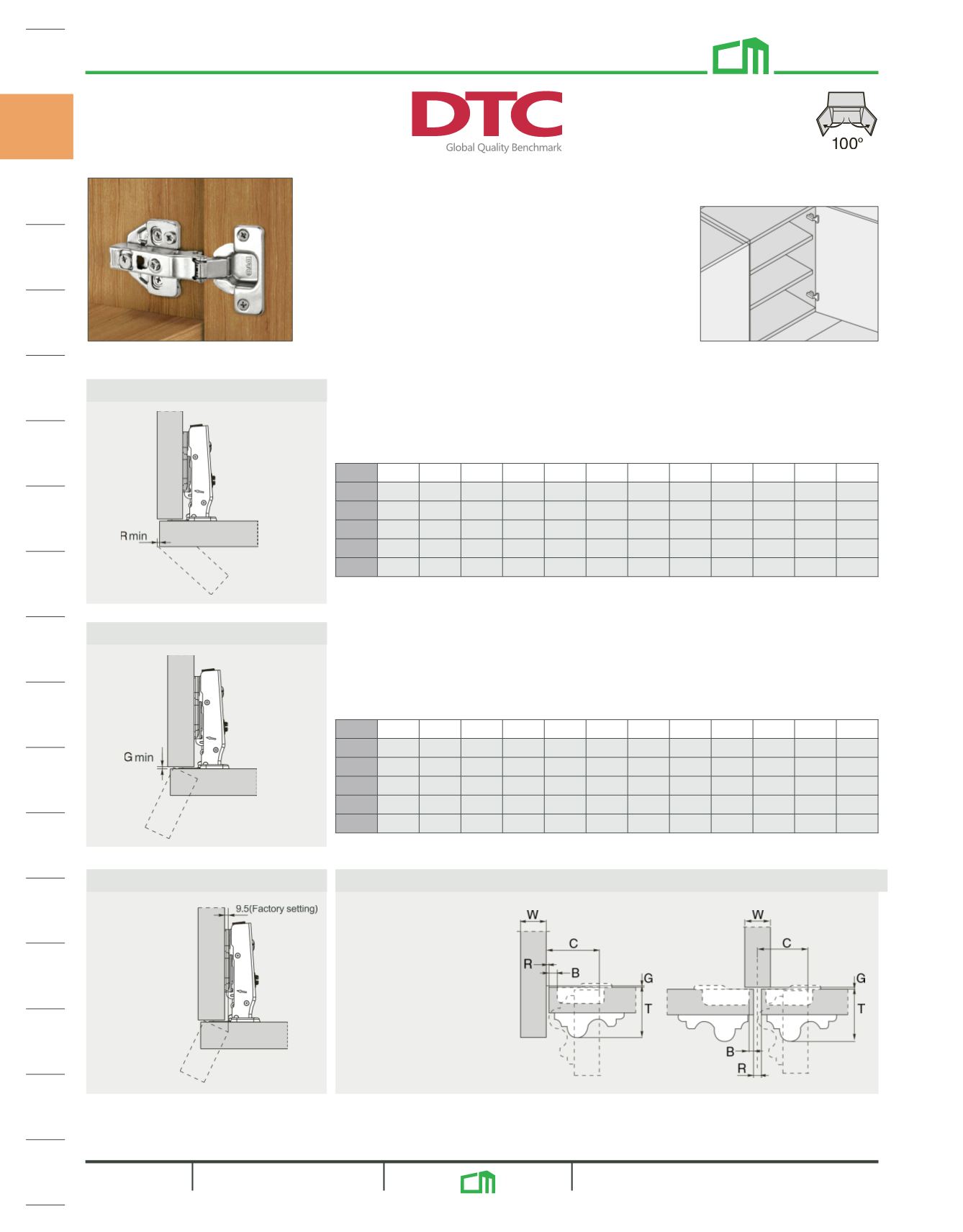

C85 Series 100° Pivot-Pro Hinge
• Snap-on, cam-adjustable
• Available in soft-close and self-close
• Hinge cup depth: 3/8" (10 mm)
• Hinge cup diameter: 1-3/8" (35 mm)
• Possible drilling distance on door (B):
1/8" to 1/4" (3-7 mm)
B T= 14 15 16 17 18 19 20 21 22 23 24
3
R= 0.2 0.4 0.6 0.8 1.1 1.5 2.0 2.7 3.5 4.3 5.1
4
R= 0.2 0.4 0.6 0.8 1.1 1.4 1.9 2.4 3.1 3.9 4.7
5
R= 0.2 0.3 0.5 0.8 1.0 1.4 1.8 2.3 2.9 3.5 4.3
6
R= 0.2 0.3 0.5 0.7 1.0 1.3 1.7 2.1 2.6 3.3 4.0
7
R= 0.2 0.3 0.5 0.7 0.9 1.2 1.6 2.0 2.5 3.0 3.7
T= Door thickness
B = Cup hole drilling distance from door edge
Space needed to open door
Space needed to open door
Door Projection
B T= 14 15 16 17 18 19 20 21 22 23 24
3
G= 0.0 0.0 0.1 0.1 0.3 0.5 0.7 0.8 1.0 1.2 1.4
4
G= 0.6 0.8 1.0 1.1 1.3 1.5 1.7 1.8 2.0 2.2 2.3
5
G= 1.6 1.8 1.9 2.1 2.3 2.5 2.6 2.8 3.0 3.1 3.3
6
G= 2.6 2.8 2.9 3.1 3.3 3.4 3.6 3.8 4.0 4.1 4.3
7
G= 3.6 3.7 3.9 4.1 4.3 4.4 4.6 4.8 5.0 5.1 5.3
The above values are calculated for square edges. They are reduced if doors have radiused edges.
"C" Value
C = 19 + B + R
Projection of
door from cabinet
side at the max
opening. Figures
are based on
a straight arm
hinge, H = 0mm
mounting plate
and drilling
distance
(B) = 3mm.
Use this formula to configure
max moulded door thickness
for opening without touching
adjacent cabinet sides, doors
or walls with the above B-G-T
values.
