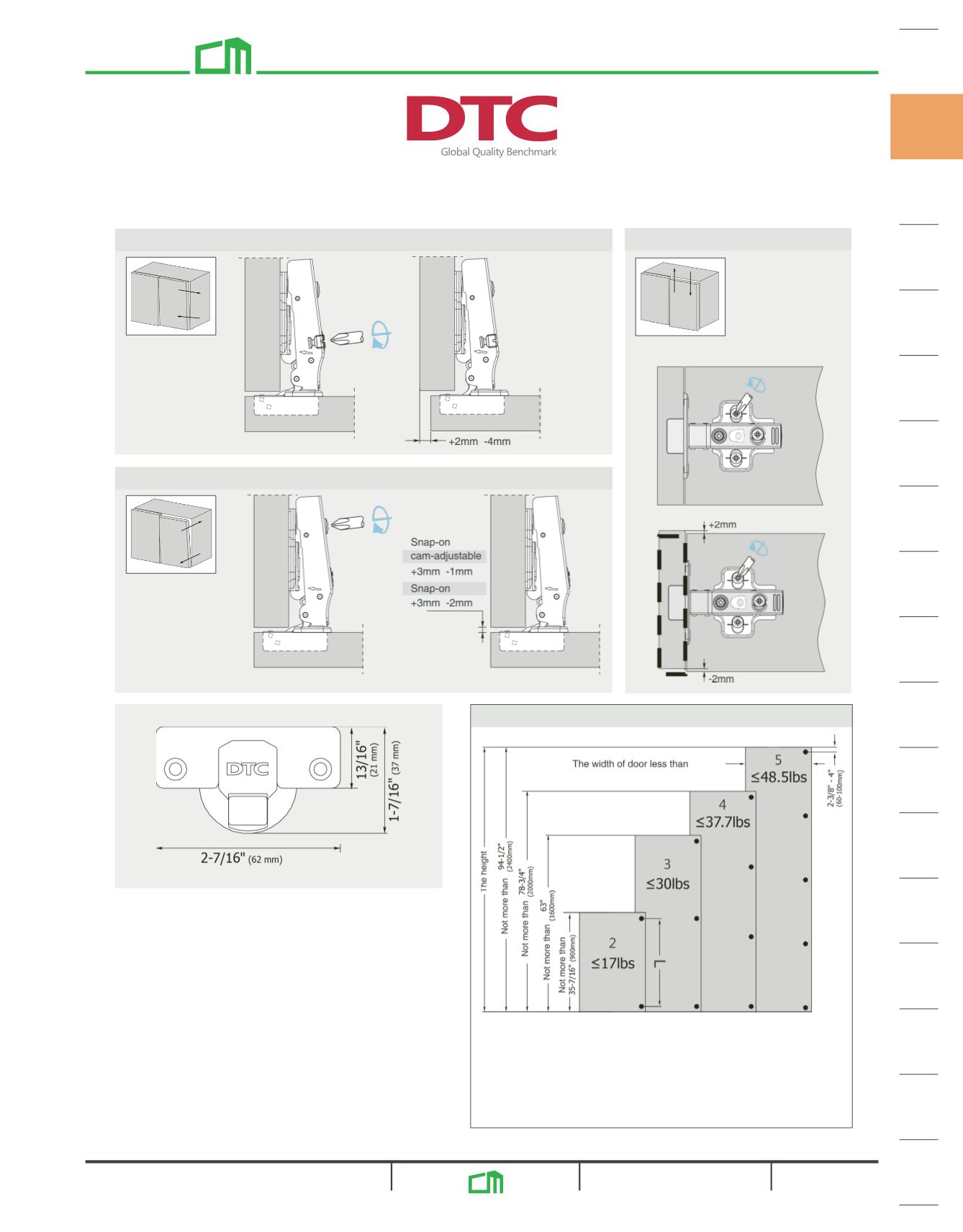

C85/C80 Series Pivot-Pro Hinges
Door Projection
Three-Dimensional Adjustment
Side adjustment
(-4 to +2 mm)
Depth adjustment
(-1 to +3 mm Snap-on cam-adjustable/ -2 mm to +3 mm Snap-on)
Height adjustment
(±2 mm)
Rotate indicated
screw to increase
or decrease door
overlay.
Depth adjustment
is made without
loosening any screw.
The door can be
moved in or out by
rotating the hinge
arm cam adjuster.
Loosen the two
fixing screws to
allow the mounting
plate to slide up
and down. Adjust
door vertically, then
re-tighten screws.
L = distance between hinges
The number of hinges needed depends on three factors: Height,
width and weight of door. Performance is best when distance (L) is
as far apart as possible on doors with two hinges. This is especially
important for doors that are wider than they are tall to prevent sag.
