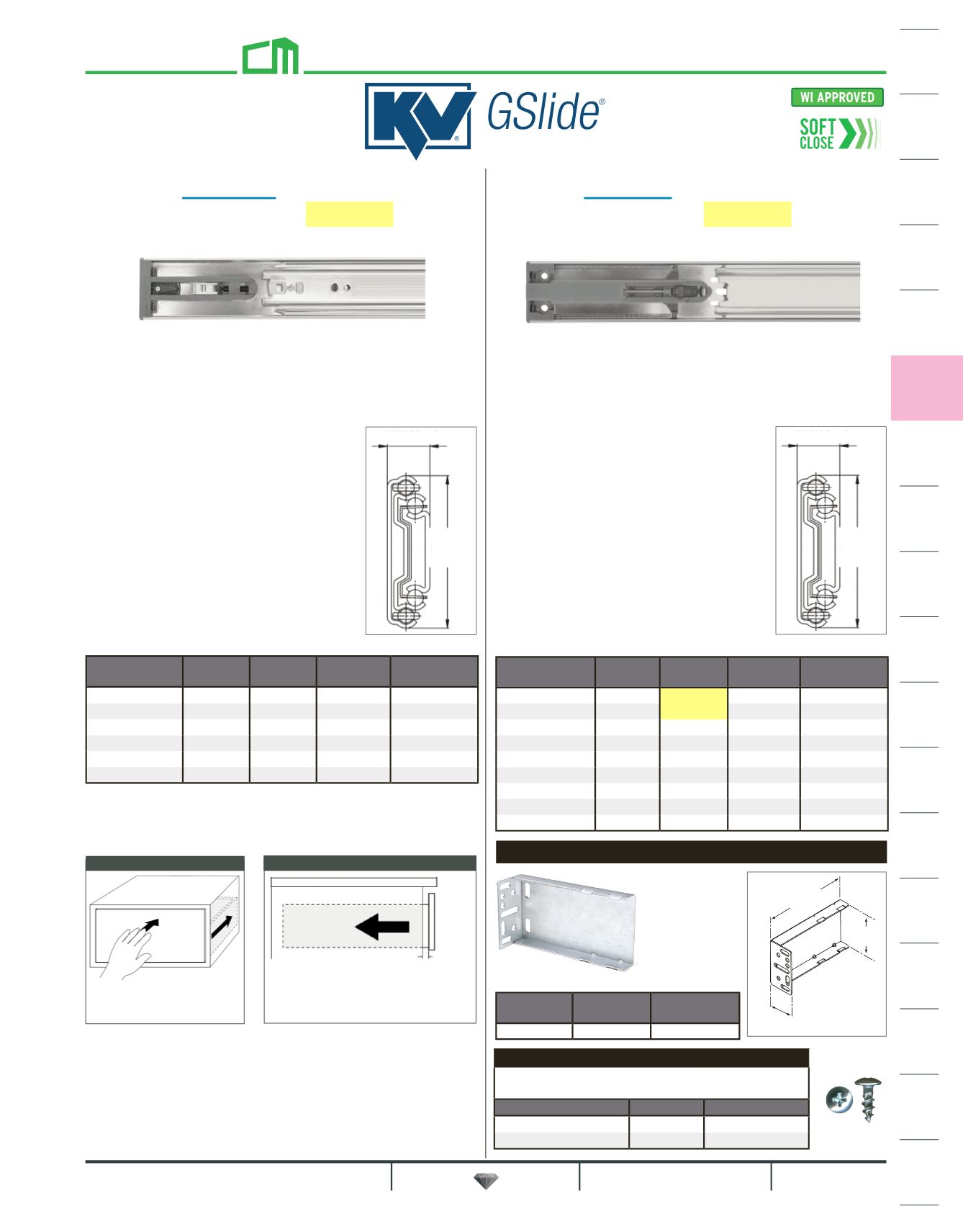

Charles McMurray Co. 2021 Catalog

485 / 1590

KVGS4260 Series
Push-Open Drawer Slide
Full Extension (12"-22")
Side Mount - 100 lb. Capacity
10 pair per box without screws. Sold per pair.
Item No. Length Travel List Pair
List Pair
10
12" 12.00" $34.60 $30.68
14" 14.00" $35.62 $31.58
16" 15.98" $36.94 $32.76
18" 17.99" $37.12 $33.14
20" 20.00" $39.00 $34.82
22" 22.00" $41.72 $37.26
Features:
• 32 mm & traditional hole patterns
• Face frame mounting hole
• Telescopic movement on ball-bearings
• Non-handed lever disconnect
• 1/2" side clearance
• Height: 45.5 mm (1.79")
• Zinc finish
• Meets BHMA test standards
• Maximum drawer width 24"
The push-to-open feature automatically rebounds the drawer
open when activated. For use where there are no knobs or pulls
required or where hands-free drawer access may be desired, such
as waste/recycle drawers and inset drawers. Can also be used with
full overlay drawer fronts if there is at least a 4 mm gap between
the cabinet and drawer fronts to allow sufficient space to activate
the push-open module.
3.54"
(90 mm)
1.89"
(48.1 mm)
1.08" (27.2mm)
Features:
• 32 mm & traditional hole patterns
• Face frame mounting hole
• Telescopic movement on ball-bearings
• Non-handed lever disconnect
• Flexible mounting tabs self-adjust to side clearance
• 1-1/2" soft-close stroke
• 1/2" side clearance
• Height: 45.5 mm (1.79")
• Zinc finish
• Meets BHMA test standards
• Maximum drawer width 24"
KVGS4270 Series
Soft-Close Drawer Slide
Full Extension (16"-28")
Side Mount - 100 lb. Capacity
10 pair per box without screws. Sold per pair.
Item No. Length Travel List Pair
List Pair
10
12" 8.39" $34.92 $31.18
14" 11.93" $35.02 $31.34
16" 15.90" $36.16 $32.36
18" 17.91" $36.20 $32.38
20" 19.88" $38.44 $34.38
22" 21.85" $39.92 $35.80
24" 23.82" $46.44 $41.46
26" 25.79" $48.88 $43.64
28" 27.76" $51.40 $45.90
Mounting Brackets f/KVGS4260 & 4270
Rear mounting bracket. Sold per pair.
Item No. List Pair
List Pair
100
$13.90 $12.16
1/2" (12.7 mm)
1.79"
(45.5 mm
±0.3)
4 mm ± .5
Allow a minimum of 4 mm ± .5 mm clear-
ance between drawer front and cabinet to
provide enough space to activate push-to-
open mechanism.
Push in 2 mm and release to
activate push-to-open
mechanism.
Inset Drawer Overlay Drawer
1/2" (12.7 mm)
1.79"
(45.5 mm
±0.3)
Screws
#8 x 7/16" coarse thread, trusshead, #2 phillips.
Sold per box.
Item No. Box List Box
1c $5.88
10c $38.60
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING & DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
SLIDES
800.533.0533 2021 1946 485 Prices subject to change without notice.
