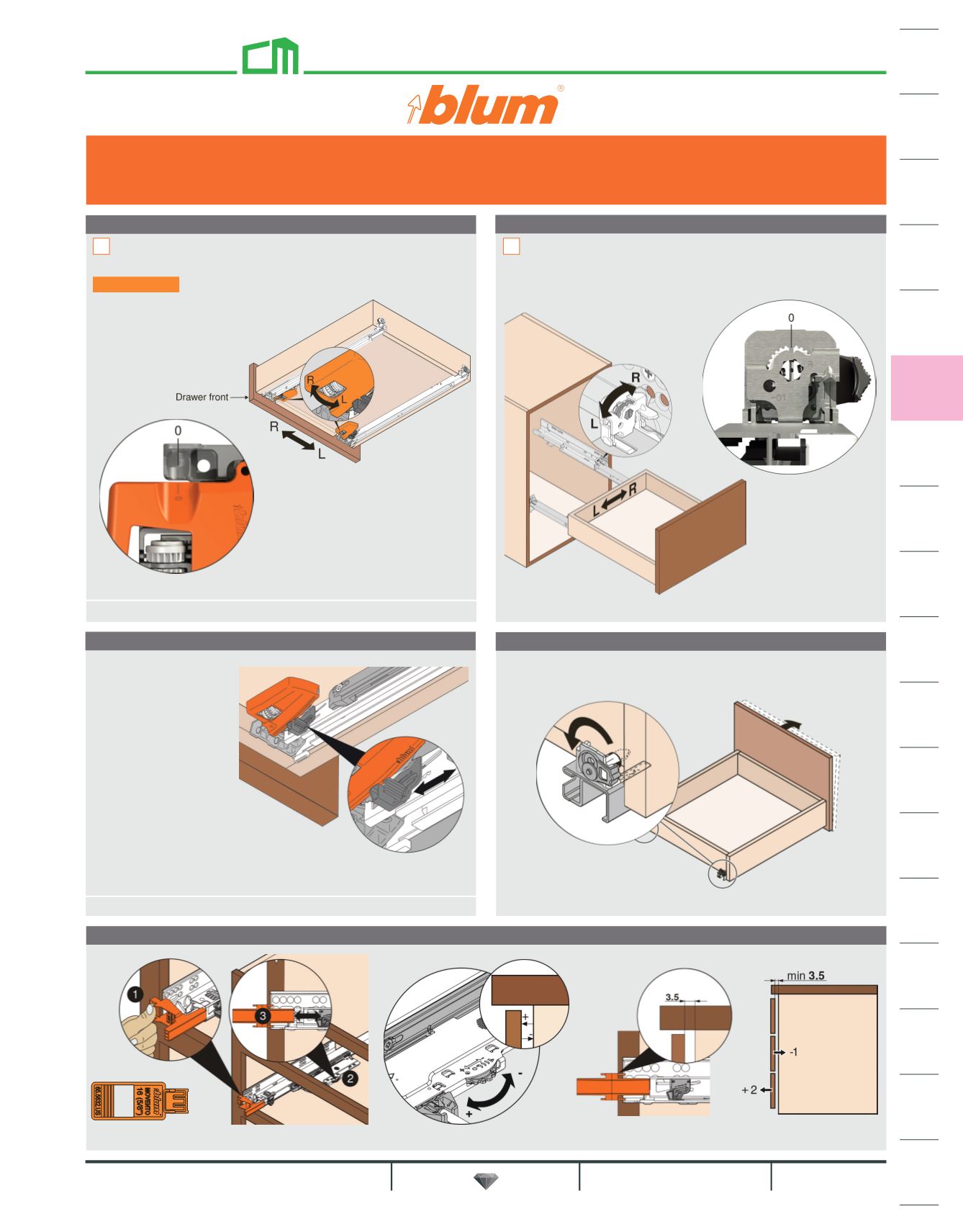

Tilt adjustment
MOVENTO 763./769. Series For Wood Drawers
General Specifications
xx
Height adjustment
Rotate side-to-side adjustment left or right equally on both locking
devices. Drawer front moves in the same direction as rotation.
with side-to-side adjustment
After front side-to-side adjustment is made with the locking
devices, rotate the rear side-to-side adjustment left or right to
re-align the back of the drawer box with the front. Drawer back
moves in the same direction as rotation.
Maximum 1.5 (1/16") to left or right (tool-free)
Maximum 1.5 (1/16") to left or right (tool-free)
NOTE: Not available on narrow locking devices
Front side-to-side adjustment Rear side-to-side adjustment
2 1
Maximum 3 (1/8") rise of drawer front (tool-free)
NOTE: Height adjustment available on all MOVENTO runners
Press up on adjustment
tab and push toward
back of drawer.
Rotate the tilt adjustment lever on the rear of each runner to tilt
the top of the drawer front forward
Maximum 5 (3/16") rise of drawer back (tool-free)
Depth adjustment
NOTE: Using the front gap template is highly recommended. Adjust left and right runner.
