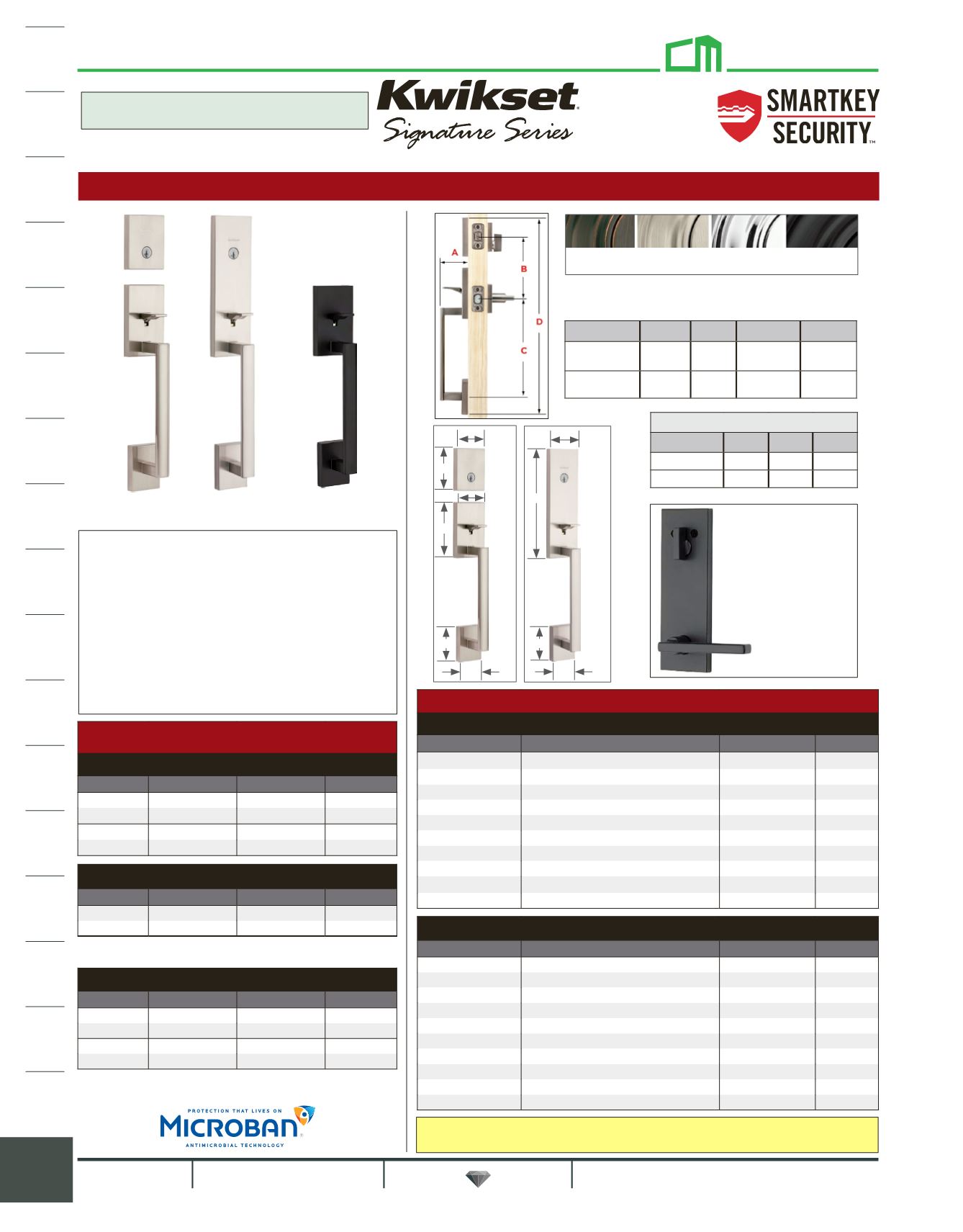

NOTES: You must use KW971/973 interior trims with these handlesets.
KW971/973 interior trims cannot be used with other handleset series.
Prices shown are Kwikset's List Prices
from July 2022 Box Pack Price Guide.
Door Prep: Cross Bore: 2-1/8"
Edge Bore:1"
Latch Face: 1" x 2-1/4"
Backset Adjustable 2-3/8" or 2-3/4"
Door Thickness: 1-3/4"
Cylinder: SmartKey
Faceplate: 1" x 2-1/4", radius corner
Strikes Deadbolt: 1-1/4" x 3-5/8", 1/4" radius corner
Handle: 2-1/4" full lip 1/4" radius corner
Bolts Deadbolt: 1" throw
Handle: 1/2" throw
ANSI/BHMA: Deadbolt is Grade 1
Vancouver deadbolt is Grade AAA
Lifetime warranty on finish & mechanical
Style A B C D
San Clemente 2-5/8" 5-1/2" 8-13/32"-9-11/16" 17-15/16"
Vancouver 2-5/8” 5-1/2” 8-13/32”-9-11/16” 17-15/16”
Trim Measurements
Style A B C
San Clemente 3-1/2" 4-5/8" 2-3/16"
Vancouver 9-1/8” --- 2-3/16”
2-3/4"
2-3/4"
A
B
3"
C
Exterior Trim Designs
Active Exterior Trims
Item No. Style Finishes List Ea.
San Clemente 11P*, 15*, 26 $327.80
514* $339.10
Vancouver 11P*, 15* $340.20
514* $351.50
Exterior Handle Only (no deadbolt)
Item No. Style Finishes List Ea.
San Clemente 15* $250.70
514* $262.00
See page 1232a for San Clemente deadbolt.
Dummy Exterior Trims
Item No. Style Finishes List Ea.
San Clemente 11P*, 15*, 26 $293.80
514* $305.10
Vancouver 11P*, 15* $306.20
514* $317.50
*Features Microban® antimicrobial finish.
818/819 Series Heavy-Duty Handlesets
Order exterior and interior trims separately. Interior trims are shown below.
A
C
2-3/4"
3"
818 San 818 814 San
Clemente Vancouver Clemente
Interior Trim Designs
Active Interior Trims - Single Cylinder Deadbolt
Item No. Style Finishes List Ea.
KW971BRNLSQT Breton Lever - Square Backplate 15, 26, 514 $72.90
KW971CSLSQT Casey Lever - Square Backplate 15, 26, 514 $72.90
KW971HFLRCT Halifax Lever - Rectangle Backplate 15, 514 $81.00
Halifax Lever - Full Square Backplate 514 $92.30
Halifax Lever - Square Backplate 11P, 15, 514 $81.00
KW971LSLSQT Lisbon Lever - Square Backplate 11P, 15, 514 $81.00
Milan Lever - Round Backplate 15, 514 $81.00
Montreal Lever - Square Backplate 11P, 15, 514 $81.00
Pismo Knob - Round Backplate 15, 514 $67.20
Pismo Knob - Square Backplate 11P, 15, 26, 514 $67.20
Dummy Interior Trims for 819 Series
Item No. Style Finishes List Ea.
Breton Lever - Square Backplate 15, 26, 514 $61.60
KW97 Casey Lever - Square Backplate 15, 26, 514 $61.60
KW973HFLRCT Halifax Lever - Rectangle Backplate 15, 514 $67.20
Halifax Lever - Full Square Backplate 514 $78.50
Halifax Lever - Square Backplate 11P, 15, 514 $67.20
KW973LSLSQT Lisbon Lever - Square Backplate 11P, 15, 514 $67.20
Milan Lever - Round Backplate 15, 514 $67.20
Montreal Lever - Square Backplate 514 $67.20
Pismo Knob - Round Backplate 15, 514 $53.40
Pismo Knob - Square Backplate 26, 514 $53.40
11P Venetian 15 26 Polished 514
Bronze Chrome Matte Black
Interior Trim - Halifax
Lever with a Full
Square Backplate
