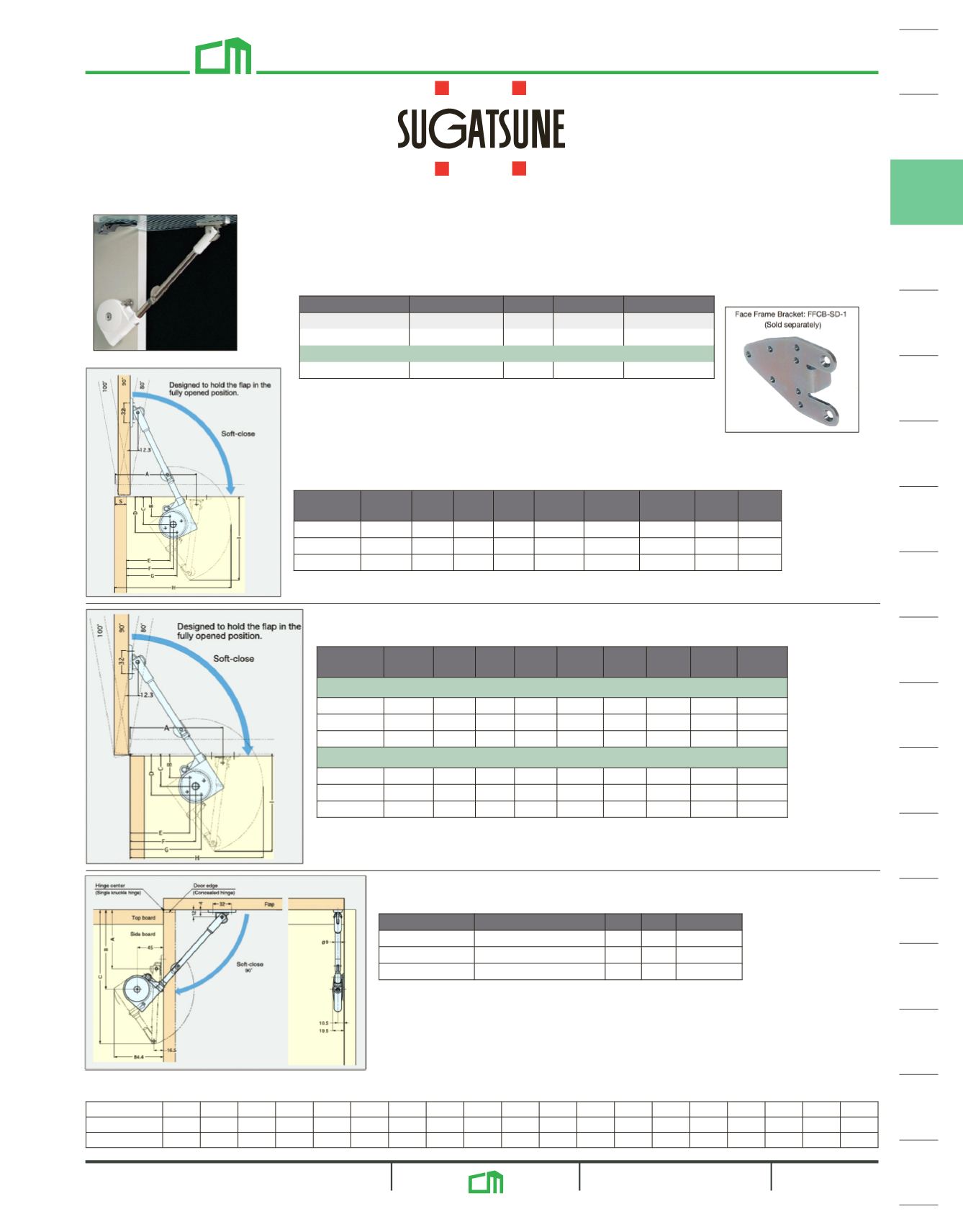

Charles McMurray Co. 2023 Catalog

329 / 1645

Upward-Opening Flap
Opening
Angle A B C D E F G H I
80° 141 319 45 58.1 98.2-S 103.5-S 108.8-S 197.5 134.8
90° 132.5 32.3 45 57.7 88.7-S 95-S 101.3-S 189 134.8
100° 126.5 32.9 45 57.1 81.2-S 88.5-S 95.8-S 182.5 134.8
S=Coverage
Opening
Angle A B C D E F G H I
Inset Type
80° 129 31.7 45 58.3 86.7 91.5 96.3 185.5 134.8
90° 118.5 32 45 58 75.3 81 86.7 175 134.8
100° 111 32.5 45 57.5 67 73.5 80 167.5 134.8
Overlay Type
80° 138.5 32.6 45 57.4 94.1 101 107.9 195 134.8
90° 128.5 33.2 45 56.8 83.1 91 98.9 185 134.8
100° 121.5 33.9 45 56.1 75.2 84 92.8 178 134.8
S=Coverage
Single Knuckle (Continuous/Piano) Hinge
Concealed Hinge
Hinge Type Coverage A B C
Concealed Full Overlay (3/4") 108 143 232
Single Overlay 100 135 233
Knuckle inset 97 132 220
Soft-Down Stays (SDS) for Upward-Opening Flap Door
Adjustable Angle, 80°, 90° or 100°
Downward or Upward
For use with concealed, piano or butt hinges. Stays in the fully opened position and securely
latches when closed. Non-handed. Recommended door thickness: 20mm (25/32").
Item No. Plastic Color Box List Ea. List Ea. 20
Black 20 $47.60 $38.86
White 20 $47.60 $38.86
Face Frame Bracket - sold per each
Bracket 30 $11.92 $9.92
Door Height 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
Min. 17.5 15.6 14.0 12.7 11.7 10.8 10.0 9.3 8.8 8.2 7.8 7.4 7.0 6.7 6.4 6.1 5.8 5.6 5.4
Max. 30.0 26.7 24.0 21.8 20.0 18.5 17.1 16.0 15.0 14.1 13.3 12.6 12.0 11.4 10.9 10.4 10.0 9.6 9.2
Door Weight Range Table (per pair, in lbs.)
