Charles McMurray Co. 2023 Catalog

1101a / 1645

5mm x 36mm (Wood thickness 1/2"+).
For use with LDE900BP-MINI.
Item No. Box List Ea.
List Ea.
Full Box
2000 $0.38 $0.32
LD8005 Spring Pin

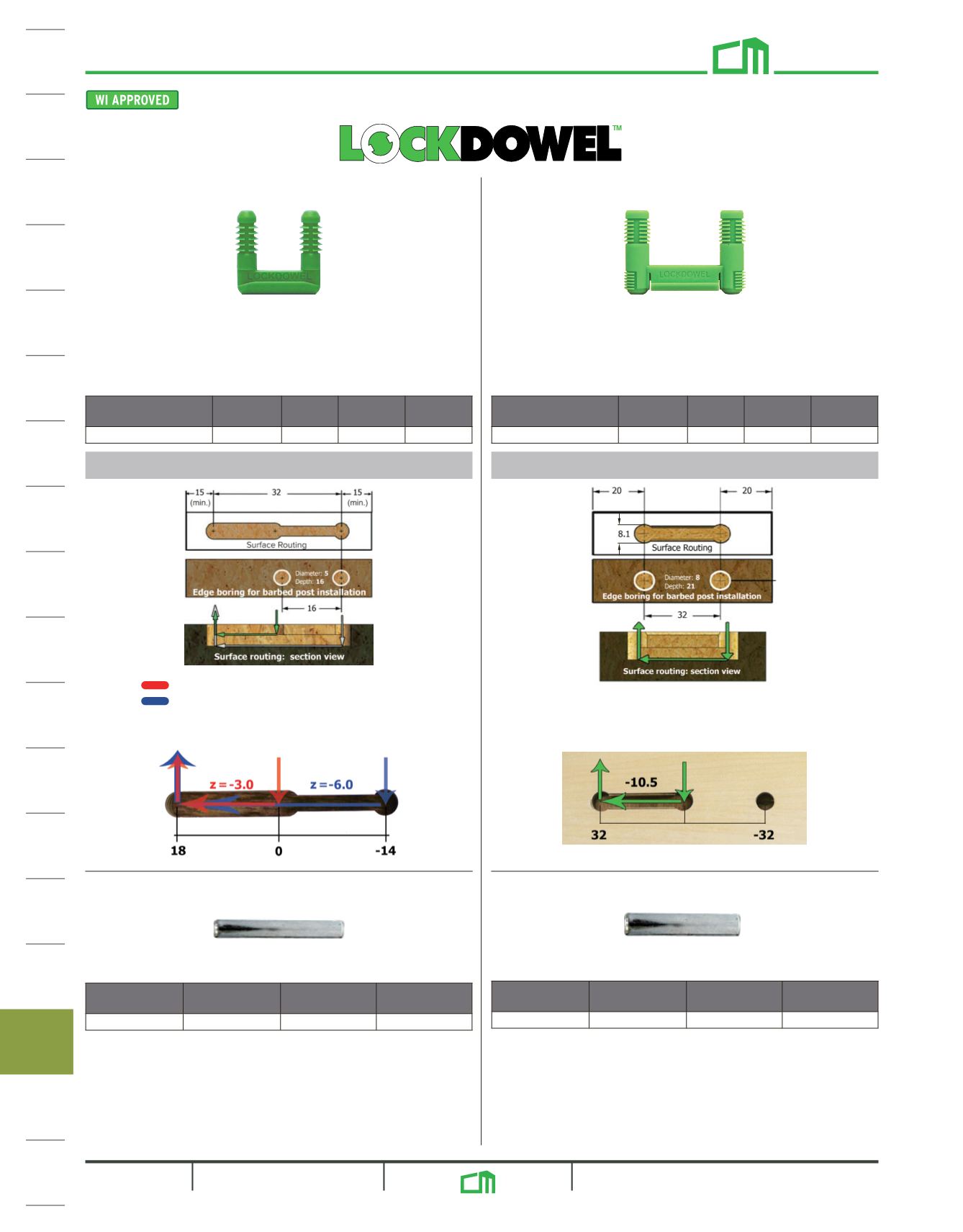

Barbed Channel Lock Removable Joints Barbed H-Clip Permanent Joints
Routing Instructions Routing Instructions
Plunge cut: Z: -3.0 Slot Cut: X: 0 to 18
Plunge cut: Z: -6.0 Key Slot: X: -14 to 18
(Allowable depth range: -6.0 to -6.3) Plunge cut: Z: -10.5 Slot Cut: X: 32
Retract: Z: 10.5
(Allowable depth range: -10.5 to -10.85) Route RED path first, then route BLUE path.
• Pull force: 70+ lbs.
• Sheer force: over 50 lbs.
• Drilling: 5 mm with 16 mm spacing
• For 1/2" thick material
• Pull force: 100+ lbs.
• Sheer force: over 100 lbs.
• Drilling: 8 mm with 32 mm spacing
• For 5/8"-3/4" thick material
03/23 04/24
Requires CNC routing capability and edge boring machine.
Item No. Material Box List Ea.
List Ea.
Full Box
Nylon 2000 $0.90 $0.78
Requires CNC routing capability and edge boring machine.
Item No. Material Box List Ea.
List Ea.
Full Box
Nylon 2000 $1.24 $1.06
8mm x 40mm (Wood thickness 5/8"+).
For use with LDE900/910BP & 900BM.
Item No. Box List Ea.
List Ea.
Full Box
2000 $0.42 $0.36
LD8002 Spring Pin
