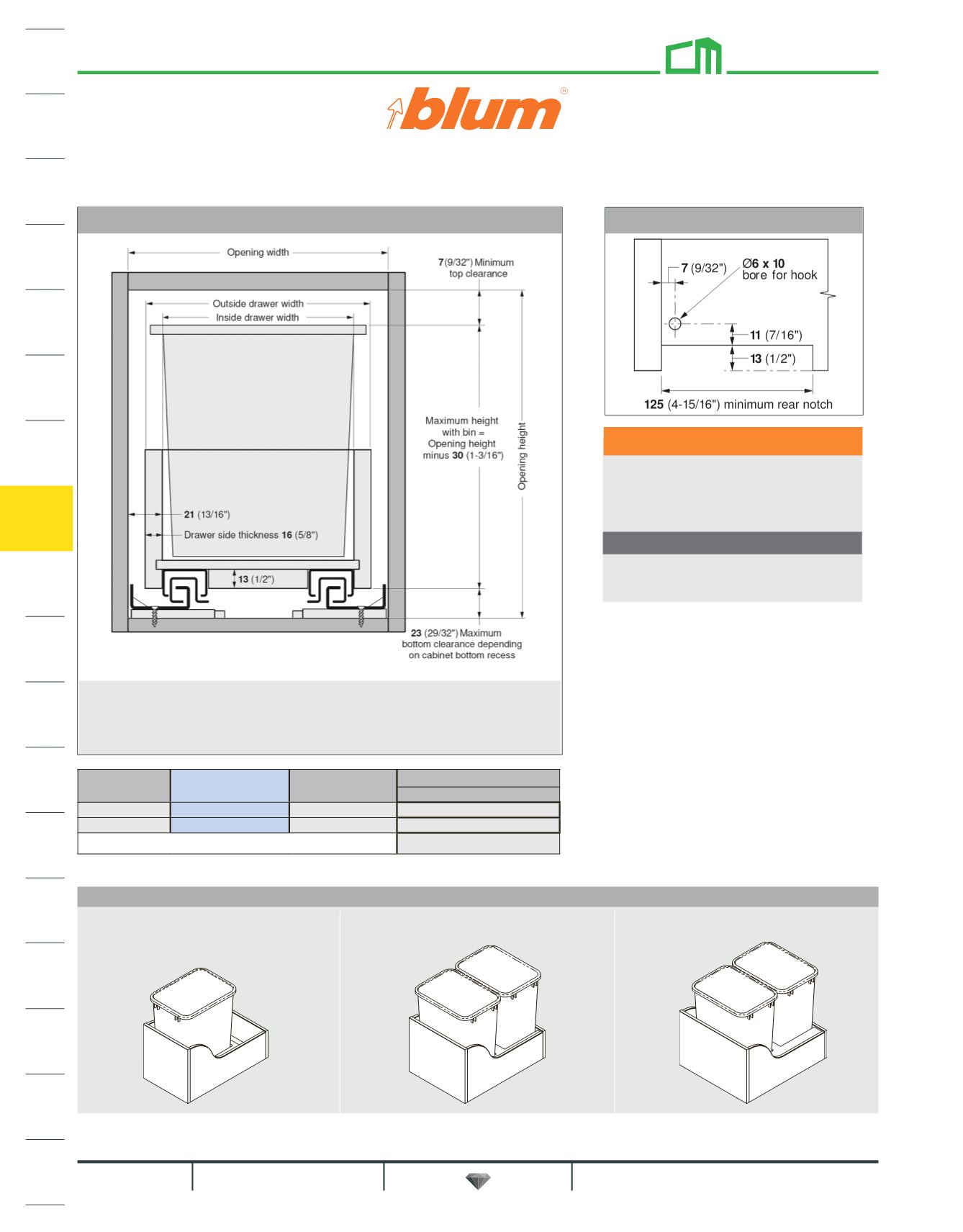

Charles McMurray Co. 2021 Catalog

678 / 1590

Item No. Min. Inside Cabinet
Opening Width
Inside Drawer
Width
For Drawer Side Thickness
16 (5/8")
381 (15") 339 (13-11/32") 371 (14-19/32")
457 (18") 415 (16-11/32") 447 (17-19/32")
NOTE: Drawer length is 533 (21") for all sets. Outside Drawer Width
Front View Drawer Back Preparation
Important!
Bin width and height must be considered
when designing your cabinet and drawer.
See diagram to the left.
Minimum Inside Cabinet Depth
With SERVO-DRIVE 577 (22-23/32")
Without SERVO-DRIVE 564 (22-7/32")
MOVENTO Waste/Recycle Set with SERVO-DRIVE Capability
Drawer & Cabinet Specifications
Recommended bin configurations
15" wide cabinet - one bin 18" wide cabinet - two bins 21"widecabinet-twobins
Accommodates a wide range of standard bin sizes.
NOTE: Detailed drawings of recommended drawer box specifications are available at
NOTE: Drawer side material thickness may vary. Precise measurement of drawer side
material thickness should be usedwhen calculating outside drawer width using the table
below. Inside drawer width must equal opening width minus 42 (1-21/32") for
MOVENTO to align and function optimally.
