417 (16-13/32")
45
(1-25/32")
37.5
(1-15/32")
559 (22")
minimum inside cabinet depth
4 (5/32")
Z
37.5
(1-15/32")
centerline of cabinet
Bin width and height must be considered
when designing your cabinet (see the
diagram on the left).
Drawer and cabinet specifications
Important
minimum top
clearance
6 (1/4")
16 (5/8") maximum
bottom clearance depending
on cabinet bottom recess
opening width
opening height
min. opening
= bin height
+ 38mm (1-1/2”)
16 (5/8")
96
(3-25/32")
64
(2-17/32")
32
(1-1/4")
Y + overlay
X
X = 0

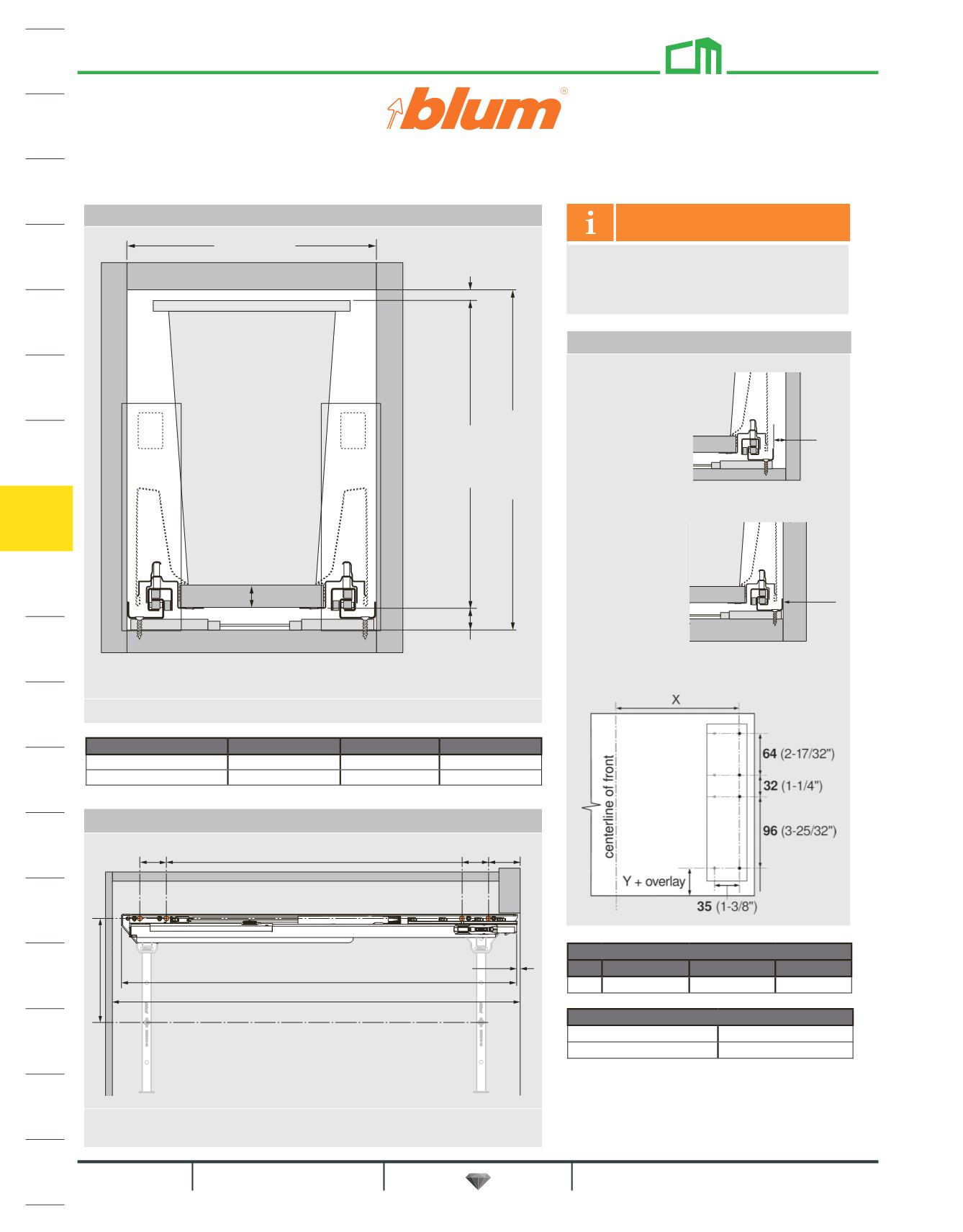

TANDEMBOX Waste/Recycle Set
Front View
NOTE: Minimum opening height without bin = 233 (9-3/16")
Waste/Recycle Set 12WH35 15WH35 18WH35
Z 146.5 (5-25/32") 184.5 (7-1/4") 222.5 (8-3/4")
Min. Opening Width 305 (12") 381 (15") 457 (18")
Set Mounting Specifications - top view
NOTE: Dots indicate pre-mounted screw locations. All four are required to meet
specified load capacities
Drawer Front Attachment
Typical panel
Typical face frame
Cabinet bottom recess
6 (1/4") 3 (1/8") Flush
Y 16 (5/8") 19 (3/4") 22 (7/8")
Minimum inside cabinet depth
With SERVO-DRIVE 574 (22-19/32")
Without SERVO-DRIVE 569 (22-13/32")
Z = distance from center line of cabinet opening width
to cabinet member mounting holes
Recommended bin: 35qt.
Size: 14-1/4" x 9-3/16" x 17-1/2"H
min. opening
with bin
= bin height
+ 38 mm (1-1/2")
NOTE: A retainer or wood block should be added to the
Tandembox drawer to secure the bins & keep them from
pressing against the drawer front during daily operation.
