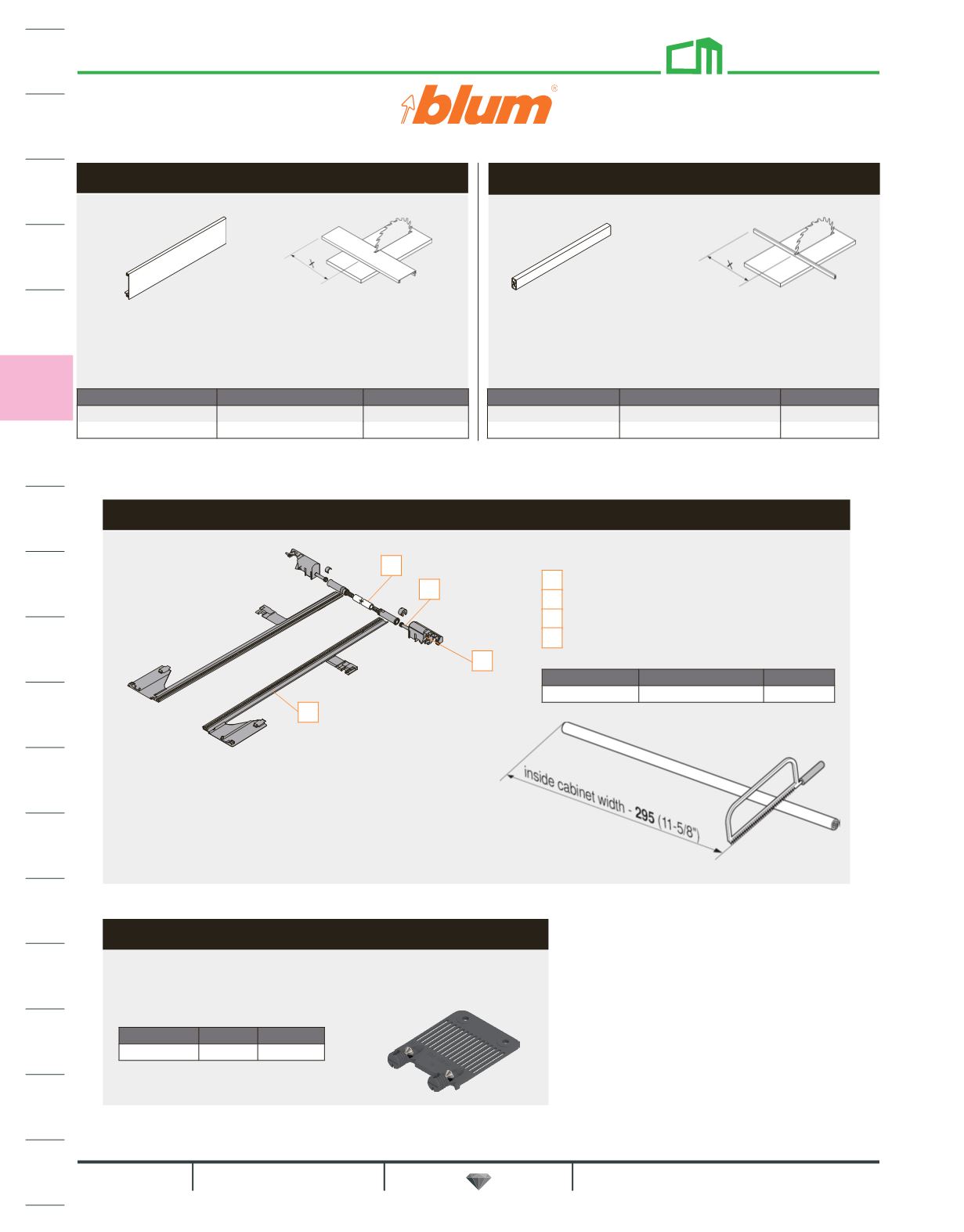

Charles McMurray Co. 2021 Catalog

454 / 1590

08/22
Lateral Stabilizer Bracket
Front Piece for Interior Roll-Outs
3
1
2
4
Set includes:
1 Linkage rod, 1400 (55-1/8") cut-to-size
2 Pinion gears (qty 2)
3 Rear brackets, left and right
4 Gear racks, left and right
Item No. Runner Length List Set
450-600 (18"-24") $79.70
Lateral Stabilizer Set
Length: 1043 mm (41-1/16")
Cut-to-size using a metal cutting blade.
X=inside cabinet width minus 126 (5")
Height: 96mm (sits flush with top of M height drawers)
Item No. Finish List Ea.
Brushed Nickel $131.94
Gray $55.42
Cross Gallery Rail for Interior Roll-Outs
Item No. Finish List Ea.
Brushed Nickel $89.20
Gray $25.50
Length: 1080 mm (42-1/2")
Cut-to-size using a metal cutting blade.
X=inside cabinet width minus 90 (3-1/2")
LEGRABOX Components
• Used for stabilizing wide drawers and/or tall drawer fronts
• Reinforces the connection between the drawer bottom & the front
• One required per drawer, center on drawer bottom
Item No. Finish List Ea.
Gray $6.50
Linkage rod specifications:
Length = inside cabinet width minus 295 (11-5/8")
Maximum inside cabinet width 1400 (55-1/8")
Recommended for cabinet widths from 900-1400 mm (35-7/16" - 55-1/8")
Minimum space requirement (depth) = actual cabinet profile length +15 (19/32")
DOOR
HARDWARE
TOOLS FASTENERS SHOP &
FINISHING
ABRASIVES LACQUERS &
FINISHES
ADHESIVES FURNITURE
HARDWARE
EDGING &
DECOR.WOOD
SHELF &CLOSET
ORGANIZERSKITCH./BATH
LIGHTING SLIDES
DOORS &DRAWERS
LOCKS &CATCHES
AVENTOS &
LIFTS
CABINETHINGES
DECORATIVEHARDWARE
SLIDES
800.533.0533 2021 1946 454 Prices subject to change without notice.
