MC8500 Undermount Slides
Soft-Close, Full Extension
100 lb. Static Capacity, 75 lb. Dynamic Capacity
Sold per pair. Order screws separately. Rear mounting
brackets available by special order.
Item No. Length Box List Pair List Pair 6
18" 6 pr $41.40 $36.96
21" 6 pr $43.94 $39.22
Item No. Description Box List
MCFPT587NI-1C #7 x 5/8" Screws 1c $7.94bx

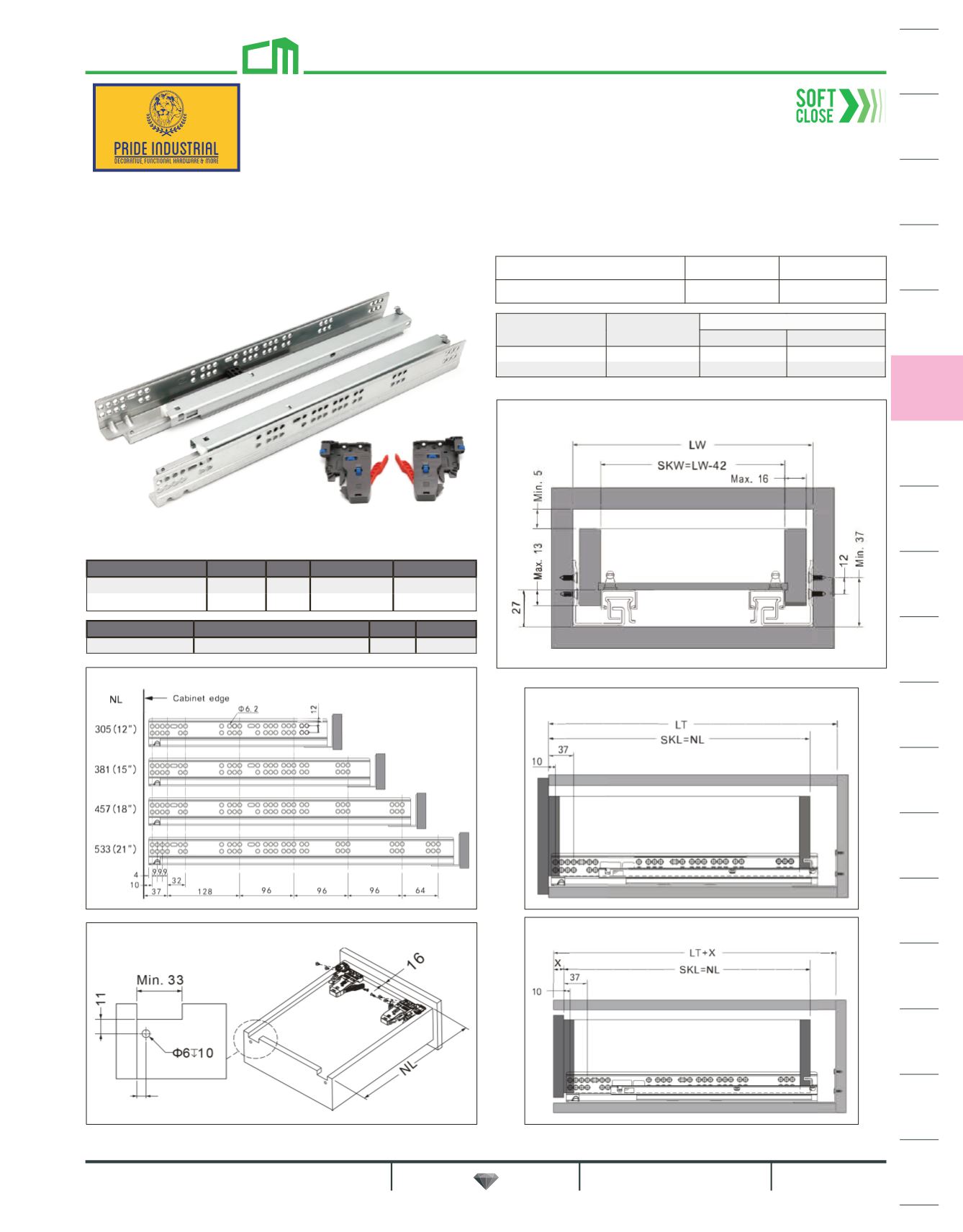

Installation Dimensions
Standard Drawer
Inner Drawer
LT=internal cabinet depth NL=nominal slide length SKW=internal drawer width
Drawer Size & Boring
Hole Pattern
Item No. Drawer Length
Internal Cabinet Depth
Maximum Minimum
457 (18") 526 (20-3/4") 481 (18-15/16")
533 (21") 602 (23-3/4") 557 (21-15/16")
• Silent system guarantees smooth run without noise
• 3D locking devices (included) allow for 6-way adjustment:
Height adjustment = +3 mm
Side to side adjustment = ± 2 mm
Depth adjustment = +4 mm
04/22
Outside Drawer Width
Drawer side thickness 5/8" (16 mm) 1/2" (13 mm)
Inside cabinet width deduction 3/8" (10 mm) 5/8" (16 mm)
