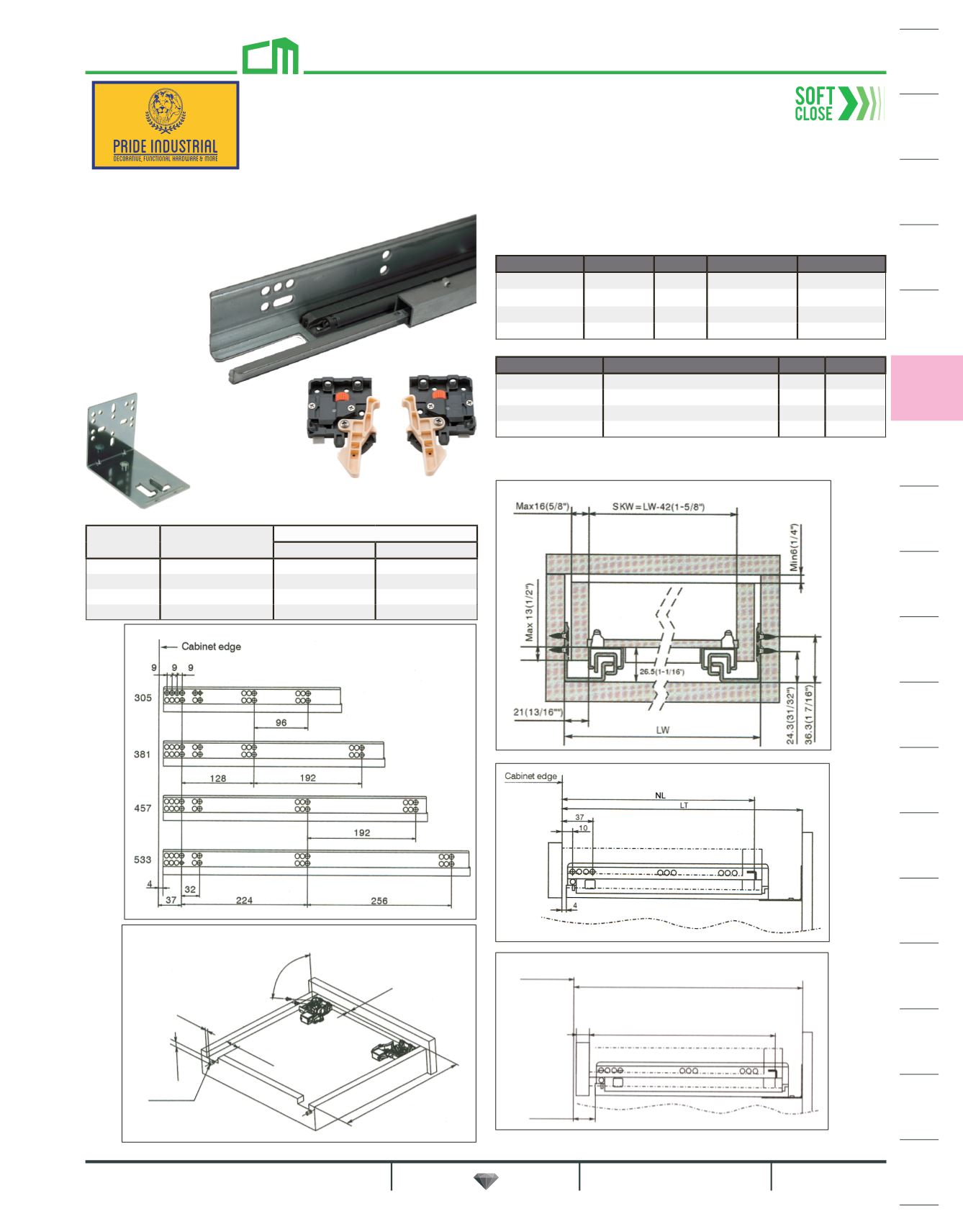

Charles McMurray Co. 2021 Catalog

437 / 1590

Undermount Slides
Soft-Close, Full Extension
85 lb. Capacity
Slides include locking devices. Order screws and rearmount-
ing brackets separately. Sold per pair.
Item No. Length Box List Pair List Pair 6
12" 6 pr $39.50 $35.10
15" 6 pr $40.30 $35.92
18" 6 pr $40.24 $35.92
21" 6 pr $41.68 $37.22
Item No. Description Box List
Locking Device 50pr $5.02pr
Rear Mounting Bracket 100pr $3.16pr
Screws for slides #7 x 5/8" FHPH 1c $7.94bx
Screws for clips #6 x 1/2" TH 10c $11.48c
Installation Dimensions
LW=internal cabinet width SKW=internal drawer width
Standard Drawer
cabinet edge
Inner Drawer
X+5 (3/16")
LT min = cabinet member length +X+8
X NL
NL=nominal slide length LT=internal cabinet depth
max 16 (5/8")
75°
7 (9/32")
33 (1-5/16")
2-Ø6
deep 10 mm
2-Ø1/4"
deep 3/8"
Drawer Size & Boring
Hole Pattern
Locking Devices
Rear Mounting Bracket
Item No.
Cabinet
Member Length
Internal Cabinet Depth
Maximum Minimum
317 (12-1/2") 369 (14-9/16" 326 (12-7/8")
394 (15-1/2") 446 (17-9/16") 403 (15-7/8")
470 (18-1/2") 522 (20-9/16") 479 (18-7/8")
546 (21-1/2") 598 (23-9/16") 555 (21-7/8")
length
• Silent system guarantees smooth run without noise
• Drawer height adjustment
• Includes locking devices (clips)
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING & DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
SLIDES
800.533.0533 2021 1946 437 Prices subject to change without notice.
