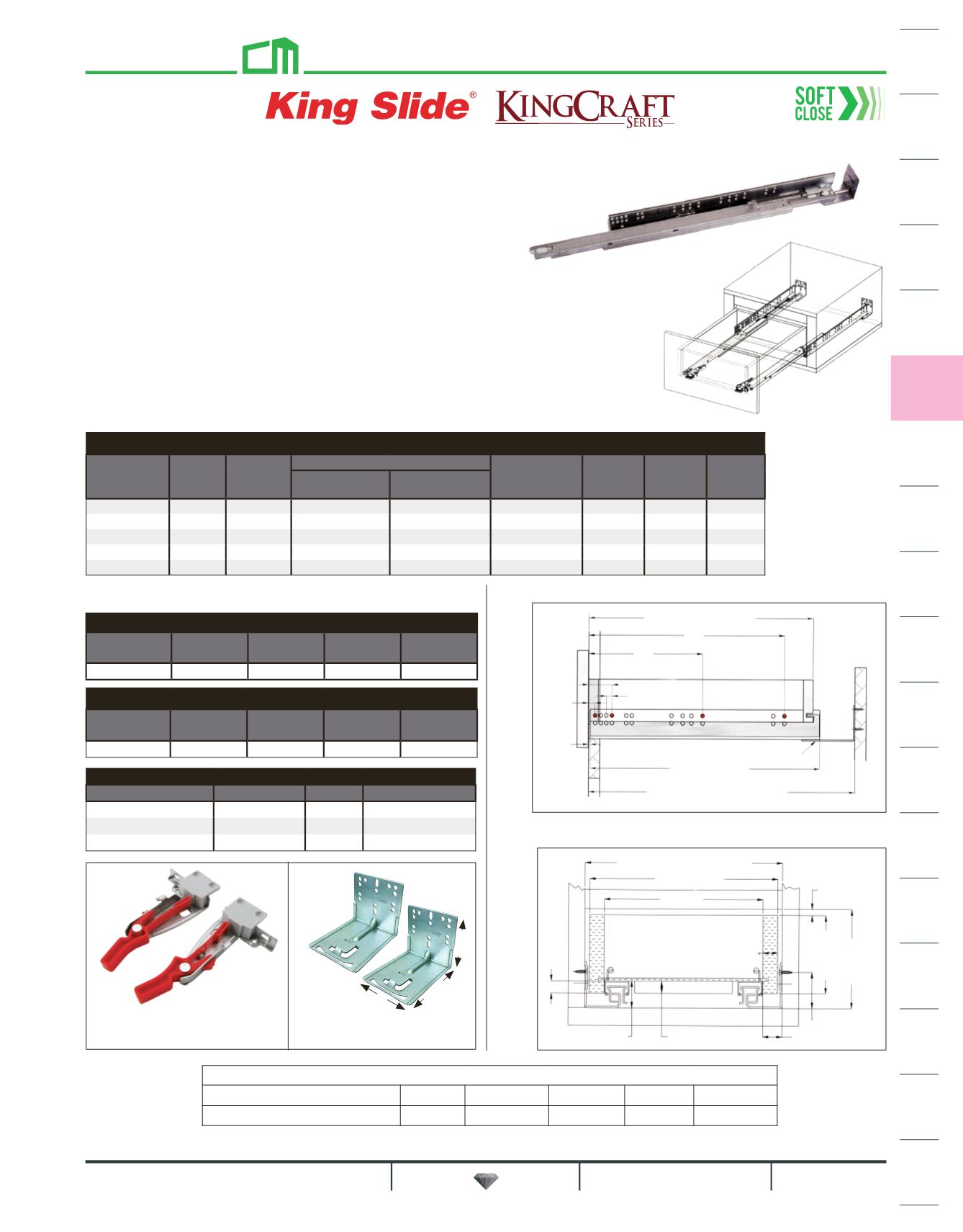

Charles McMurray Co. 2021 Catalog

435 / 1590

Concealed Slide with Silent Soft-Closing
Full Extension, 75 lb. Capacity
• Under mount with Full Extension travel length
• Ultra smooth gliding motion with high rigidity and stability design
• Enhanced silent soft-closing feature with light opening force
• Durable damping system with fast response capability
• Tool-less drawer height adjustment from the drawer front with 3.5 mm range
• Effortless assembly and removal of drawer with front release lever
• High installation allowance for drawer width: +0/-2 mm, and for drawer depth +1/-1 mm
• For face frame cabinets, maximum drawer side thickness of 5/8"
• Made of galvanized steel
drawer length
B
A
profile length
cabinet depth with bracket
bracket
37 (1-7/16")
9 (11/32")
4
(5/32")
10
(3/8")
internal cabinet width (W)
drawer width
W - 42+0
-2
min 6
13 (1/2") min. 27.5
max. 14 (9/16")
21 (13/16")
37 (1-7/16")
opening
drawer height
max=opening -20 mm (13/16")
Space Requirement
Installation Specification
Example: For 21" inside cabinet width and a 5/8" thick drawer: 21" minus 3/8" = 20-5/8" drawer width
Formula for calculating outside drawer width
For drawer side thickness 16 (5/8") 15 (19/32") 14 (9/16") 13 (1/2") 12 (15/32")
Deduct from inside cabinet width 10 (3/8") 12 (15/32") 14 (9/16") 16 (5/8") 18 (23/32")
6 pair per box. Order locking devices, rear brackets and
screws separately.
Slides Only
Item No.
Drawer
Length
Overall
Cabinet
Depth
Cabinet Depth w/Bracket
Profile
Length List Pr.
List Pair
6
List Pair
48 Max. Min.
9" 12" 299 (11-25/32") 266 (10-15/32") 256 (10-1/16") $88.72 $79.22 $75.20
12" 15" 369 (14-9/16") 326 (12-7/8") 317 (12-1/2") $59.92 $52.72 $49.74
15" 18" 446 (17-9/16") 403 (15-1/2") 394 (15-1/2") $67.60 $63.54 $56.74
18" 21" 522 (20-9/16") 479 (18-7/8") 470 (18-1/2") $64.12 $57.24 $54.34
21" 24" 598 (23-9/16") 555 (21-7/8") 546 (21-1/2") $65.40 $58.40 $55.42
* 9" slide includes locking devices and rear brackets.
Locking Devices - sold per pair.
Item No. Box List Pair
List Pair
100
List Pair
270
270 pr. $2.65 $2.30 $1.98
Rear Brackets - sold per pair.
Item No. Box List Pair
List Pair
100
List Pair
270
270 pr. $2.90 $2.61 $2.19
Screws - sold per box
No. Description Box List Box
#7 x 5/8" 1 c $7.94
#7 x 5/8" 5 c $26.36
#7 x 5/8" 10 c $40.66
No.
Locking Devices, sold per pair.
No.
Rear Brackets, sold per pair.
2-1/4"
2-3/4" 2"
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING & DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
SLIDES
800.533.0533 2021 1946 435 Prices subject to change without notice.
