Charles McMurray Co. 2021 Catalog

1288 / 1590

Specifications
Dimensions 518
A 1-1/4"
B 23-64"
C 4-5/8"
D 51/64"
E 1/4"
F 2-39/64"
G 5/64"
H 1-29/32"
I 21/64"
J 13/32"
Min.WoodThickness 1-3/4"
Wood Screw Size #10x1-1/2"
Machine Screw Size #10-24x1"

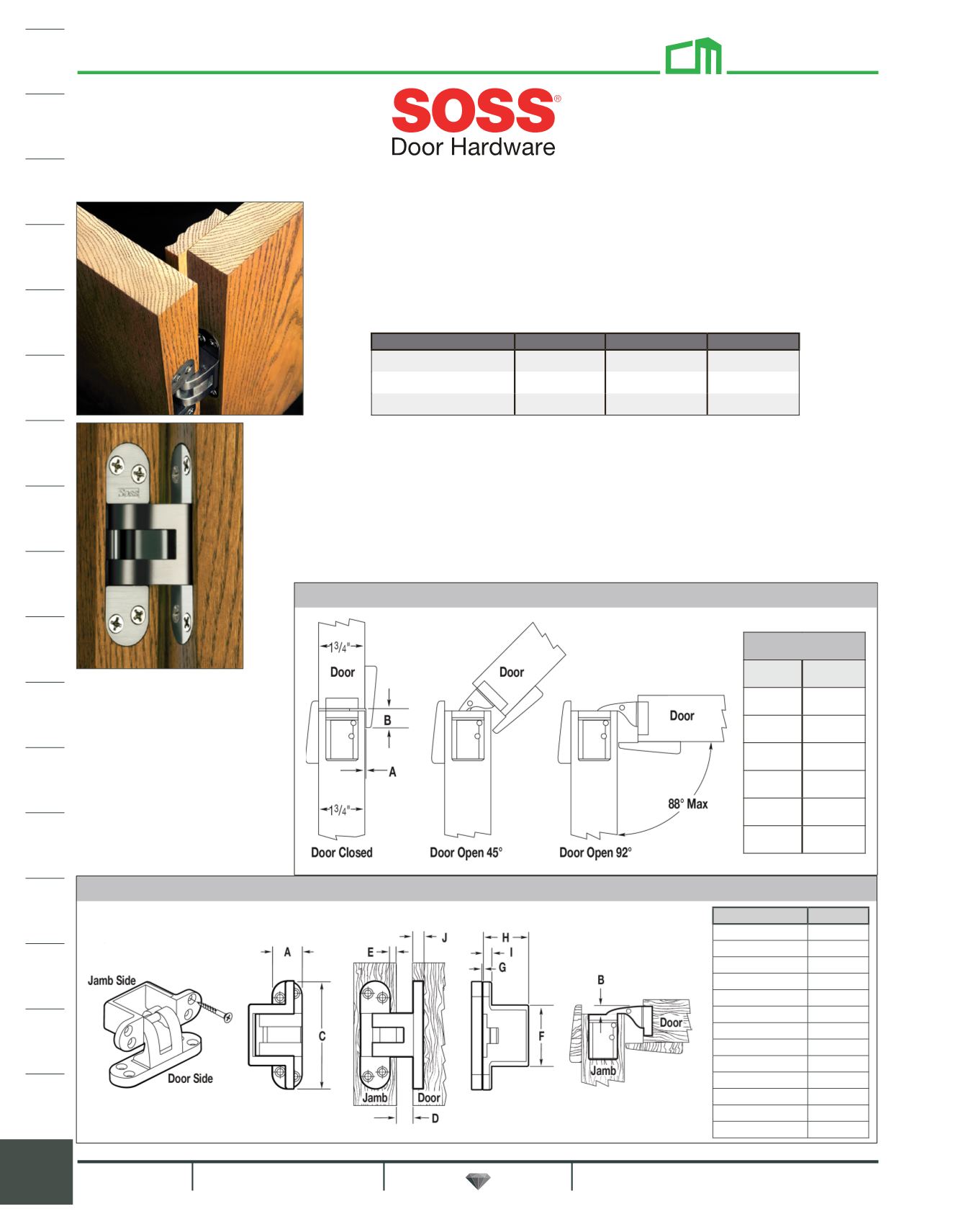

SS518 Wide Throw Wrap Around Invisible Hinges
• Hinge allows your door to be completely concealed from both sides
• No visible reveal between the door and frame
• Designed to stop at 92°
• Add molding and trim to doors and wall for a truly seamless look
• Minimum door thickness 1-3/4"
Open Clearance Detail
Offset Table
A B
1/64" 19/32"
1/32" 41/64"
3/64" 11/16"
1/16" 23/32"
5/64" 49/64"
3/32" 25/32"
1 each per box with wood screws. Sold per each.
Item No. Height (C) Finish List Ea.
4-5/8" Satin Nickel $548.72
4-5/8" Black $539.08
4-5/8" Satin Chrome $530.64
