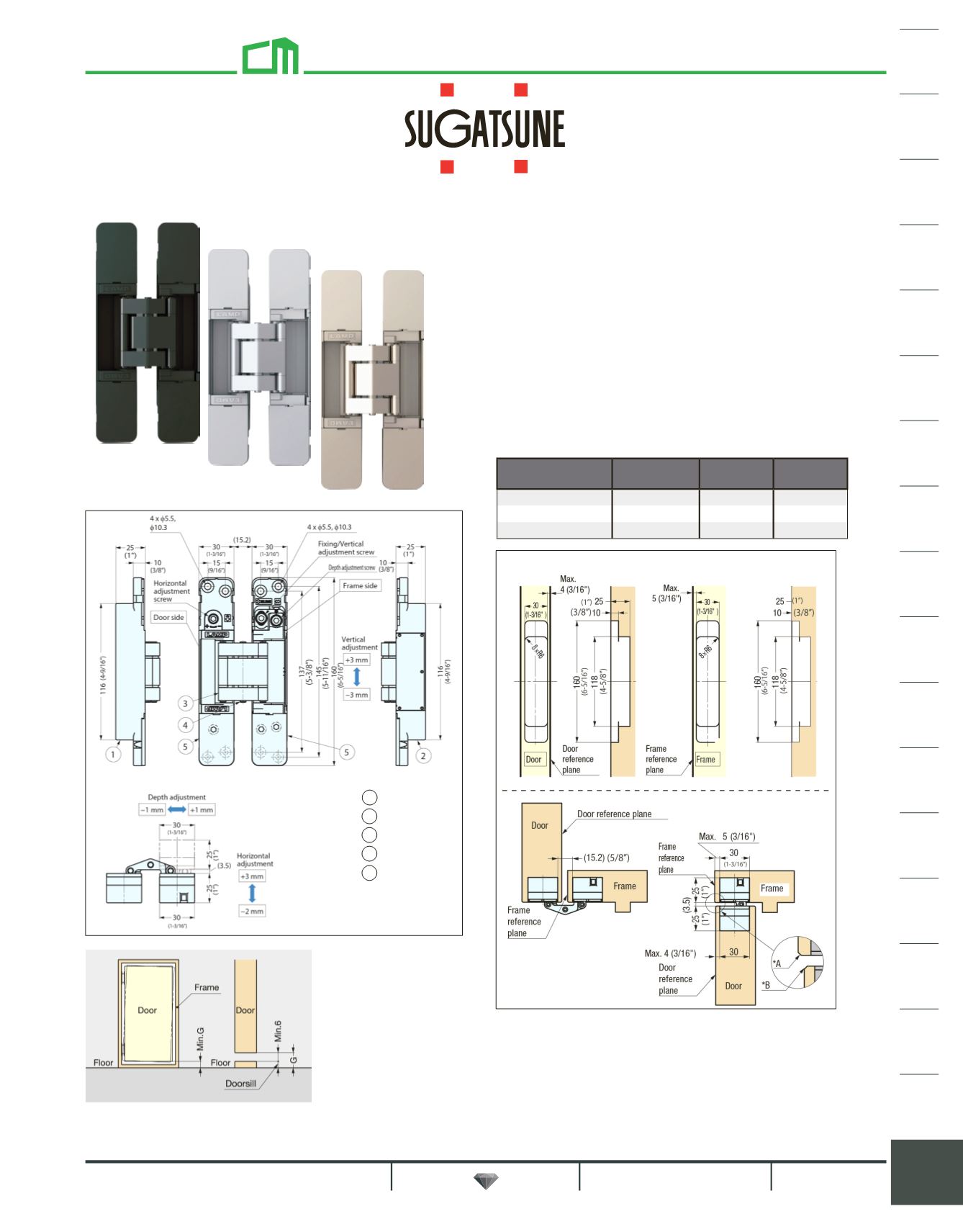

HES3D-E160 Series
3-Way Adjustable Concealed Hinges
• 3-way adjustment allows vertical, horizontal, and depth adjustment
after hinge installation
• Easy installation with symmetrical leaves and lift-off feature
• Covers hide all screw heads for a clean appearance
• Min. Door Thickness: 1-3/8"
• Max. Door Size: 94-1/2"H × 35-7/16"W
• Max. Door Weight: 121 lbs./2 pcs., 154 lbs./3 pcs.
• Matte black, dull chrome or dull nickel finish
• 6-5/16"H x 2-15/16"W
To determine the door and frame dimension,
(G) must be taken into account.
G = Min. 6 mm + doorsill
Bore Dimensions
Dull Chrome (DC)
Dull Nickel (DN)
Matte Black (BL) 2 each per box with steel flat head screws. Sold per each.
Item No. Finish List Ea.
List Ea.
2
Matte Black $206.16 $174.72
Dull Chrome $206.16 $174.72
Dull Nickel $206.16 $174.72
1 Body
2 Base Frame
3 Arm
4 Pin
5 Cover
