1282b / 1590

• Used in door frames made out of hollow metal or wood in flush
interior doors
• Maintenance-free slide bearings
• Suitable for left and right-hand applications
• UL listed for 20 minute rated fire doors (max. door size: 4'x8' for
a single door, 8'x8' for a pair of doors)
• 6-5/16"H x 2-7/8"W

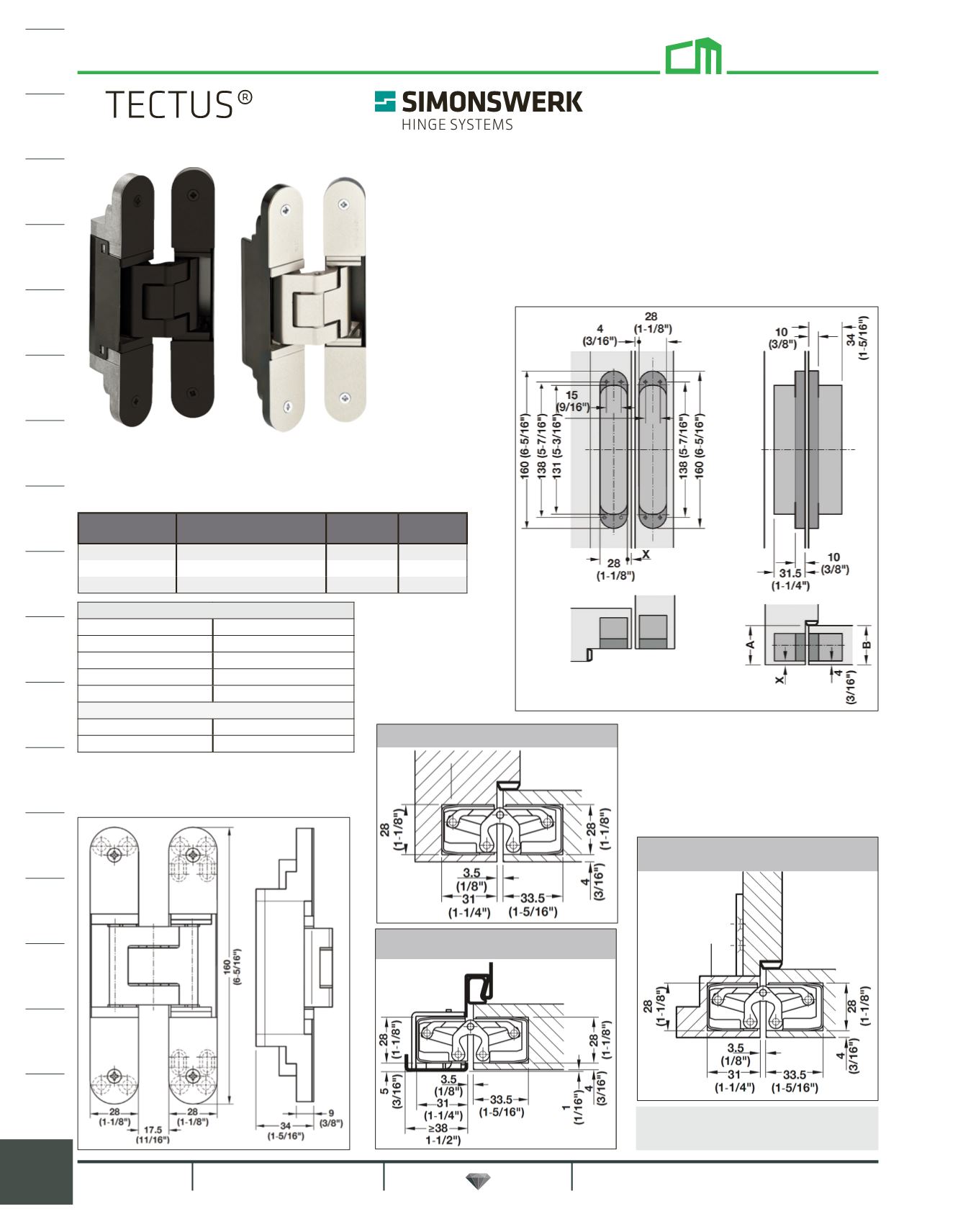

TE340 TECTUS Hinges
Specifications
Door weight 176 lbs. (w/2 hinges)
Door thickness 40 mm (1-9/16")
Opening angle 180º
Router bit 24 mm (15/16")
Router guide 30 mm (1-3/16")
Adjustment
Height and Width ± 3 mm (1/8")
Depth ± 1.0 mm (1/16")
Item No Finish List Ea.
List Ea.
4
Black $261.04 $228.40
Satin Chrome $268.14 $234.62
F2 (Satin Nickel Look) $209.18 $183.04
Mounted to a wood door frame
Mounted to a wood door jamb
together with a mounting plate
Mounted to a hollow metal frame
with a receiver element
Milling template for a wood
door frame
NOTE: Mounting plates and receiving
elements available by special order.
Calculation of the milling dimensions:
A = Rabbet depth excluding seal clearance
B = Door thickness
A - B + 3 = Dimension X
The result has to fall between 3 mm (1/8")
and maximum 5 mm (3/16").
For hollow metal frame applications
X = 5 mm (3/16").
Black F2 Finish
(Satin Nickel Look)
NOTE: For doors taller than 96" but under 39" wide,
or for doors wider than 39", install a third hinge 14"
below the centerline of the upper hinge.
