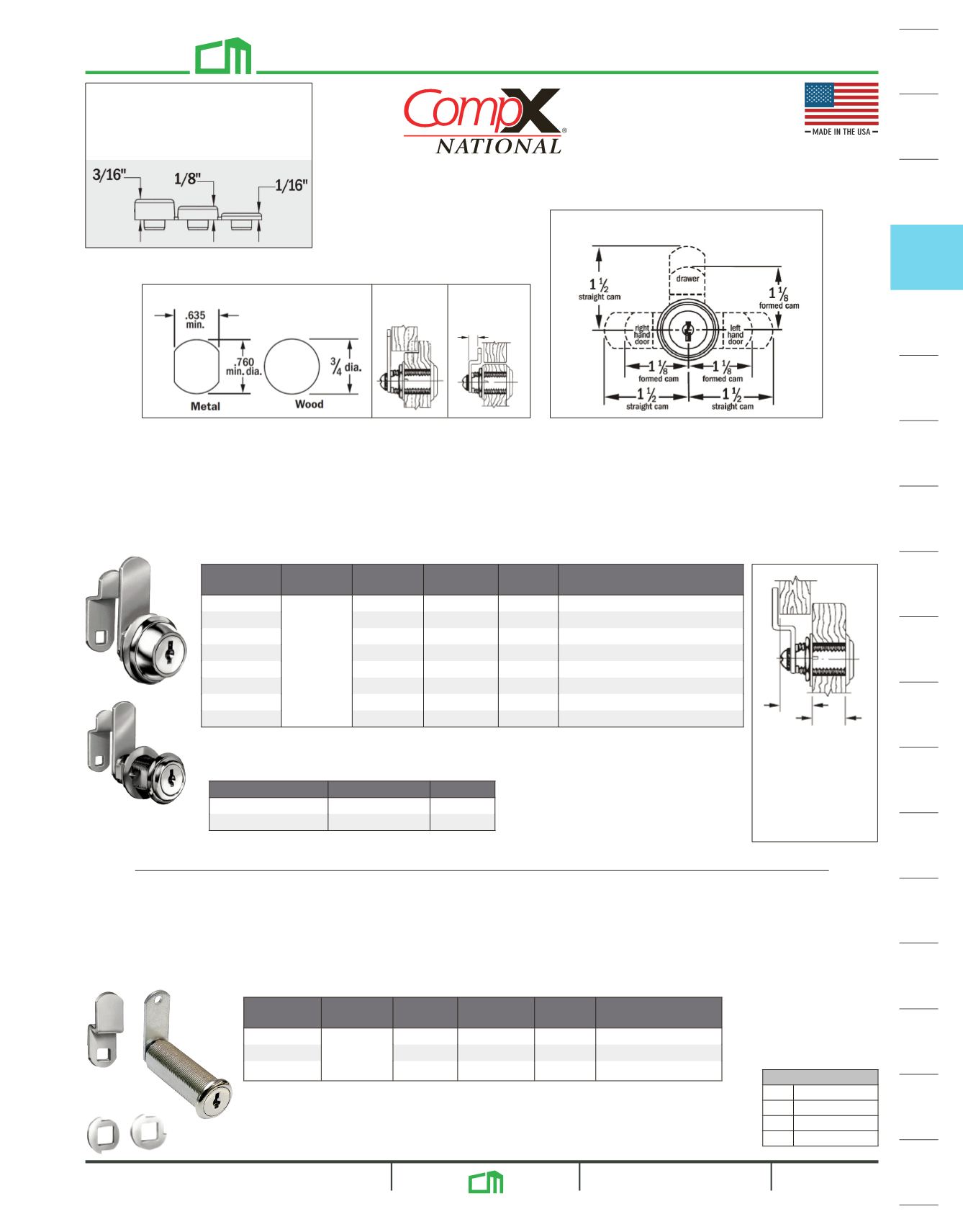

Charles McMurray Co. 2023 Catalog

Disc Tumbler Cylinder Cam Locks

Finishes

3 Bright Brass

4G Antique Brass

14A Bright Nickel

BLK Black

APPLICATIONS

- For drawers, LH or RH doors with lipped/overlay construction (straight cam) or flush construction (formed cam).

For overlay applications, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail.

OPERATION

- 90° cam turn. Key removable in both locked and unlocked positions.

KEYING

- Will key together with all other disc tumbler locks using D8785 key blank (special order). "C" locks are not master-

keyed. For masterkeyed locks order masterkey

(E41A)

separately.

PACKAGING

- Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for

metal) is needed, order C2015-2C separately (special order). 25 locks per box.

APPLICATION

- For drawers, LH or RH doors with lipped/overlay (straight cam), or flush construction (formed cam.) For overlay

application, the combined thickness of front & frame cannot exceed cylinder length. See overlay detail.

OPERATION

- 90° or 180° cam turn. Key removable in both locked and unlocked positions.

KEYING

- Will key together with all other disc tumbler locks using D8785 key blank (special order).

PACKAGING

- Supplied with two keys, trim washer, spur washer for wood, mounting nut, two stop washers and two cams.

If flat washer (for metal) is needed, order C2015-2C (special order). 25 locks per box.

Overlay

The C8053 lock using

the C7014 cam ac-

commodates overlay

construction using a

3/4" thick front and 3/4"

thick frame.

180° 90°

C8060

C8061

C8051

C8052

C8053

C8054

C8055

Locks furnishedwith

cams unassembled.

Item No.

Type of

Mounting

Cylinder

Length

Max. Mat.

Thickness List Ea. Stock Key #s

C8060-14A

Lipped/

Overlay

or Flush

1-3/4" 1-7/16" $20.32 415

C8060-BLK

1-3/4" 1-7/16" $29.62 C415A

C8061-14A

1-13/16" $27.52 346

Cam Dimensions

3/4"

Item No.

Type of

Mounting

Cylinder

Length

Max. Mat.

Thickness List Ea.

Stock Key #s

C8052-14A

Lipped/

Overlay

Flush

5/8"

15/64" $15.20 415

C8054-14A

15/16"

5/8"

$14.66 415

C8053-14A

1-3/16"

7/8"

$14.66 346,390,413,415,420,642,KD

C8053-3

1-3/16"

7/8"

$19.06 346

C8053-4G

1-3/16"

7/8"

$19.06 346,415

C8053-BLK

1-3/16"

7/8"

$22.42 C413A,C415A

C8055-14A

1-7/16" 1-1/8" $15.20 346,413,415

C8055-4G

1-7/16" 1-1/8" $19.06 415

All locks feature

FlexaCam™

Three spacers enclosedwithmost CompX

National threadeddisc tumbler cam locks.

The three thicknesses provide up to 12

different dimensional variations.

Masterkeyed, keyed different

Item No.

Description List Ea.

C8053-14AMKKD

Cam Lock $17.38

E41A

Master Key $10.14

Lipped/

Overlay

Flush

Mounting Holes for All Cam Locks

11/32

CABINET LOCKS & CATCHES

800.533.0533

357

Prices subject to change without notice.
