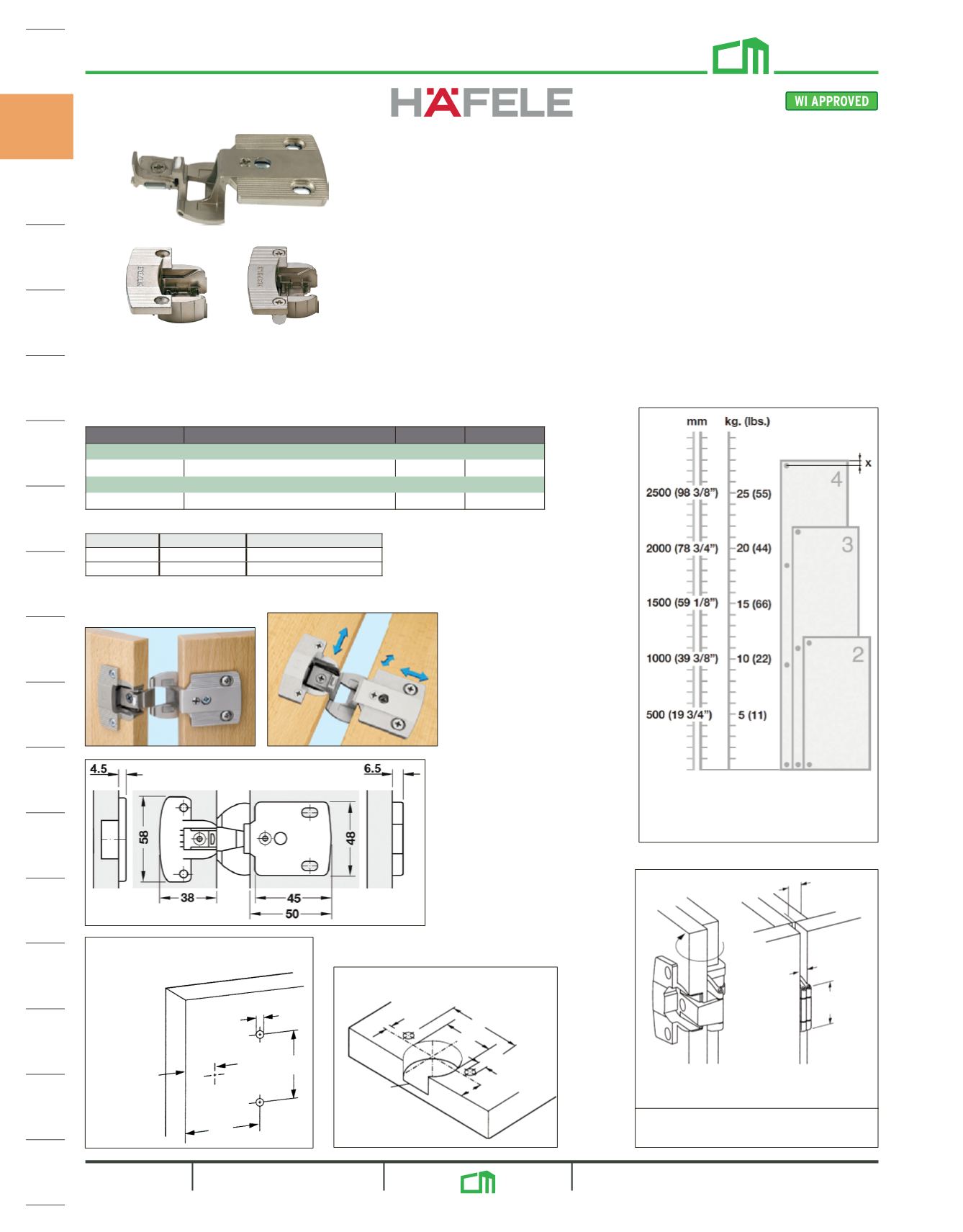

Charles McMurray Co. 2023 Catalog

274 / 1645

Institutional Hinges
Aximat 300 Series
• Sleek, sophisticated design, only 5 mm (3/16") of knuckle is visible
• Hinge arm component available with screw attachment
• Hinge cup component available in press-fit (special order) or screw-mount options
• Arm and cup clip-together, no tools required
• For side panel thickness 19 mm (3/4")
• For door thicknesses up to 21 mm (13/16")
• Integrated catch keeps doors closed, no additional magnetic catches required
• For single cabinets and storage walls
• Available in Twin mounted version, 2 doors can be mounted on a single hinge
on a single side panel (requires 2 cups)
• Matte-nickel finish
• Hinge arm and hinge cup must be ordered separately
Order hinge cups and arms separately. Wood screws are not included.
Item No. Description List Ea. List Ea. 50
Hinge Arm
270° Overlay Screw-On $11.80 $9.58
Hinge Cups
Screw-on $7.84 $6.38
depth
13 mm
9.5 45
35
8
12.5
Drilling pattern for cup
5
32
18.5
37
position of the
safety screw,
for #8 wood
screw
Drilling pattern for side panel
Screws Description For
#8x5/8" PANPH Hinge Arm
#7x5/8" FHPH Hinge Cup & Safety Screw
x = max. 100 mm (4")
Recommended number of Hinges
• Door widths up to 600 mm (23-5/8").
• Doors should not be wider than tall.
3D adjustment
15
(5/8")
2 x 4 mm
33
(1-1/4")
270°
full overlay
19 mm (3/4")
side by side
mounting
Door overlay 15 mm +
knuckle 4 mm = 19 mm (3/4")
Doweled
hinge cup
(available by
special order)
Screw-on
hinge cup
DOOR
